100/105 Series Land Cruiser Awning Brackets

We have been having issues with awning brackets not allowing shipping when in your cart, until we've sorted this we've had to list them as "SOLD OUT" If you'd like to purchase a set with your order please email us, we will add it to your order and send through the remaining balance. Cheers

Awning Brackets – 100 / 105 Series Land Cruiser Roof Rails

These awning brackets have been specifically designed to suit our newly released 100 / 105 Series roof rails, offering strong, clean mounting points for a variety of awning types.

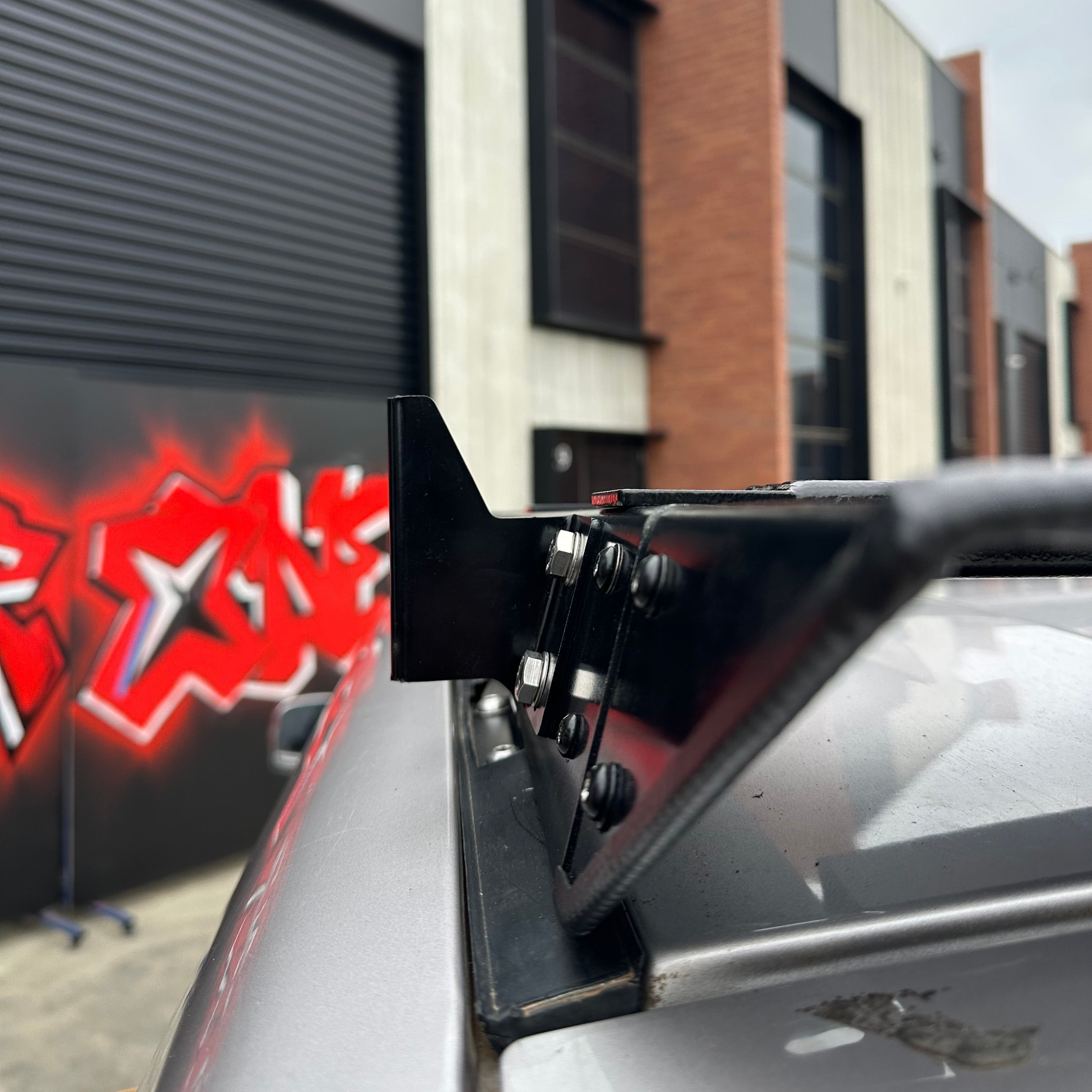

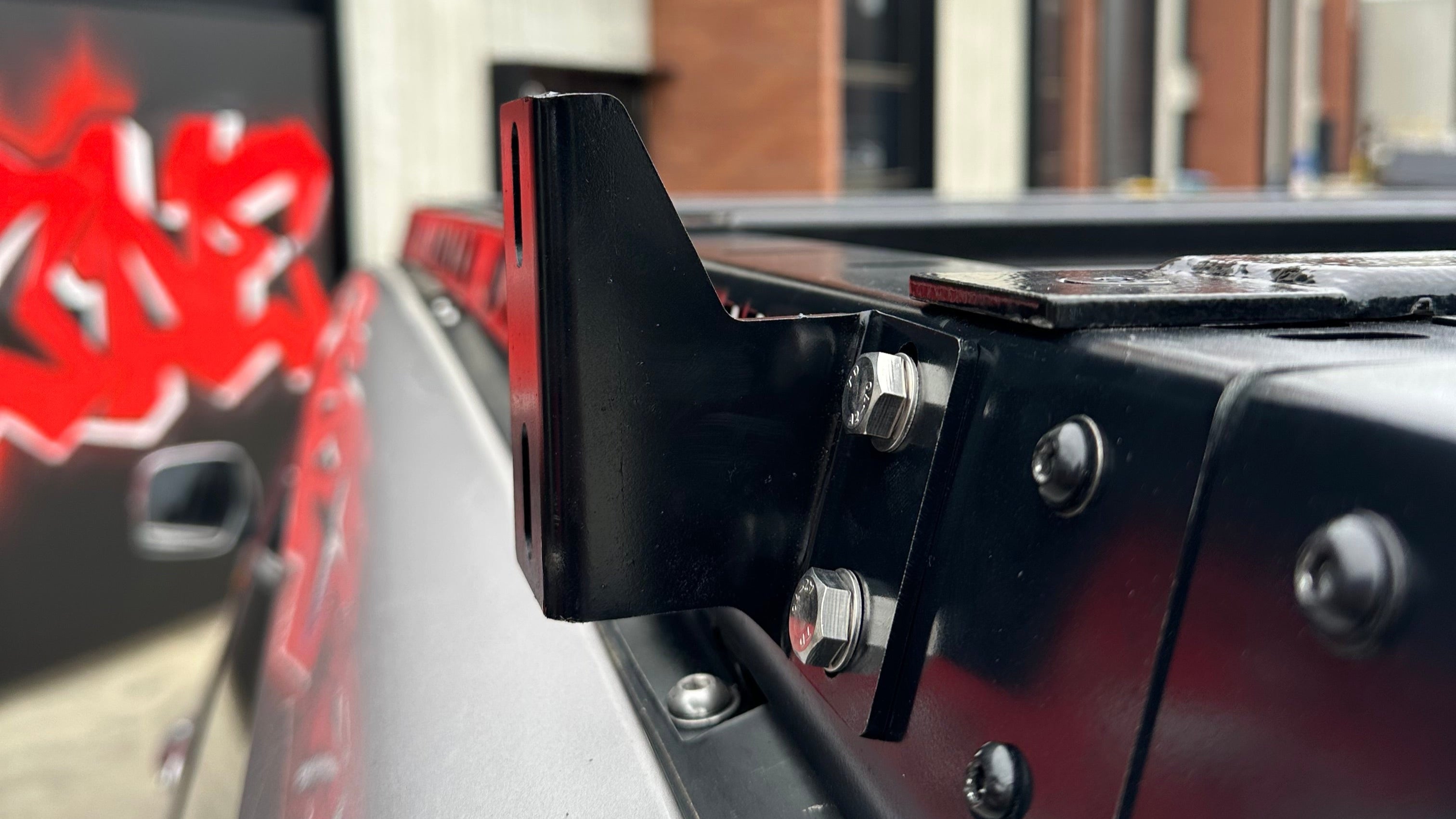

Note: Photos shown are of prototype brackets. Final production units will be laser-cut from 4mm steel, include additional reinforcement, and sit further outward for improved clearance. Each bracket is designed to allow for up to 50mm of clearance above the rail, making them compatible with items mounted on top of your setup.

Bracket Styles Available:

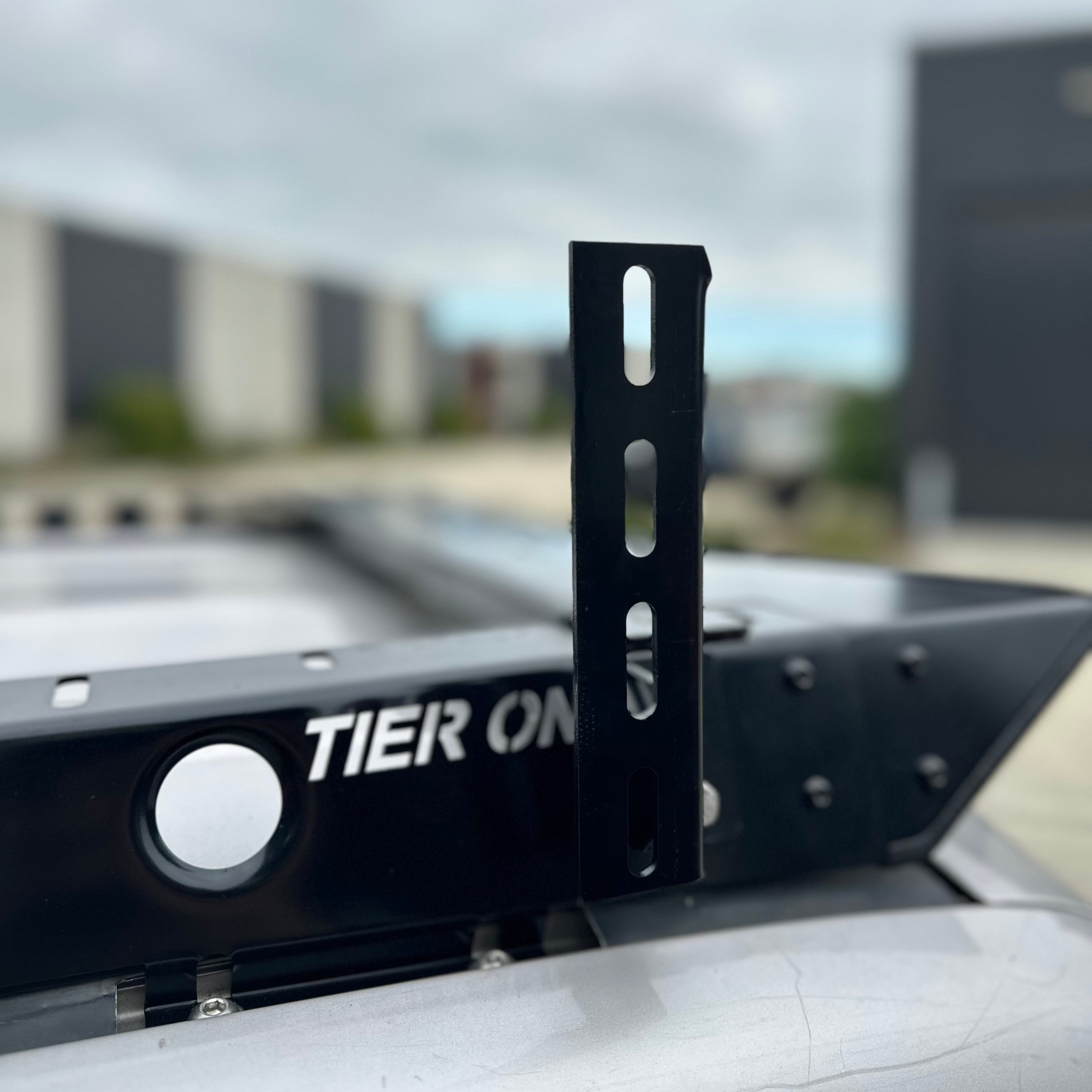

• Style 1: Designed for 270º awnings. suited for awnings under 25kg.

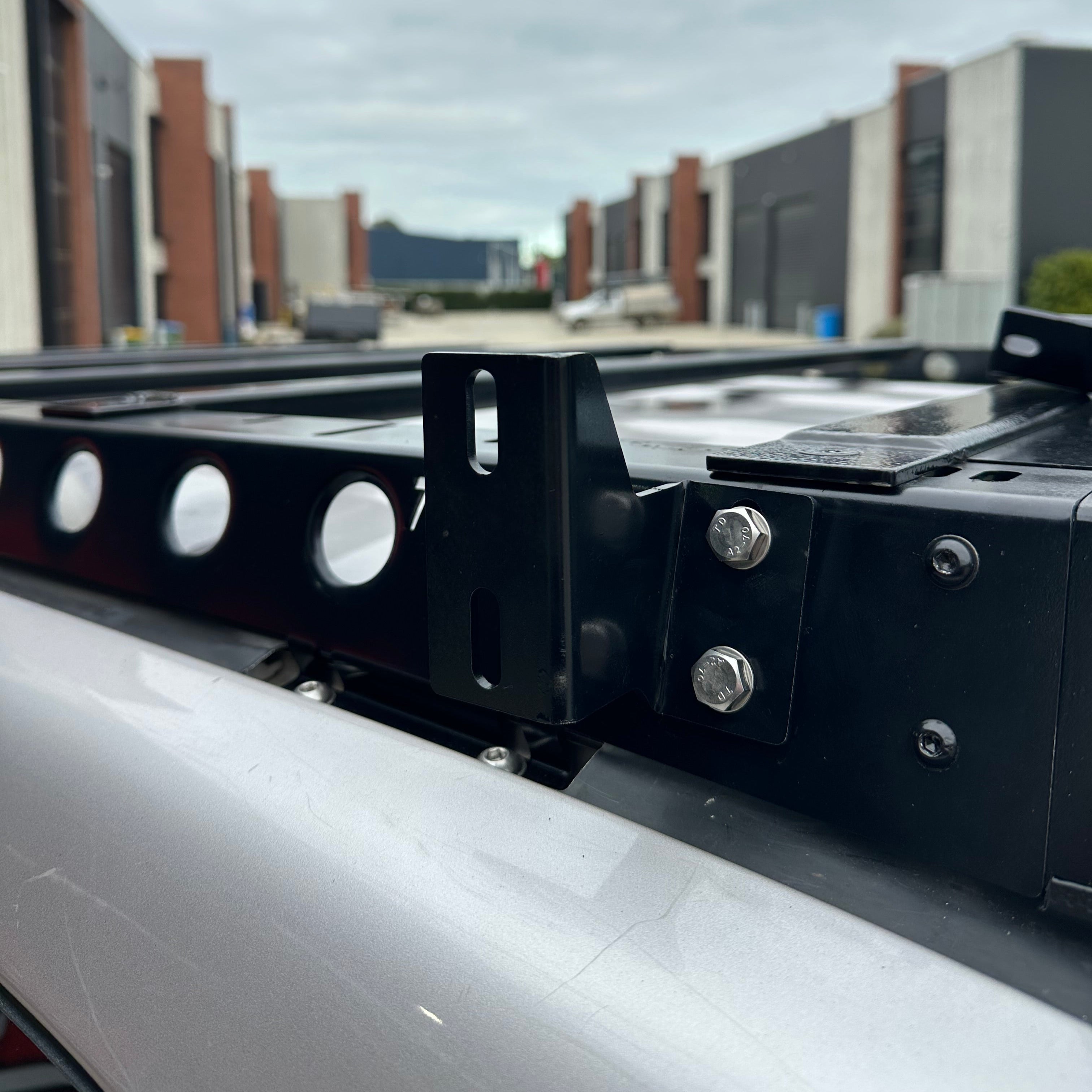

• Style 2: Designed for traditional side awnings, offering a simple, sturdy solution with a clean side profile.

• Style 3 (Coming Soon): A higher-mounting version of Style 1, developed for larger awnings that need additional clearance above rear wings or doors. Based on our popular "Style 2" Patrol brackets.

If you're running a rear wing, its designed for your 270 awning to overlap the wing when mounted — this mainly only works with the barn door wing. Its designed to create a weather shield from the dreaded gap that you normally end up with between your tent and awning that allows rain to get through. The original design of the wing was to fix this issue.

Recommended x3 brackets for 270 awnings, small side awnings can be mounted with x2 style 2 brackets.

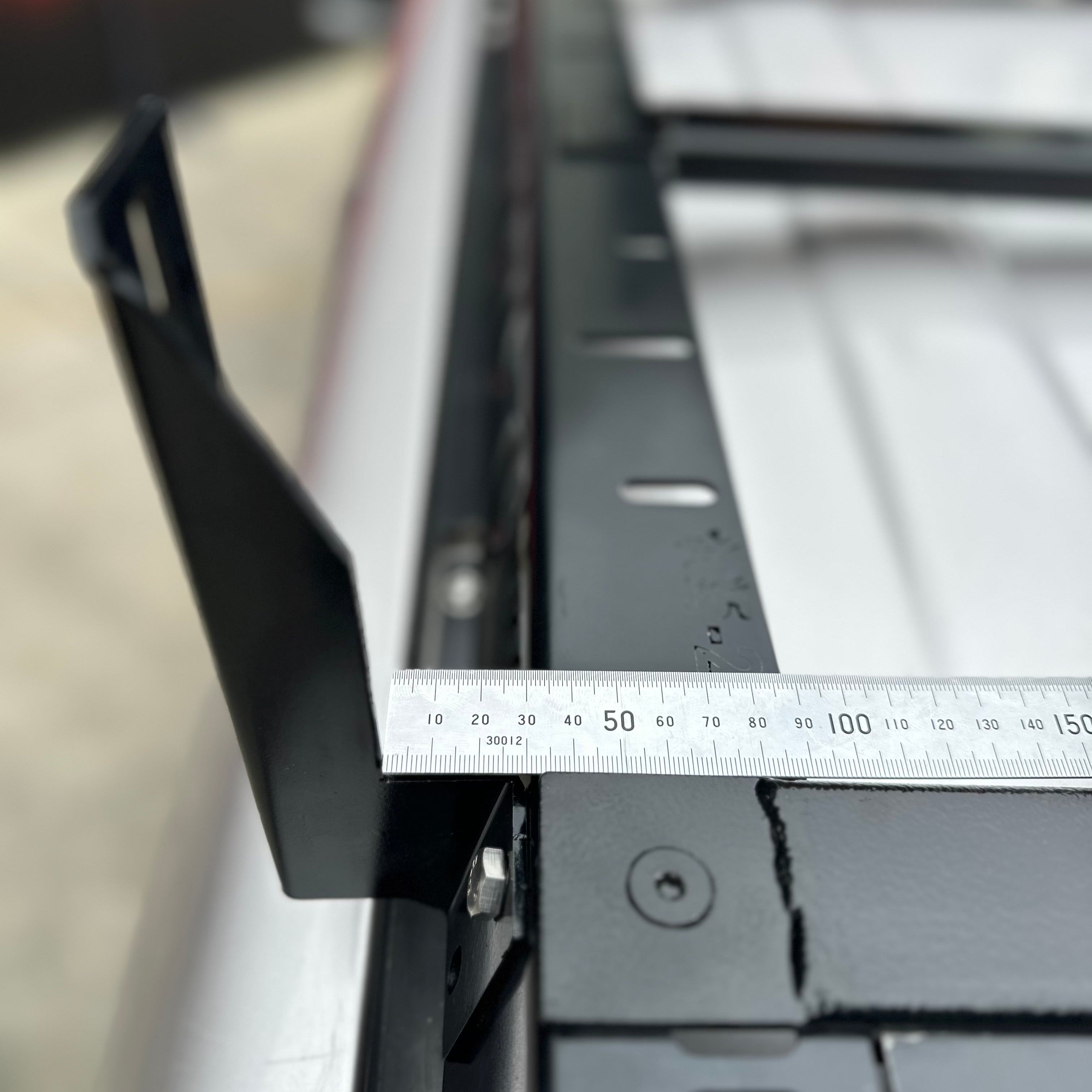

If your wanting to mount a rooftop tent with these please note the tent will most likely need to be off-centered. Outside of rail to rail at the rear is 1125mm, there is a 50mm gap between the edge of the awning bracket cutout and roof rack. Please take this into consideration when ordering. Best suited to 1.2 tents, any bigger and we suggest looking at tent mounted awning brackets.

Mounting System:

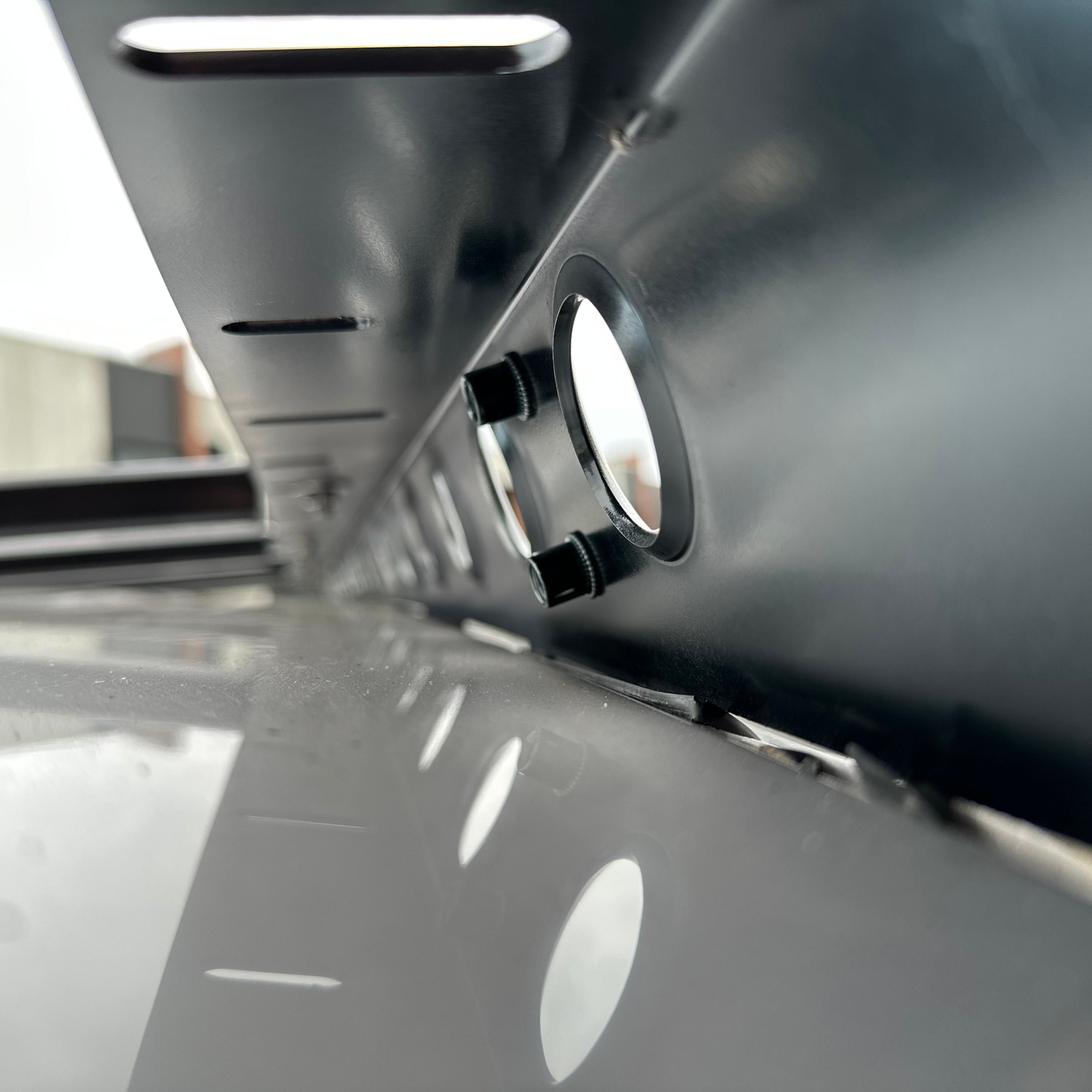

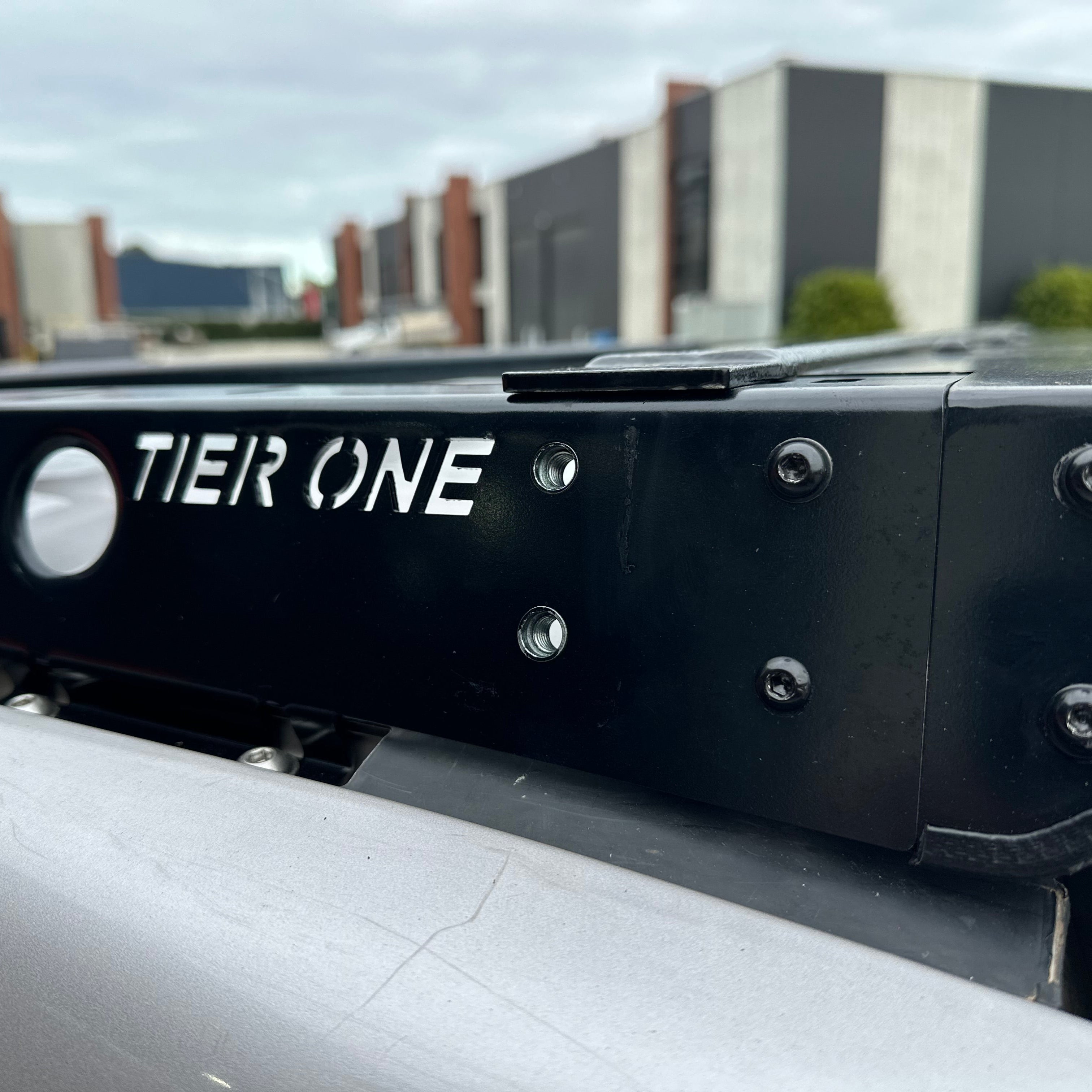

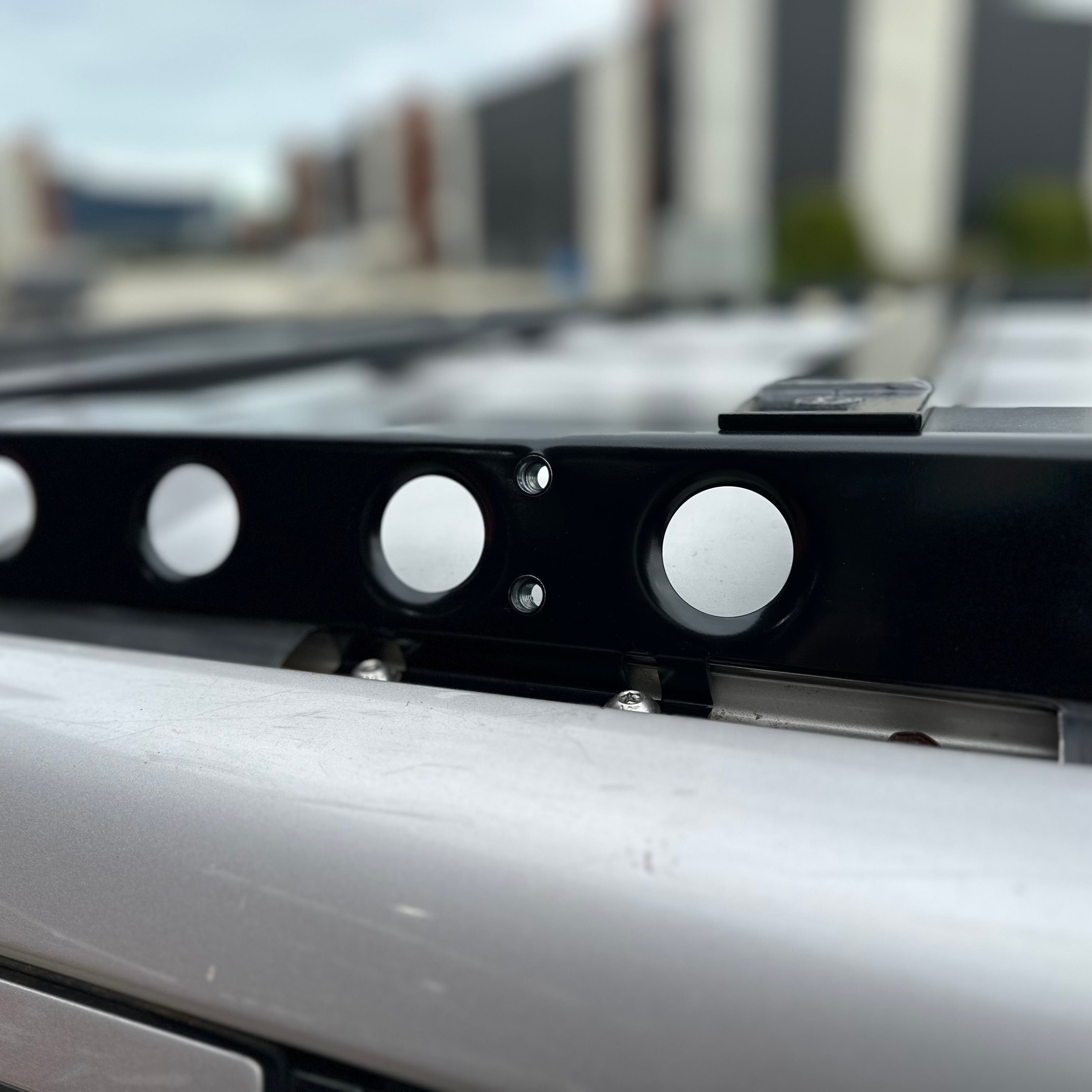

All 100 / 105 Series rails include two rivnuts in three locations for direct bracket mounting. These are embedded during production and offer exceptional strength. We’ve used this system across hundreds of 270º awning setups on other modles with zero failures.

In our own testing, we were able to tear the bolts through the awning bracket itself before any movement occurred at the rivnuts — proving the strength and reliability of this mounting method.

Specifications:

• Material: 4mm mild steel

• Finish: Zinc electroplated, then powder-coated in satin black

• Hardware: All necessary stainless steel mounting hardware included

• Fitment: Suits Tier One Metalworks 100 / 105 Series Roof Rails only

While these brackets are not officially load-rated, they are built to comfortably support most standard and 270º awnings on the market.

Disclaimer:
Use this product at your own risk. Tier One Metalworks is not liable for any damage or injury resulting from use. These brackets are not currently load-rated.
