200 Series Land Cruiser Roof Rack Rail Sides -COMING SOON-
-COMING SOON-
-Releasing early to mid February for pre order-
Pricing coming soon
Keep an eye on our Instagram page for updates
Please note the crossbars are sold separately.
After more then two years on the market, our Tier One Metalworks Roof Rack Rails have proven themselves as one of the toughest and most versatile slimline mounting systems in Australia.
Proudly 100% Australian-made, these rails are built for those who value strength, simplicity, and a clean, low-profile finish — all without compromise.

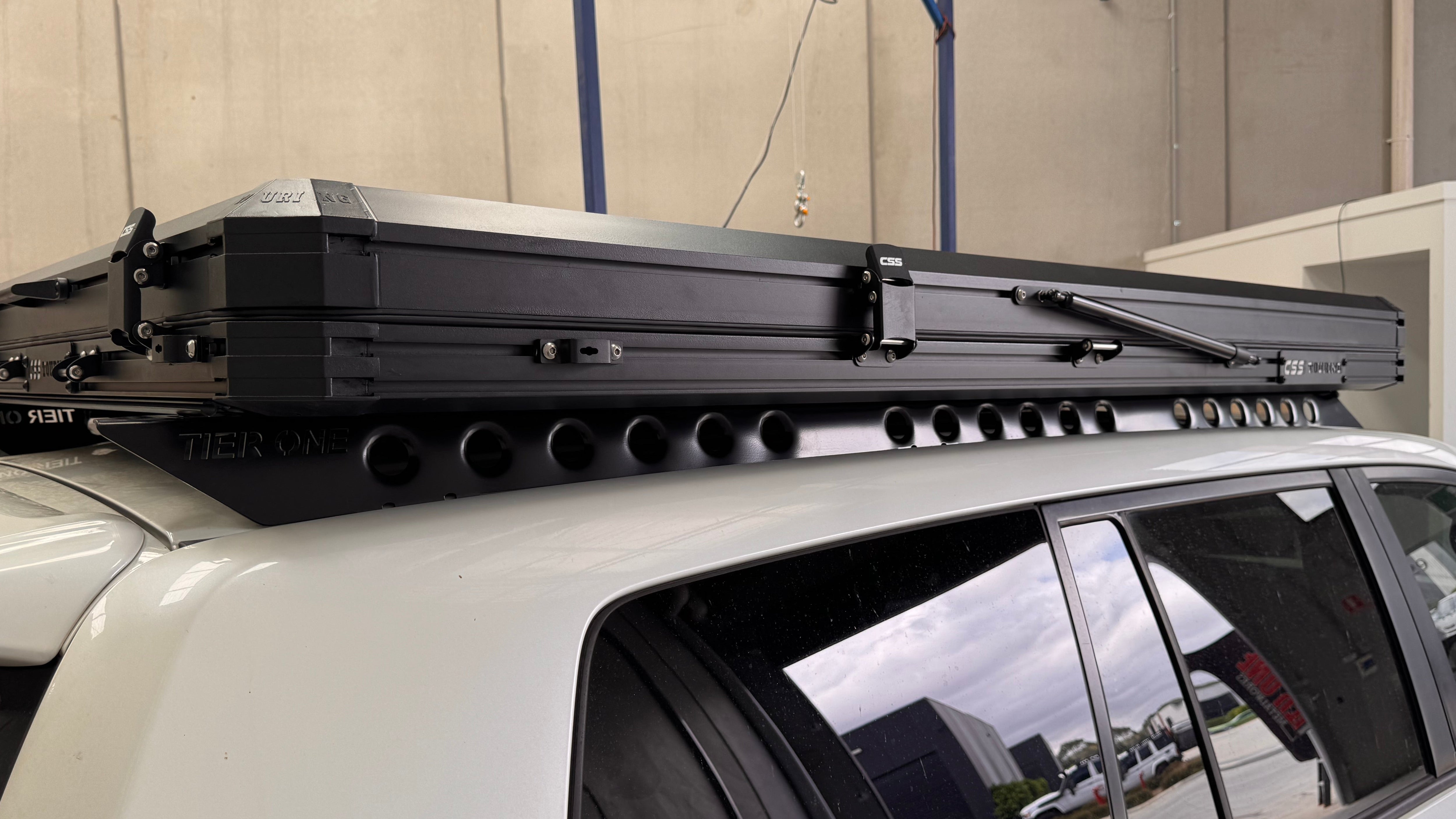

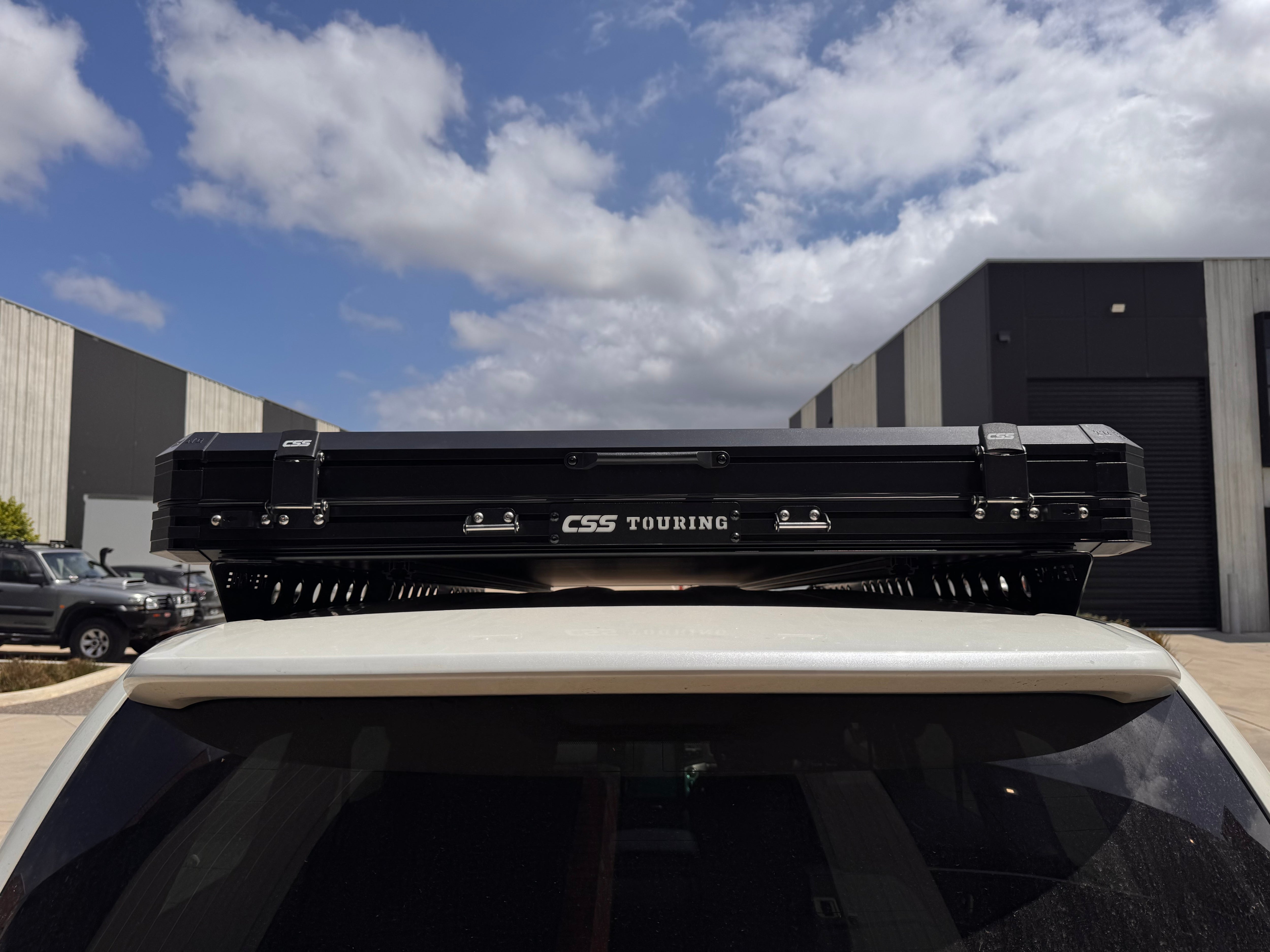

Originally designed specifically for direct rooftop tent mounting, these rails give you the option to bolt your tent straight to the vehicle for the ultimate low-profile setup — or pair them with our cross bars to create a complete roof-rack system.
The flexibility of this design means you can easily switch between configurations at any time, whether you’re running a tent one week or switching to crossbars the next.

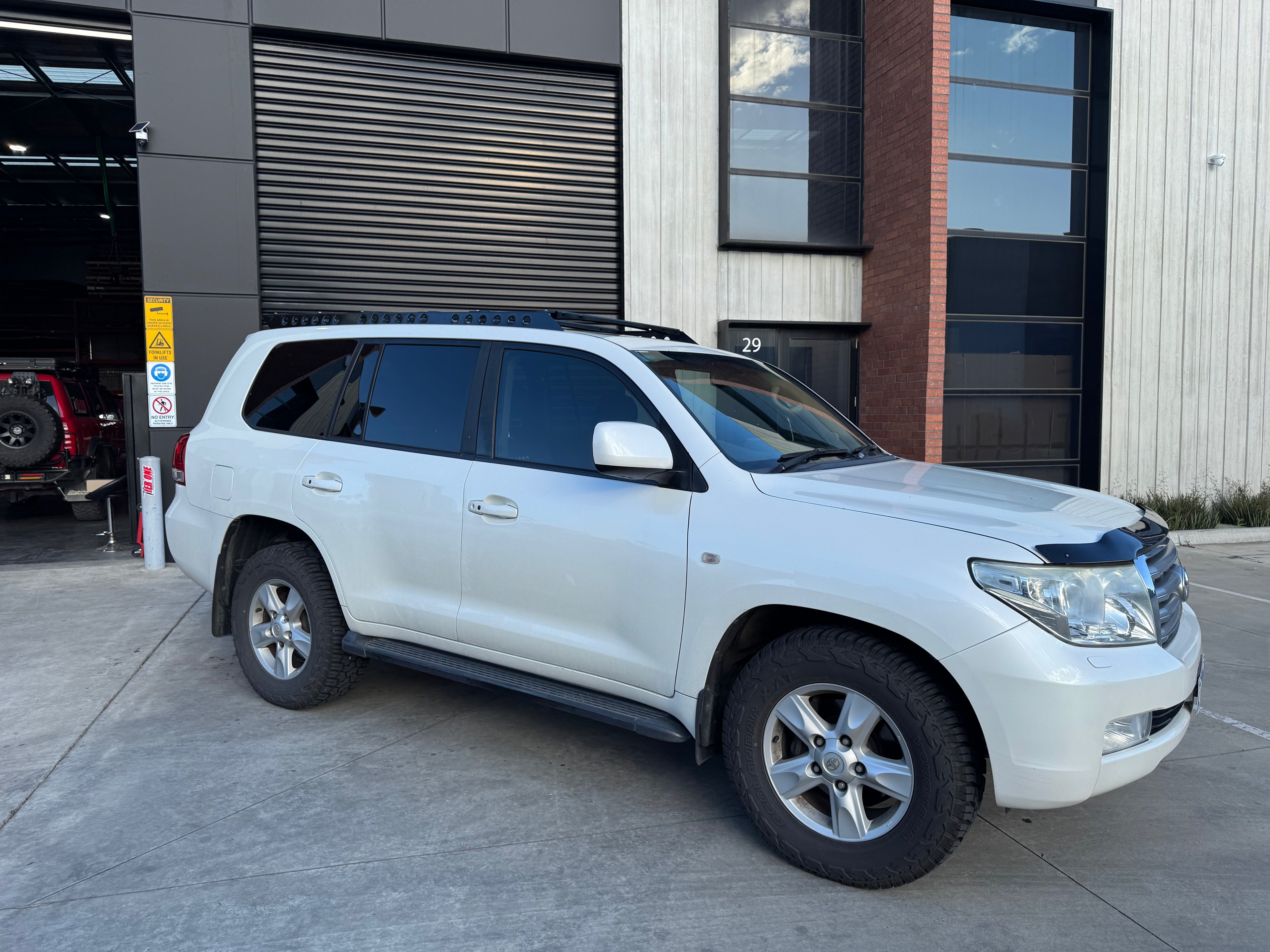

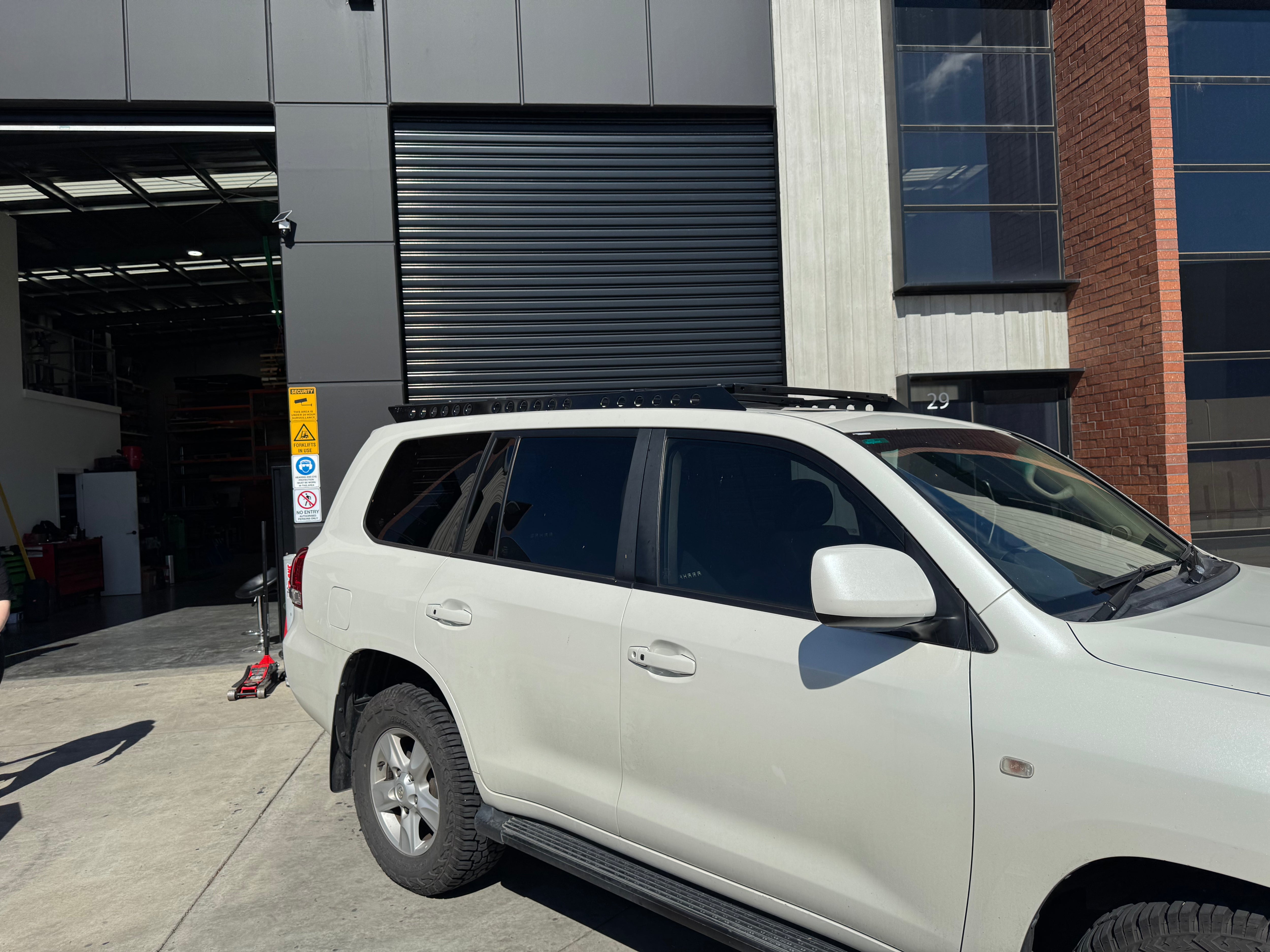

Sitting approximately 25 mm off the roof (as low as 10 mm when running cross bars), these rails keep your tent or rack snug to the vehicle, giving your setup that streamlined, tough aesthetic that looks right at home on any 4wd.
Our entire system is modular, giving you the flexibility to start with just the side rails and build on your setup over time.
-
Mounting Options
We’ve designed these rails to suit a wide range of mounting setups — from simple direct mounts to full rack conversions.

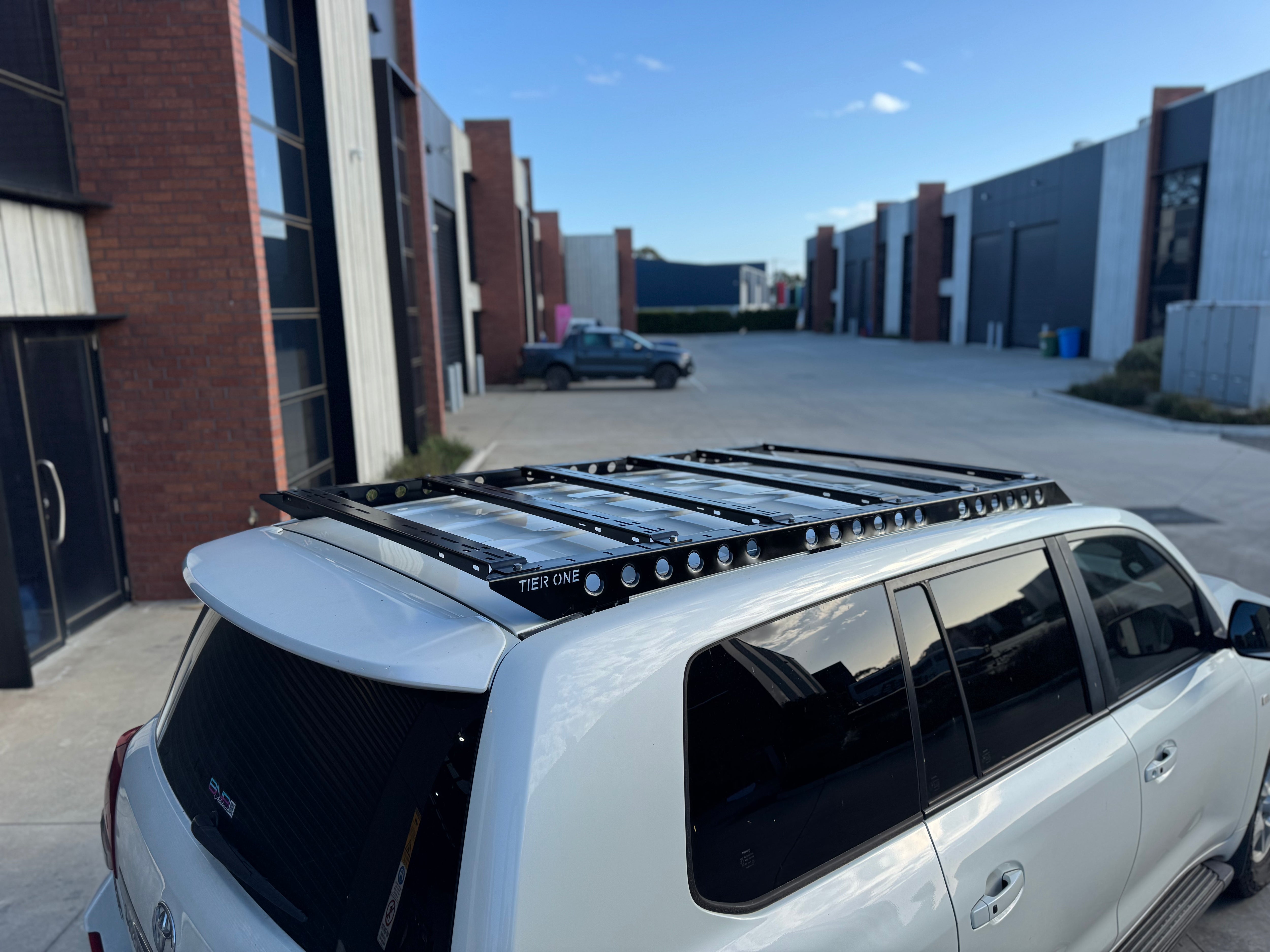

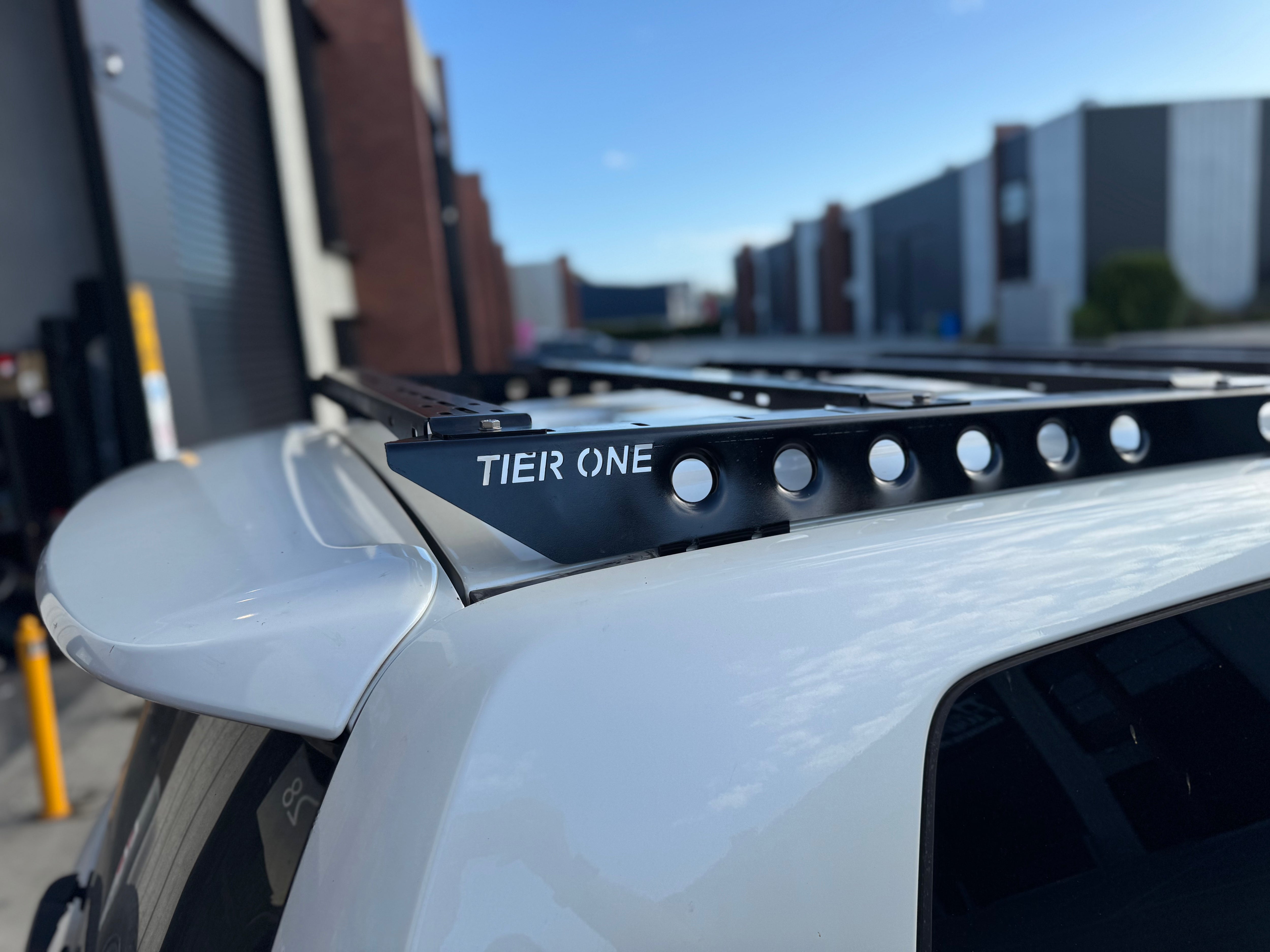

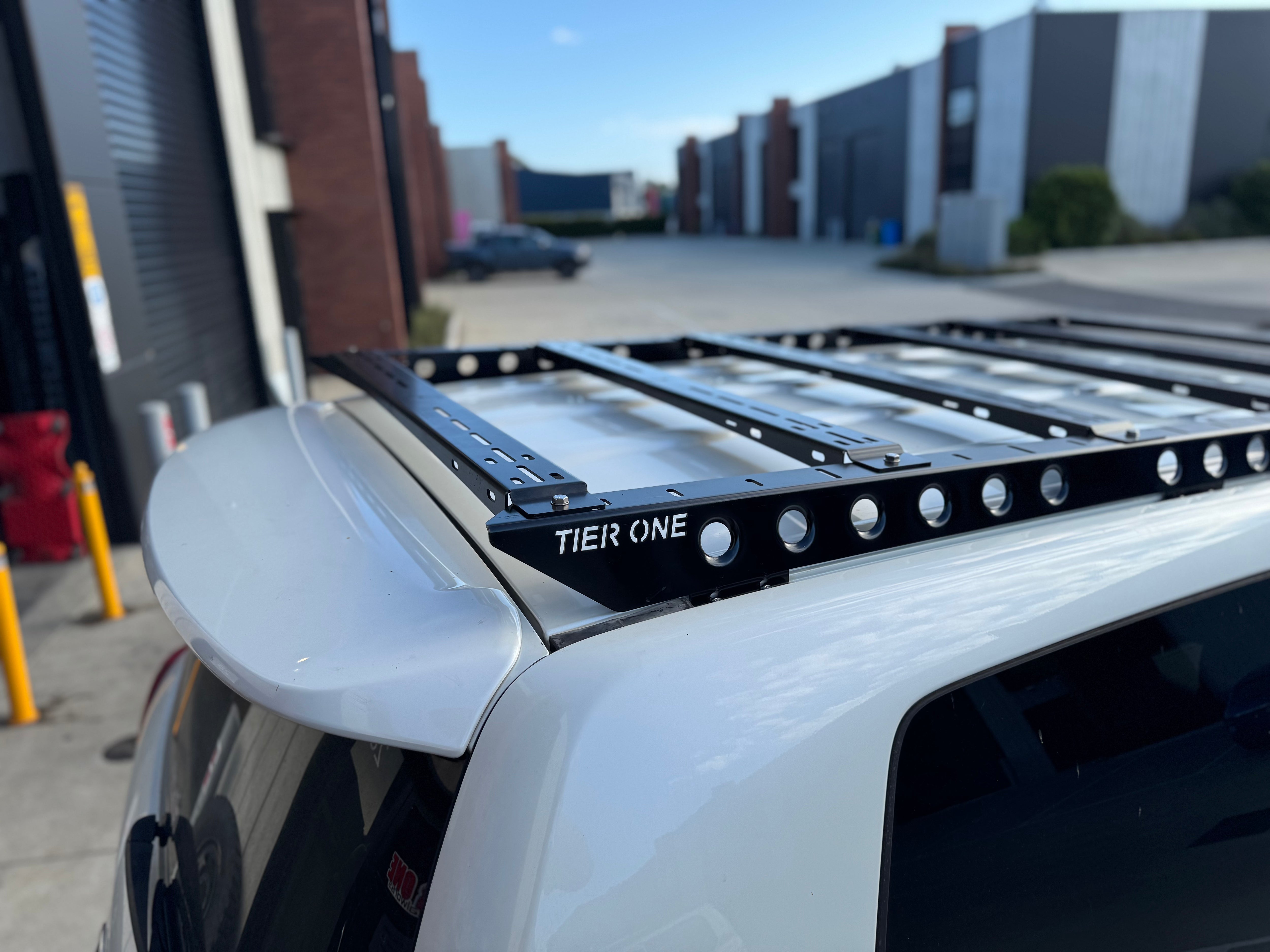

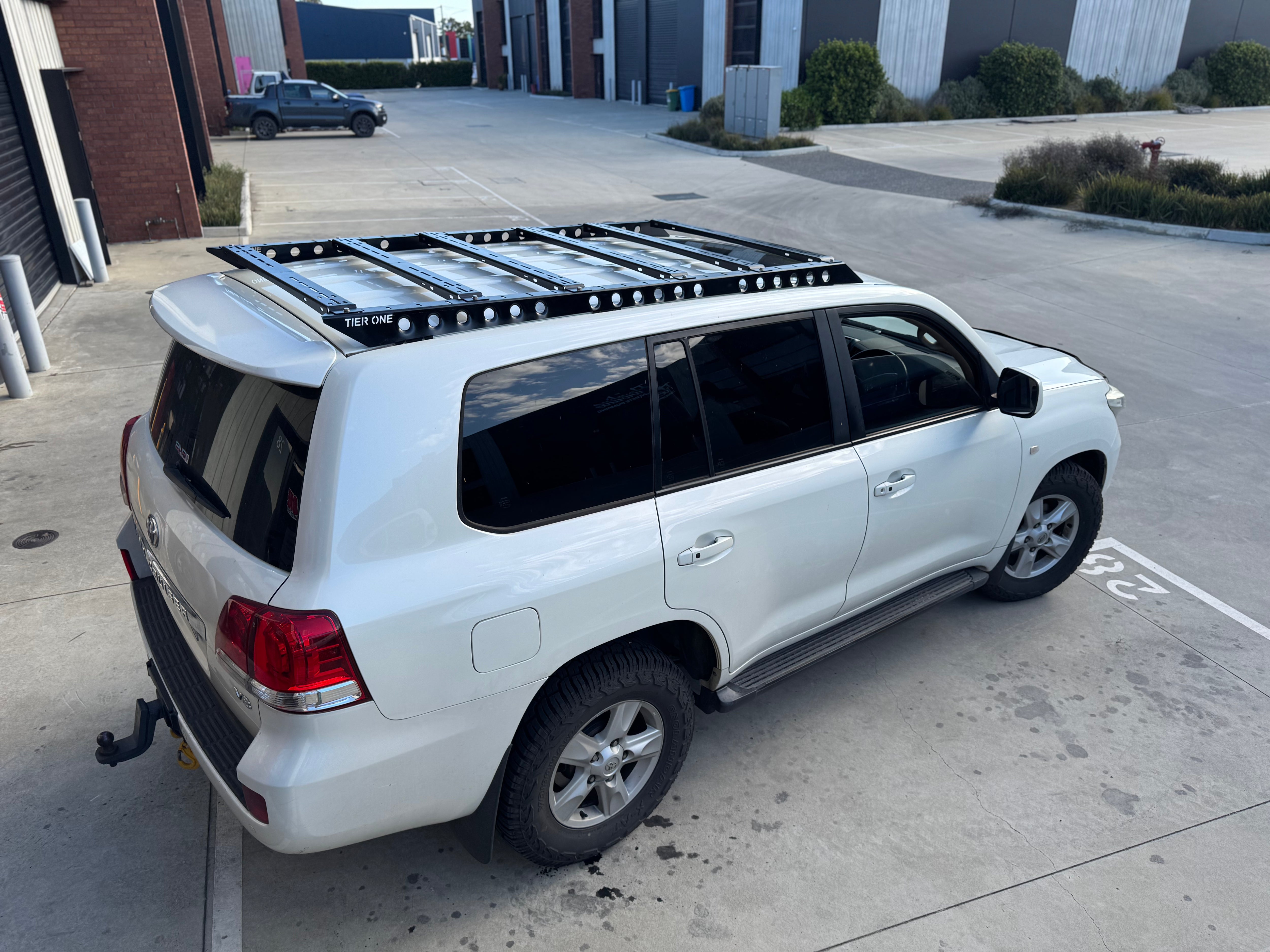

- Low Profile Light Duty Cross Bars – The perfect all-rounder: strong, simple, practical and lightweight. Best when using alongside a rooftop tent
- RHS Steel Cross Bars – Designed to sit between the rails, offering a low stance with 8–10 mm clearance at the roof’s highest point.
- Aluminium Extrusion Bars – 80×25 mm T-slot bars that mount on top of the rails for a modular system, perfect for those that want to really load up there roof.
- Platform Racks – Mount existing racks (like the OCAM flat racks) directly to the rails. Some drilling may be required for other roof racks.

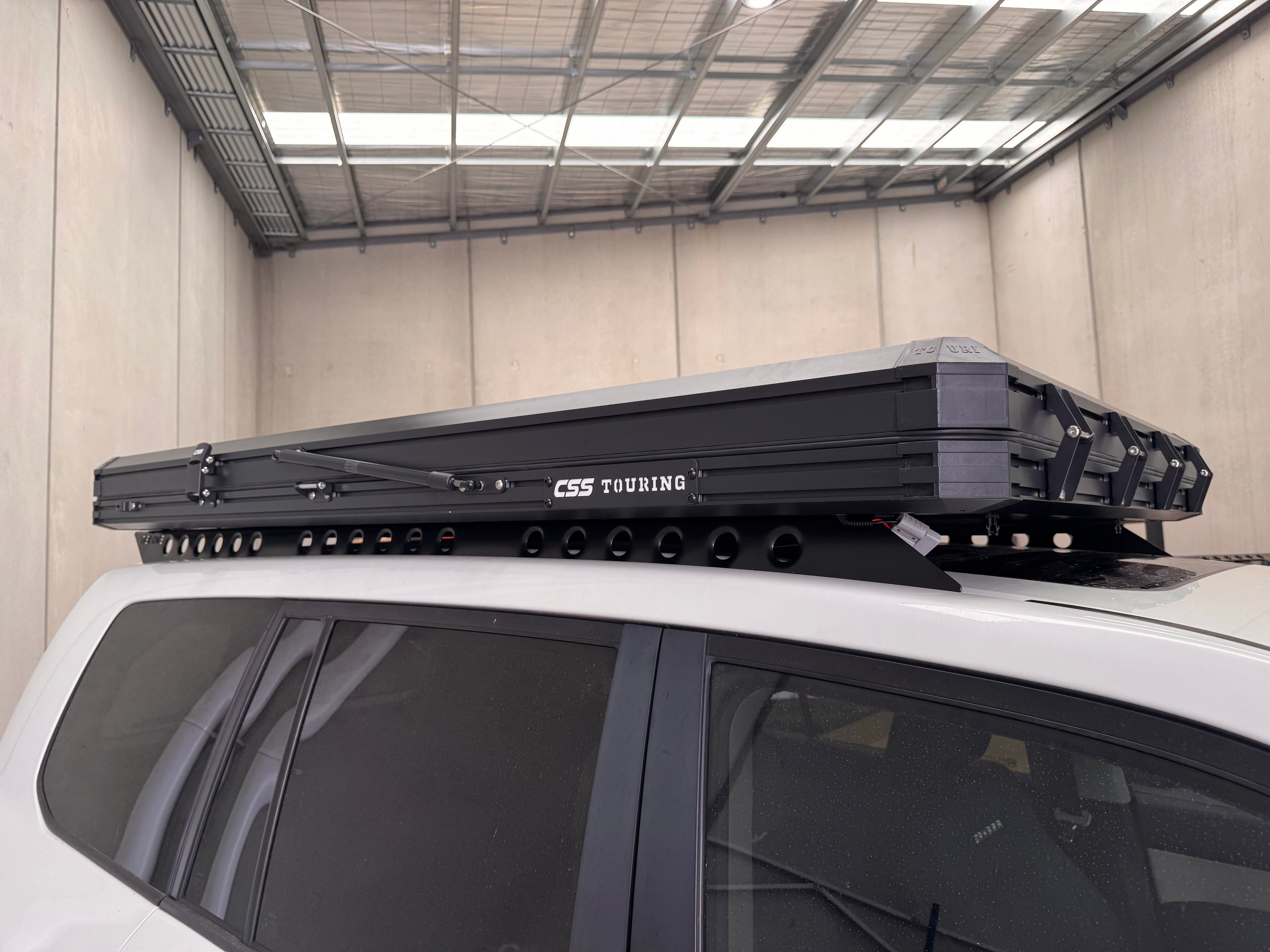

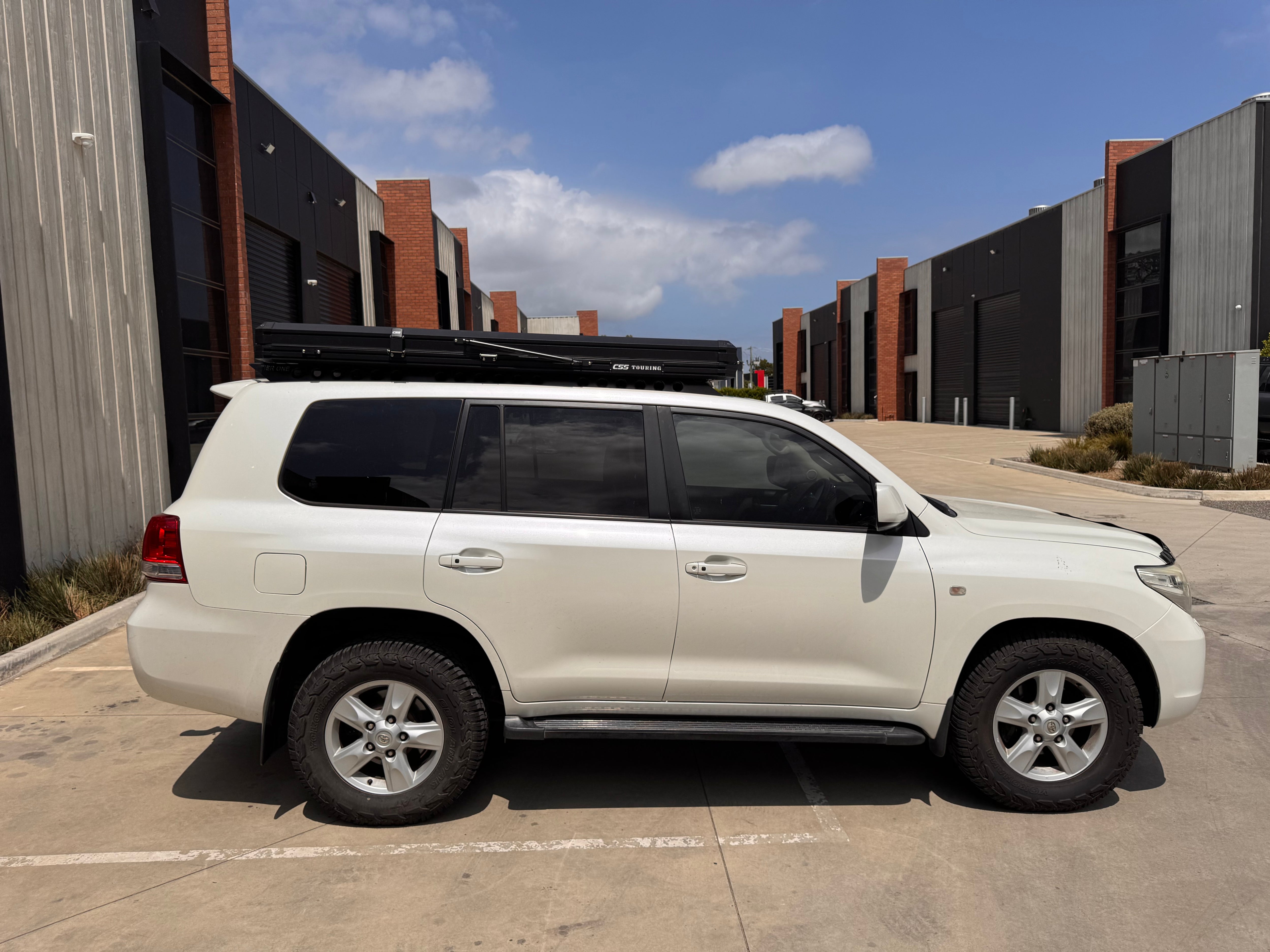

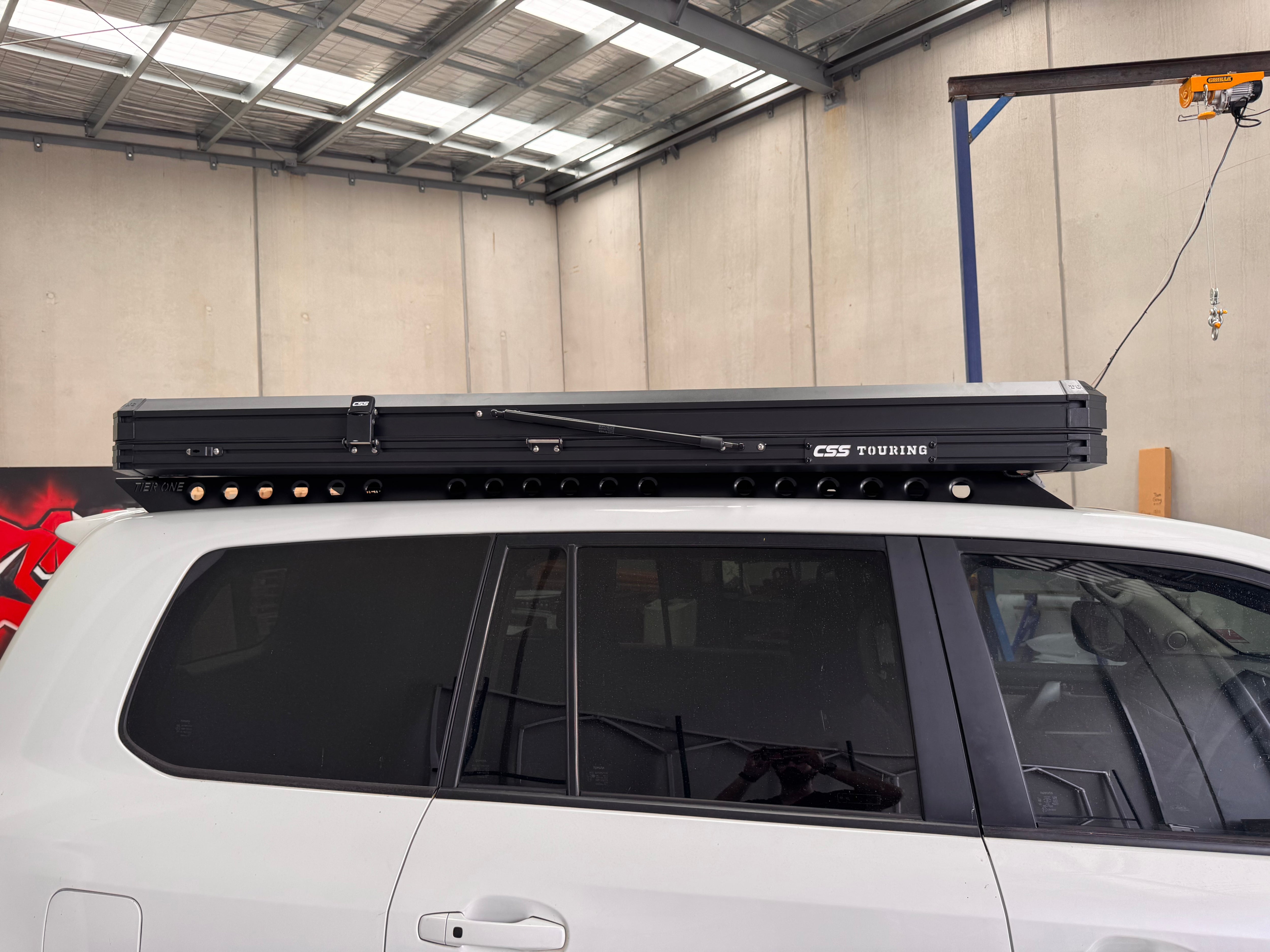

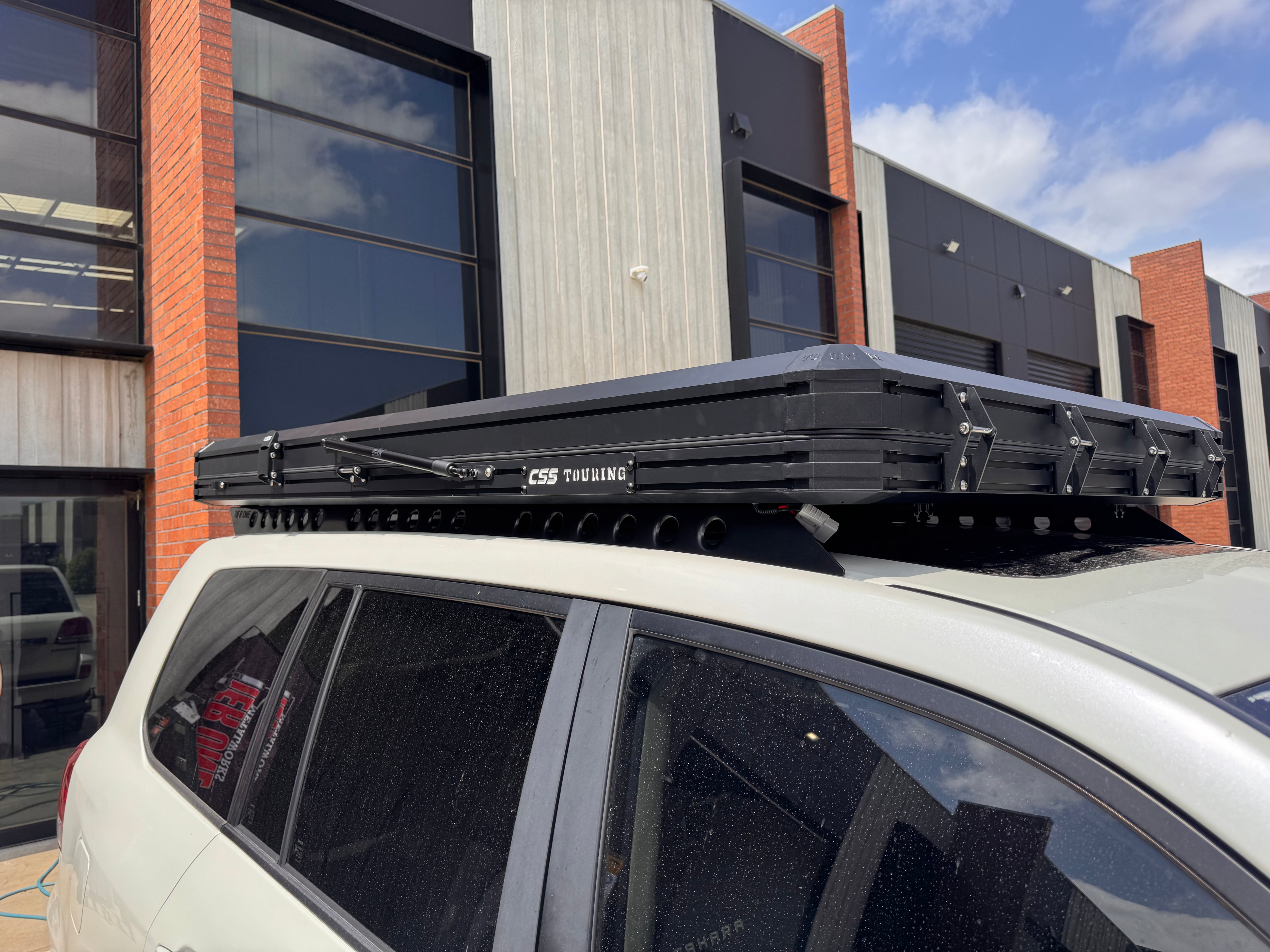

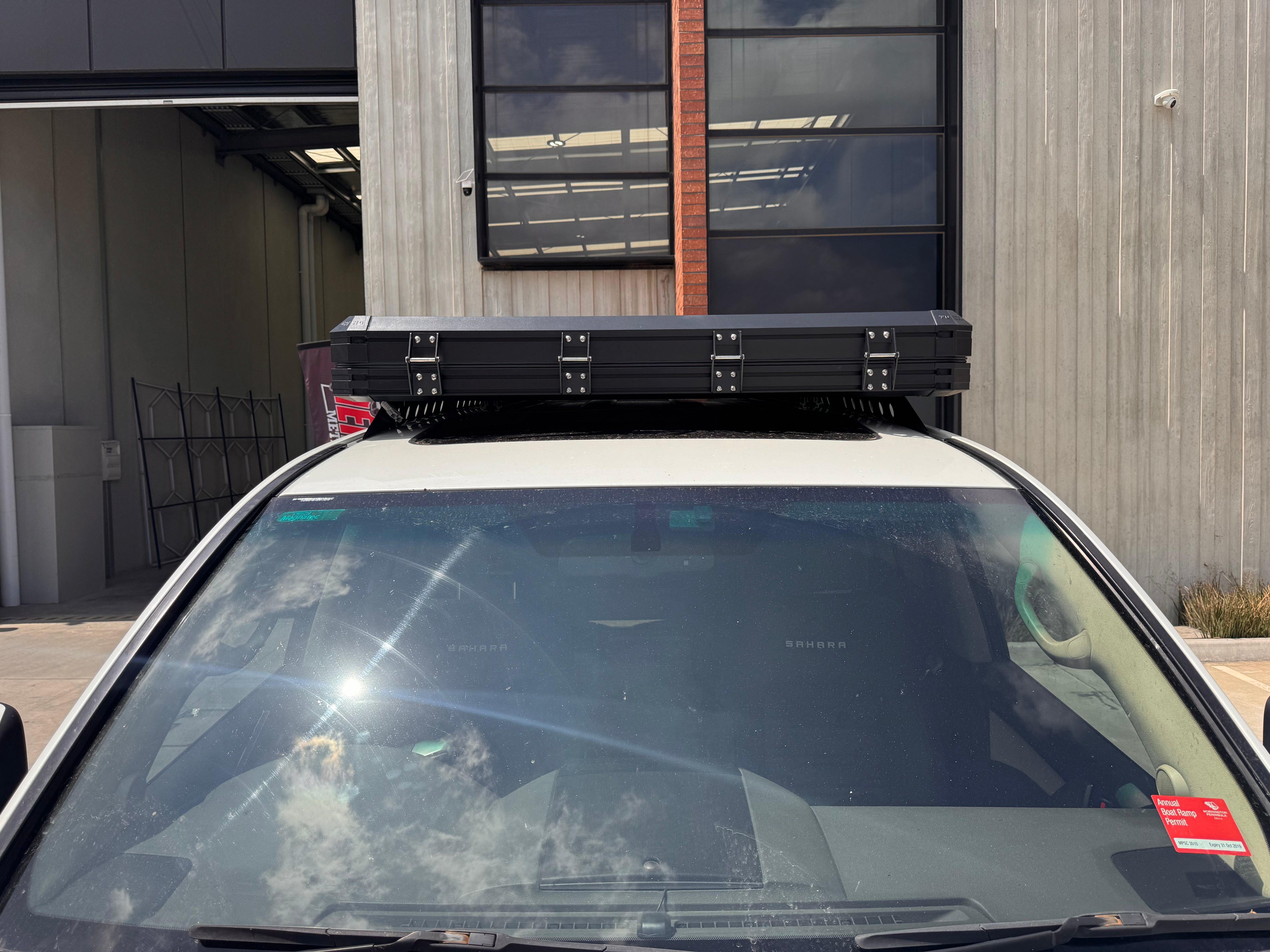

- Direct Tent Mounting – For the lowest-profile setup, mount your rooftop tent directly to the rails (tent base modifications may be required).
Unlike many other systems, we’ve designed our rails to use all four factory mounting positions for added strength. The one-piece rail design mounts directly to the roof using outward-facing feet, which makes install easier – particularly when direct-mounting a tent.
All rails are built from 3mm Stainless Steel then satin black powder-coated.
At this stage we don’t offer colour coding of rails but can supply everything raw at a reduced price.
*This is only the side rails, cross bars, wings, and other accessories are all sold separately. This is due to many only requiring the side rails to direct mount a tent.
Additional Features:
- Complete Kit: Includes all rubbers and 304 stainless steel hardware. Supplied bolts are 20mm long, suitable for roof racks and thin tent bases. (If directly mounting a tent, longer bolts and large washers may be needed.)
- Trimming Required: You may need to trim your factory roof trim to access the front mounting location – not all models come pre-cut.
-
Accessories Sold Separately: Cross bars, rear wings, and brackets are sold separately for full customization.
- Detailed fitting instructions available below:
-
[ Land Cruiser Roof Rack Instructions – Click Here]
If you’re unsure about fitment or your setup, contact us anytime — we’re always happy to help you get it right the first time.
Specifications:
- Material: Stainless Steel 304 (3mm thick), satin black powder coated
- Length: -mm
- Rail Top Width: -mm
- Front Rail Width: -mm internal / -mm external
- Rear Rail Width: -mm internal / -mm external
- Height Clearance: ~25mm between rail and highest roof point (8–10mm when using our steel cross bars)
- Hardware: 304 Stainless Steel
- Weight: 10.5kg (pair)
- Detailed fitting instructions available below:
Need Help?
Got questions or unsure about your setup?
Reach out — our team’s here to help. We’ve seen just about every tent and rack combo out there and can point you in the right direction.
Disclaimer
Use this product at your own risk. Tier One Metalworks is not liable for any damage or injury resulting from use or installation.
These rails are not currently load-rated — please check your rooftop tent or rack manufacturer’s guidelines before fitting.
For Instructions and further information, click the link below, we've created a whole page dedicated to instructions and additional fitting information to make the process easier
