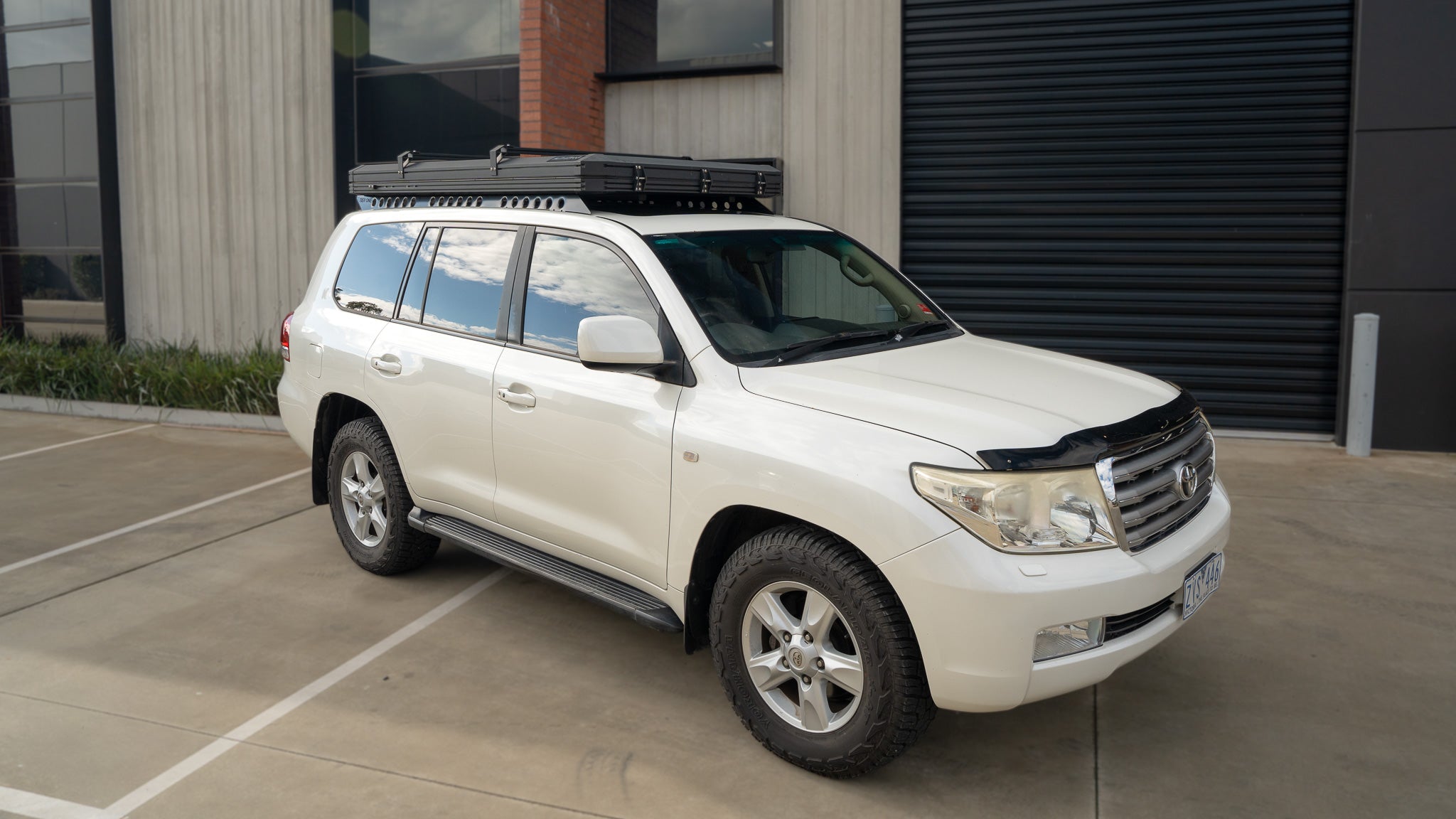

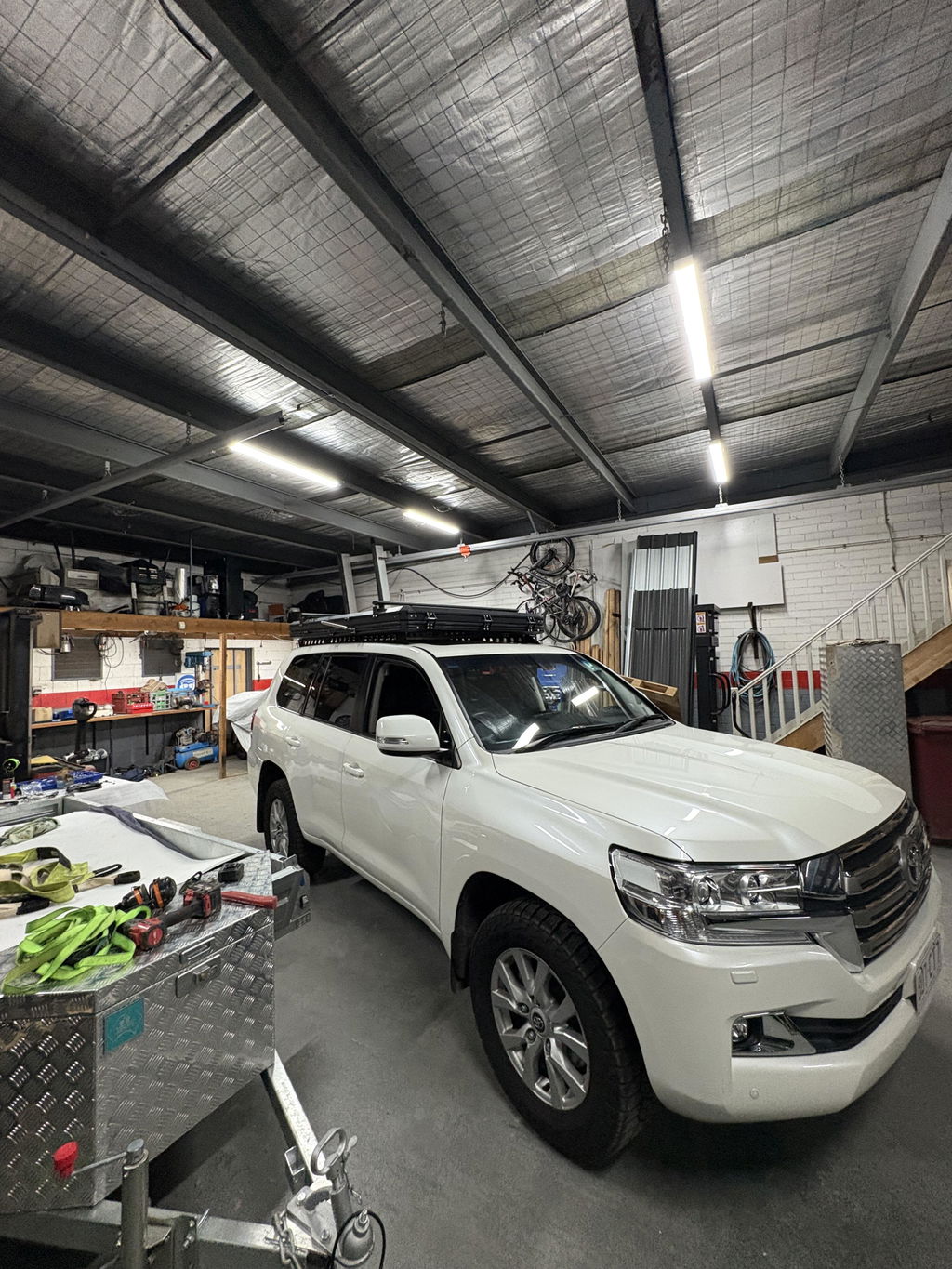

Toyota LandCruiser 200 Series Roof Rack Rail Sides
Please note the crossbars are sold separately.
After almost two years on the market, our Y62 Patrol Roof Rack Rail Sides have established themselves as one of Australia's toughest and most versatile slimline mounting systems.
Proudly 100% Australian made, each set is manufactured from 304 stainless steel and finished in our signature satin black powder coat for a premium finish.

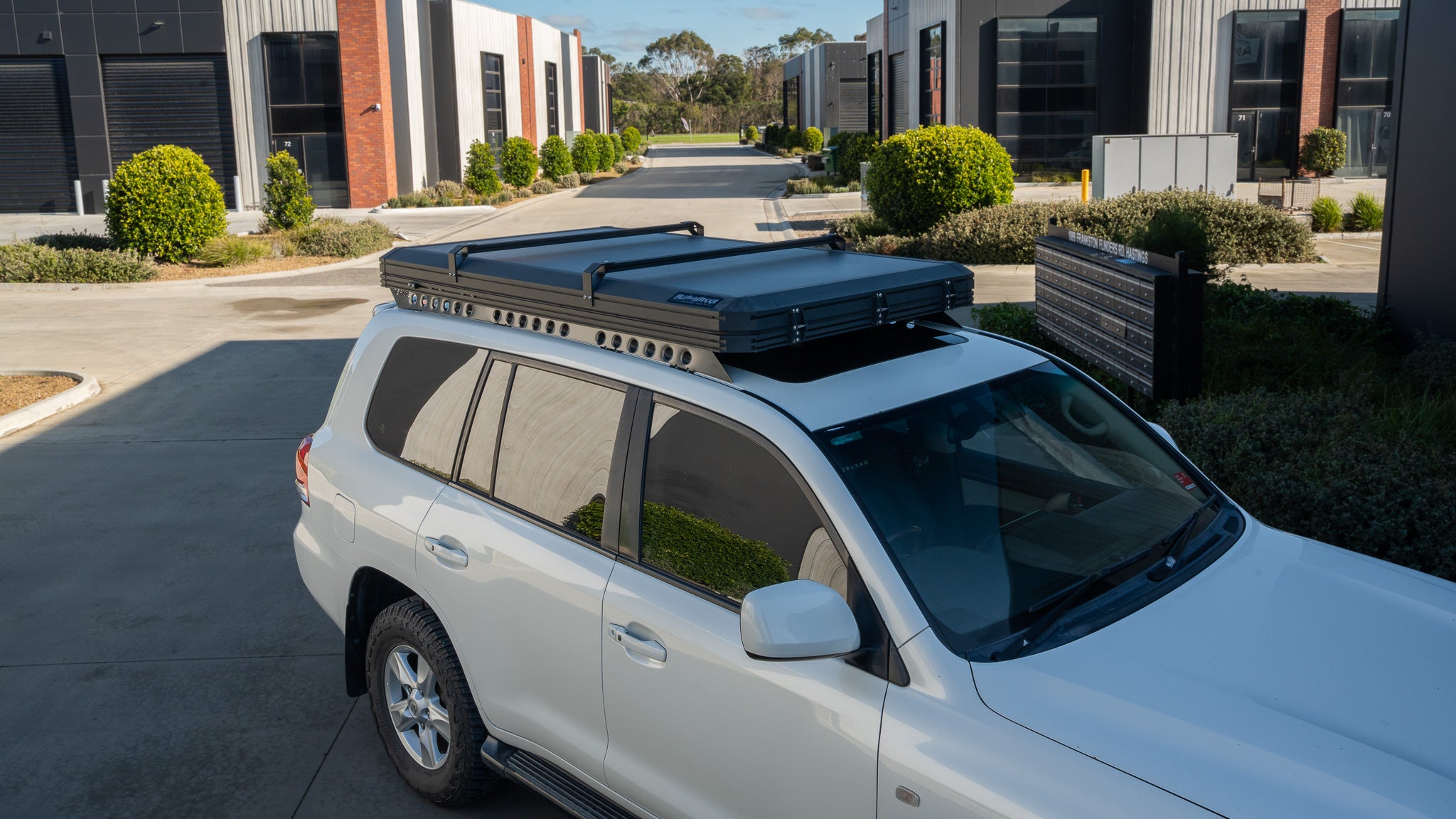

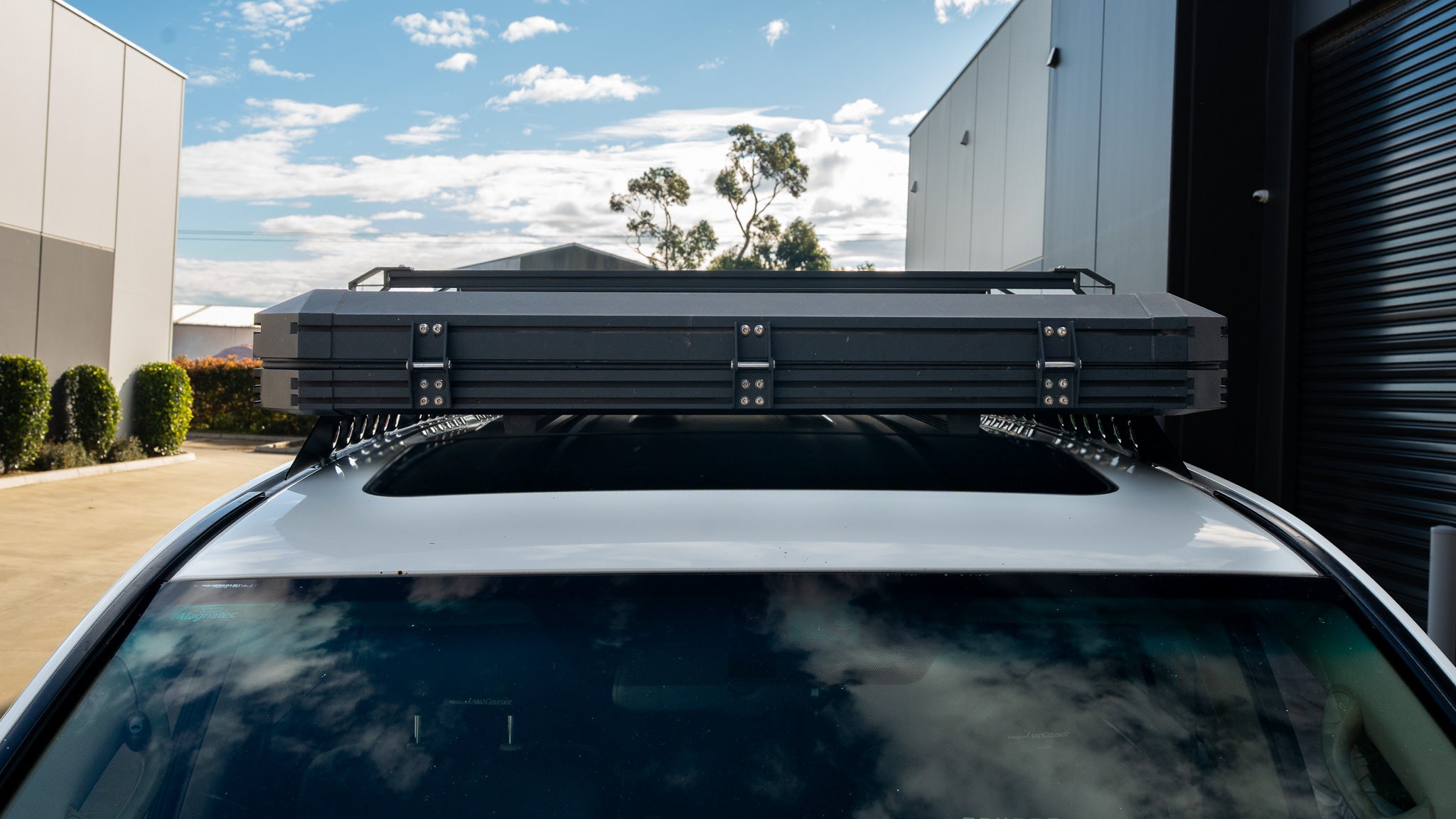

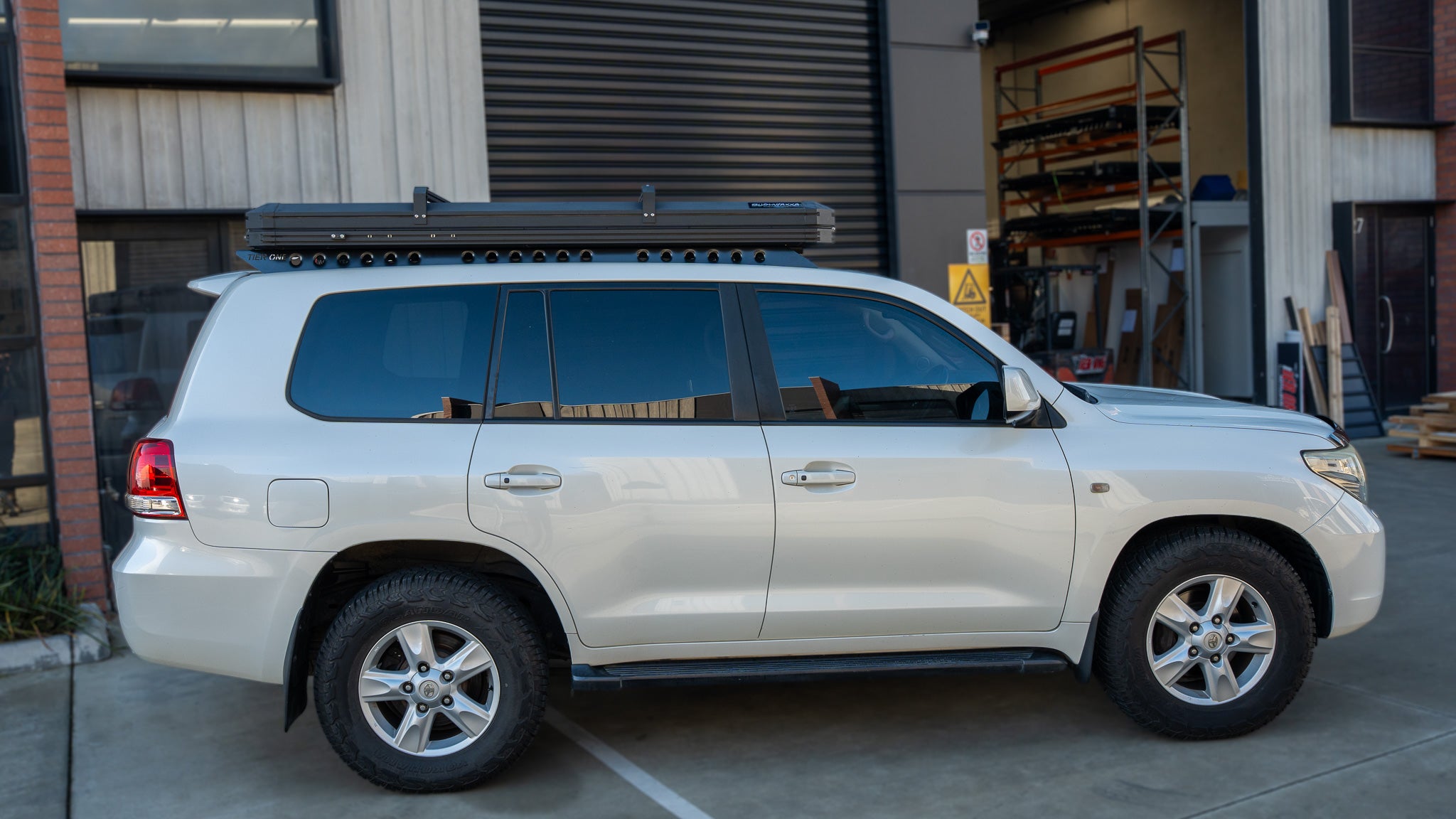

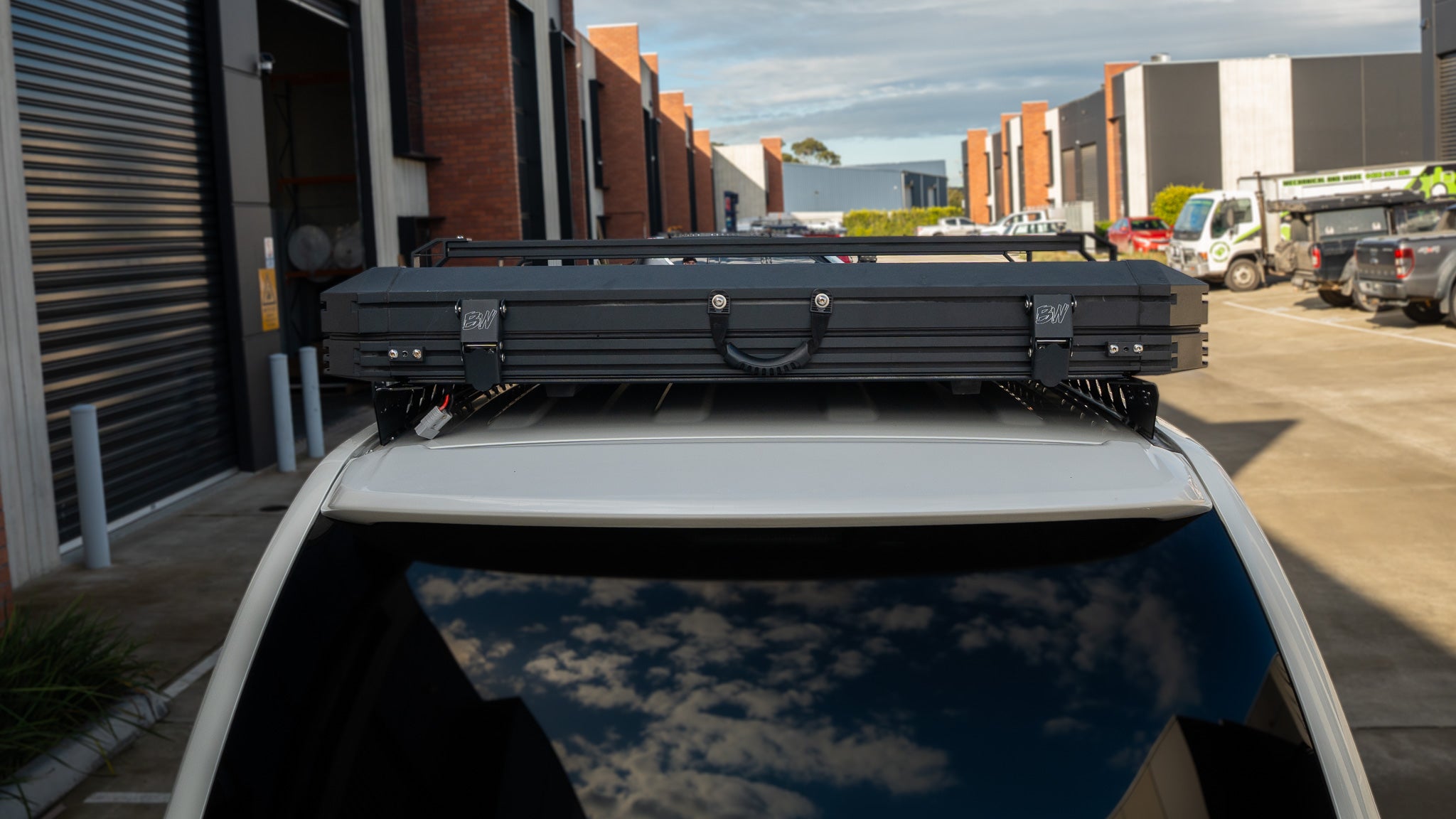

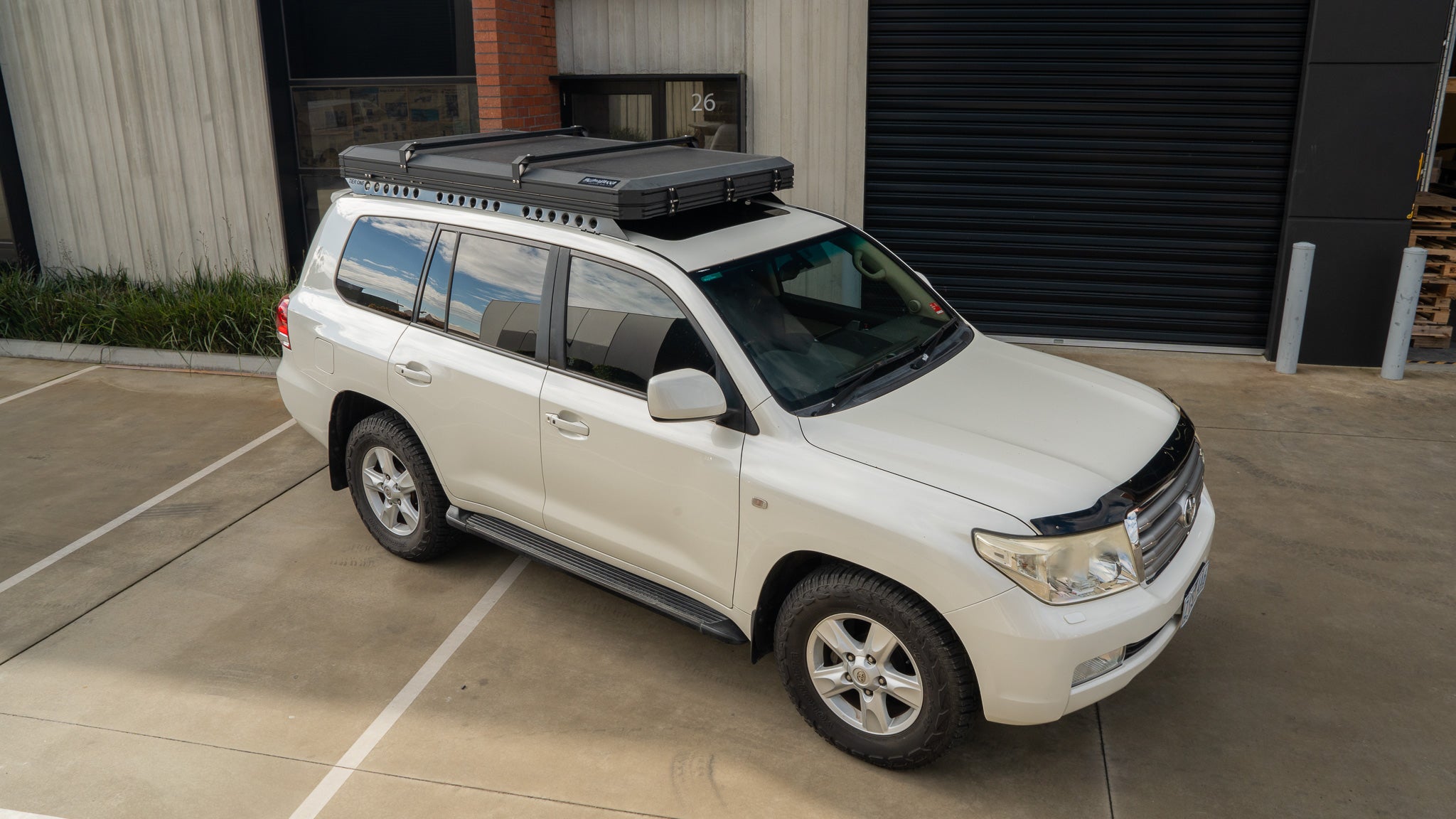

Originally designed for direct rooftop tent mounting, these rails allow you to bolt your tent directly to the vehicle for the ultimate low-profile setup. Sitting approximately 25mm above the roof (as low as 10mm when paired with our RHS Crossbars) they keep your setup tucked neatly to the vehicle while allowing you to expand with crossbars, a rear wing and other accessories over time.
Pair your rails with our range of Crossbars, available in multiple styles to suit everything from low-profile touring setups to heavy-duty trade systems, allowing you to configure the perfect setup for your needs. Alternatively, the rails can also be used to mount an existing roof rack, solar panel, or other compatible accessories directly. We've even gone the extra step of powder coating the supplied mounting hardware for a premium finish right down to the smallest details.
-
Mounting Options
We’ve designed these rails to suit a wide range of mounting setups — from simple direct mounts to full rack conversions.
- Low Profile Light Duty Cross Bars – The perfect all-rounder: strong, simple, practical and lightweight. Best when using alongside a rooftop tent. 10-15mm of roof clearance.
- RHS Heavy-Duty Low-Profile Cross Bars – Designed to sit between the rails, offering a low stance with 8–10 mm clearance at the roof’s highest point.
- High-Profile Heavy-Duty Aluminum Extrusion Bars – 80×25 mm T-slot bars that mount on top of the rails for a modular system, perfect for those that want to really load up there roof.
- Platform Racks – Mount existing racks (like the OCAM flat racks) directly to the rails. Some drilling may be required for other roof racks.
-

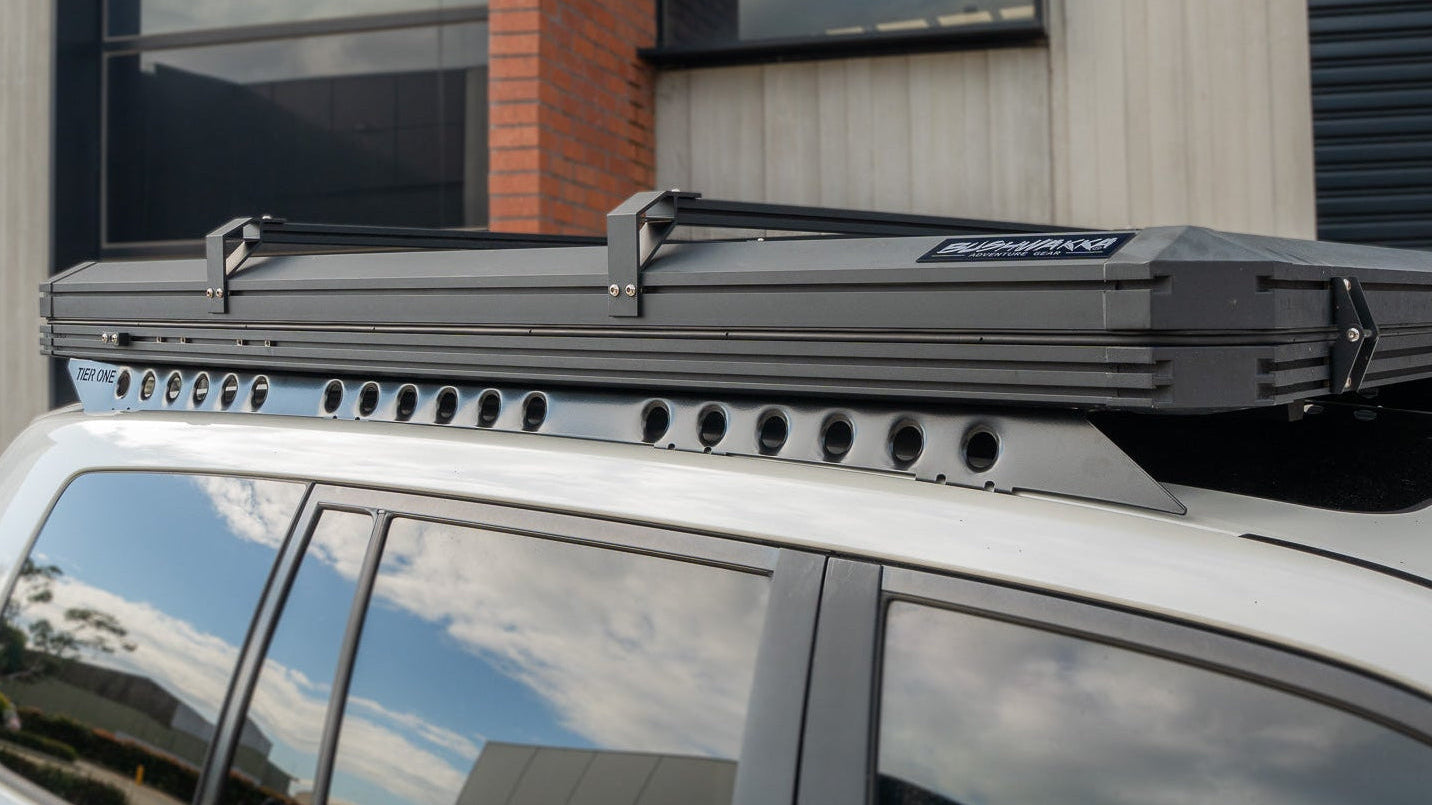

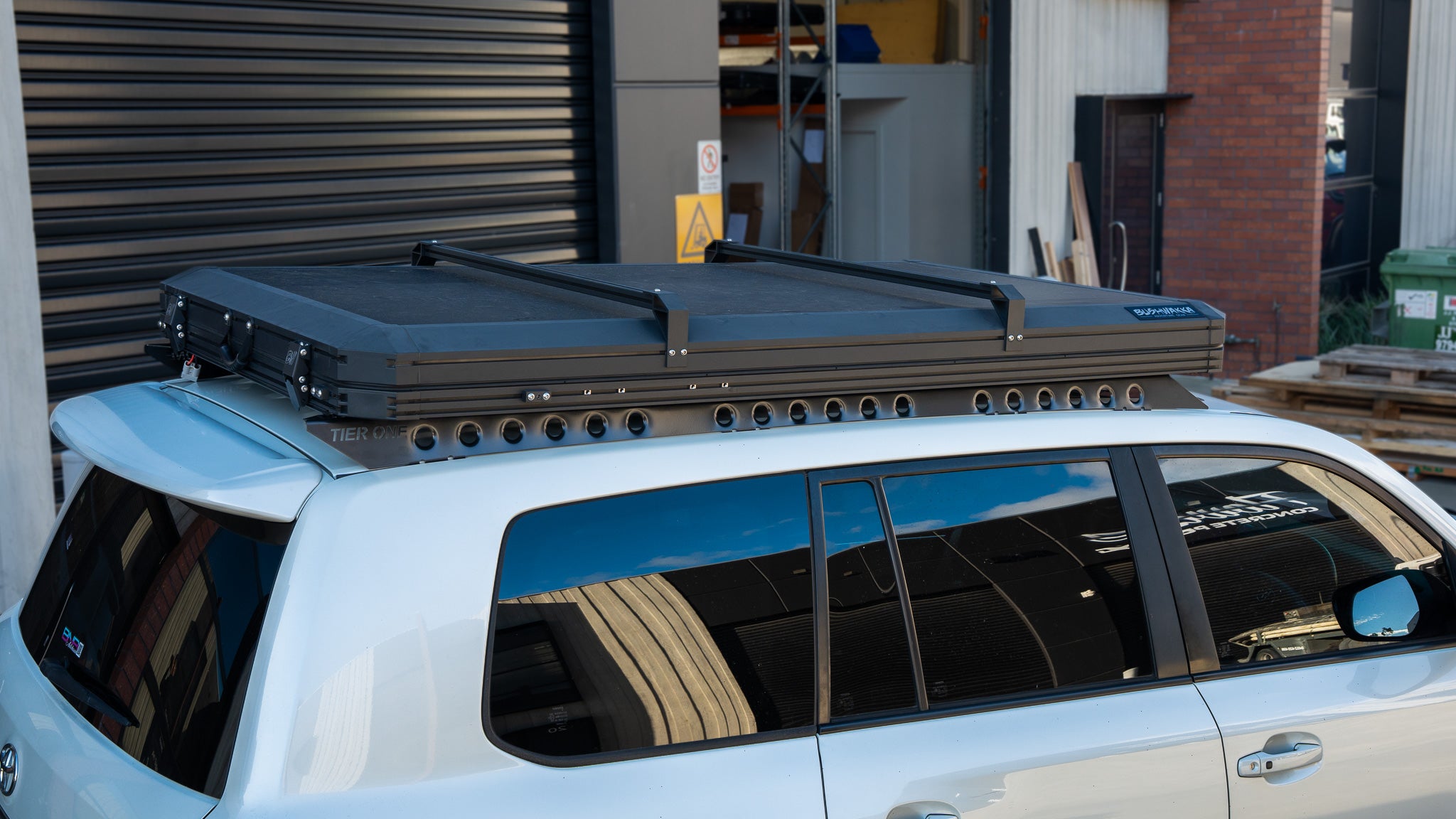

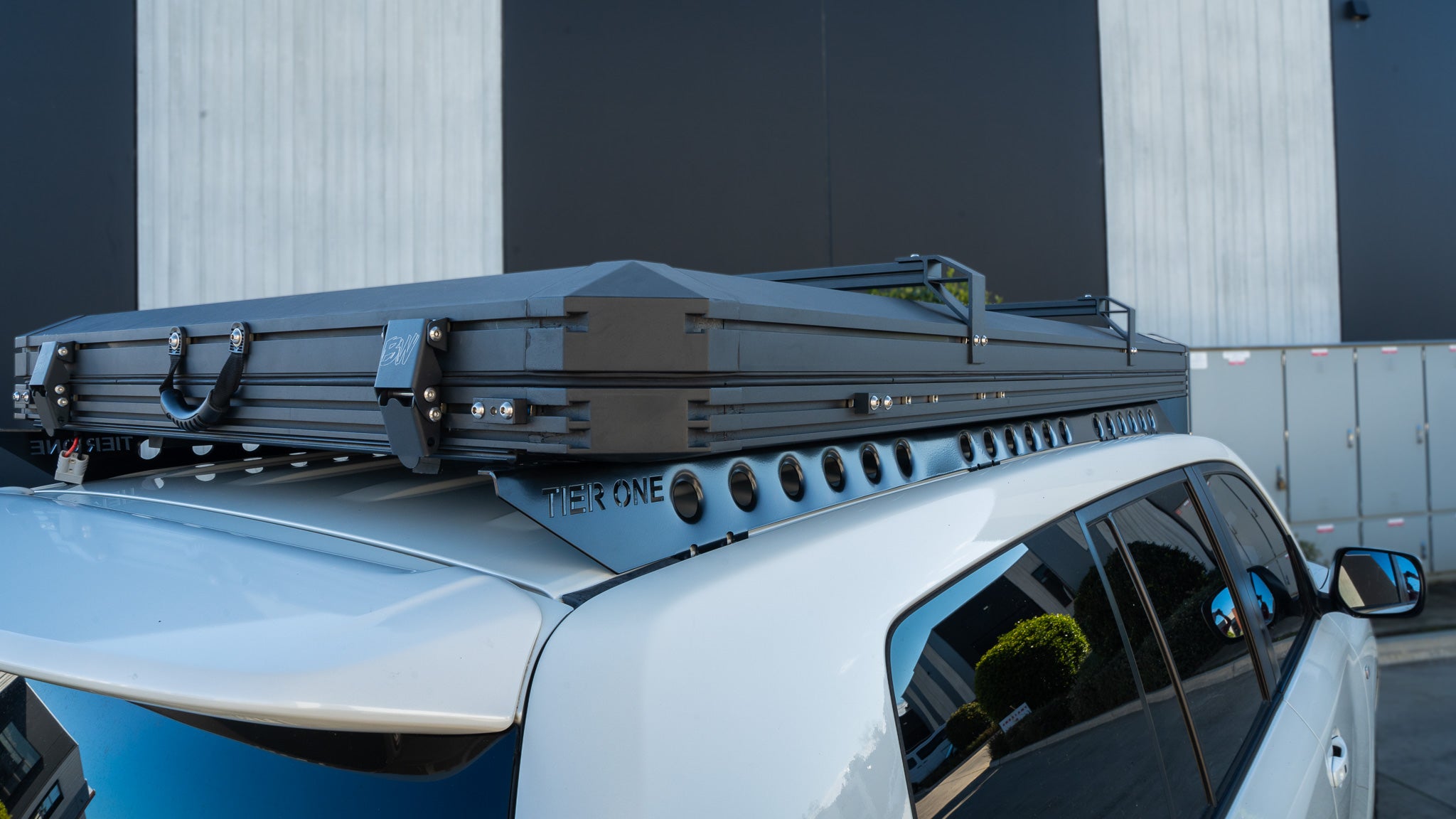

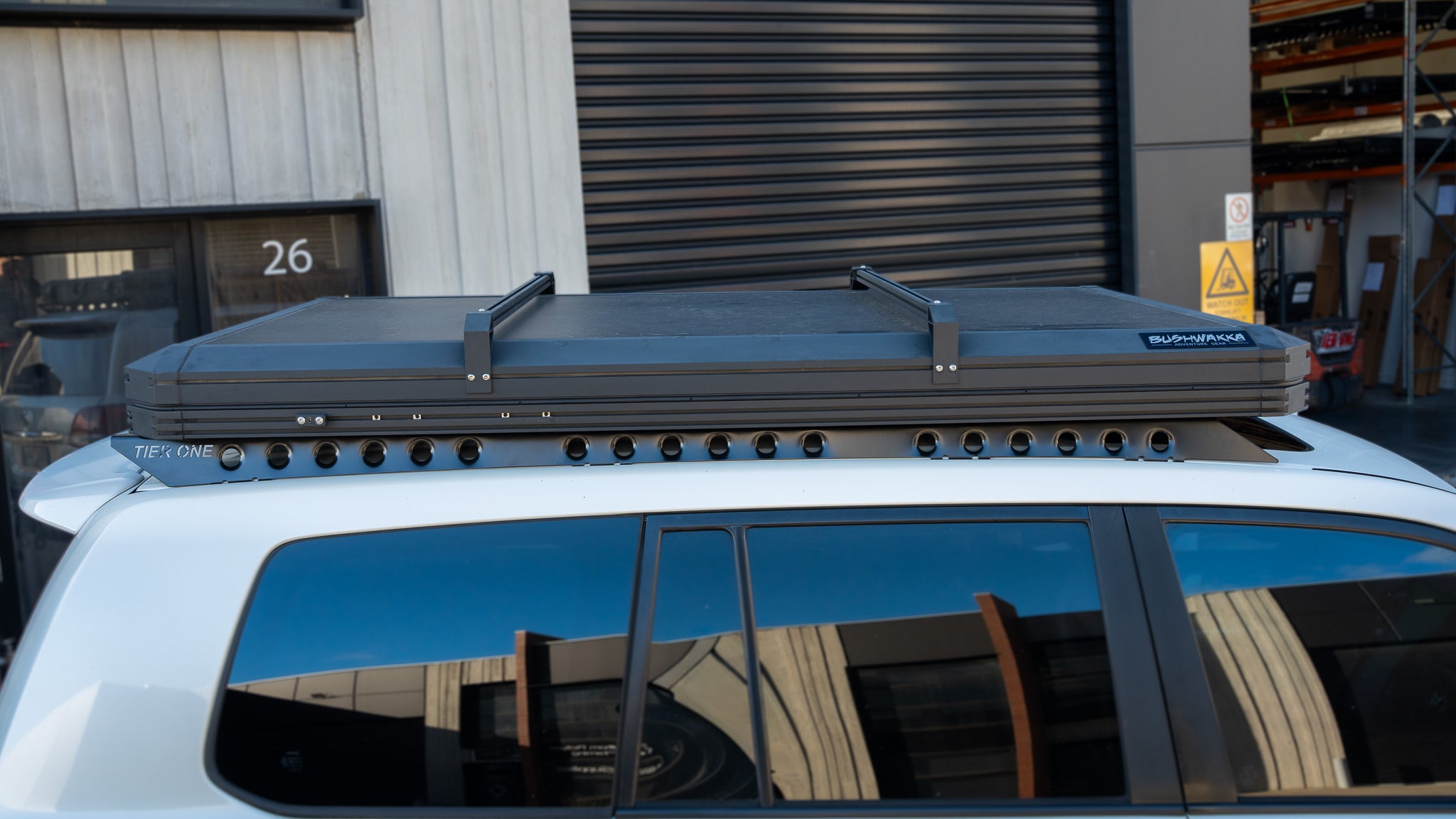

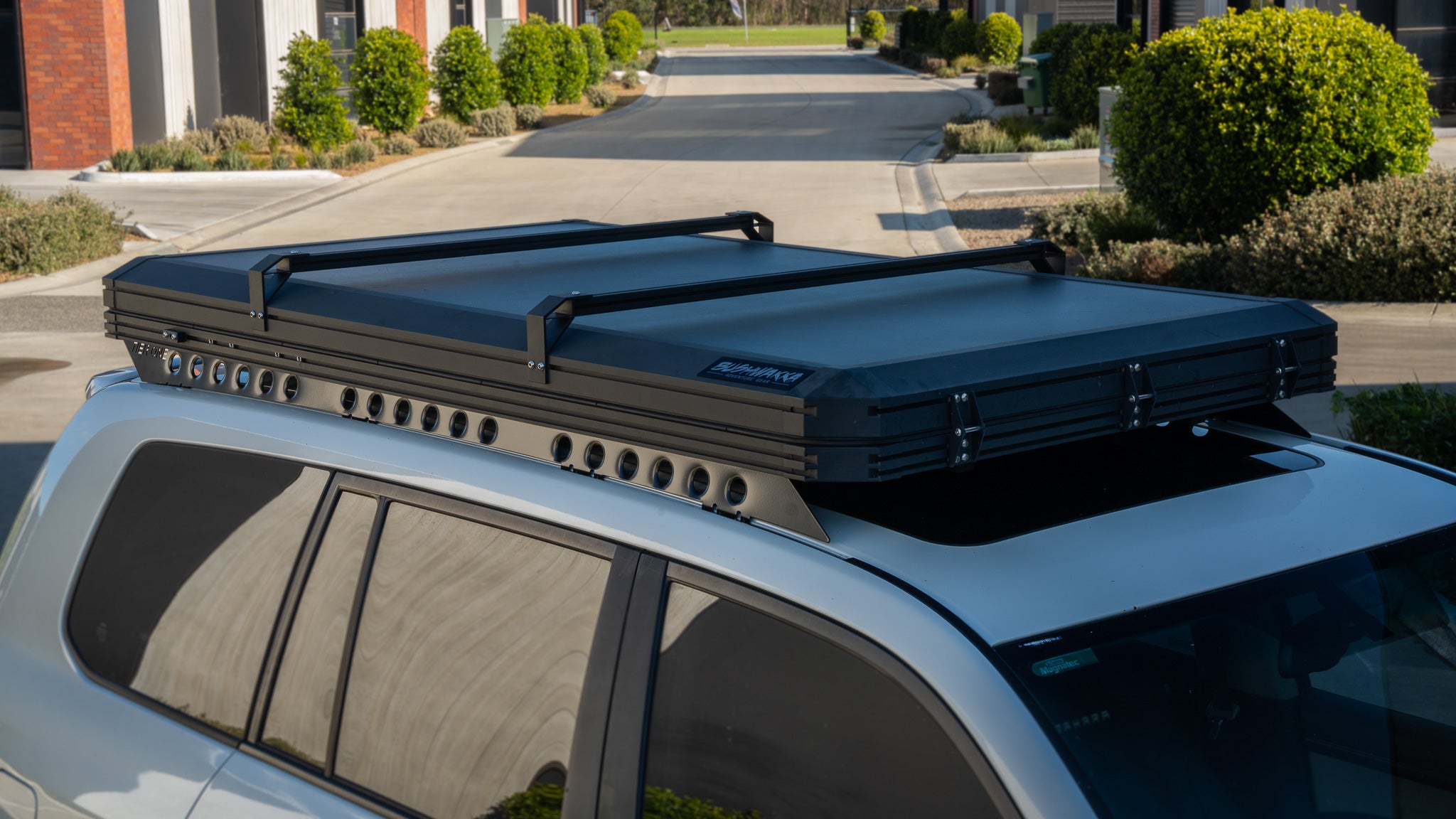

Direct Tent Mounting – For the lowest-profile setup, mount your rooftop tent directly to the rails (tent base modifications may be required).

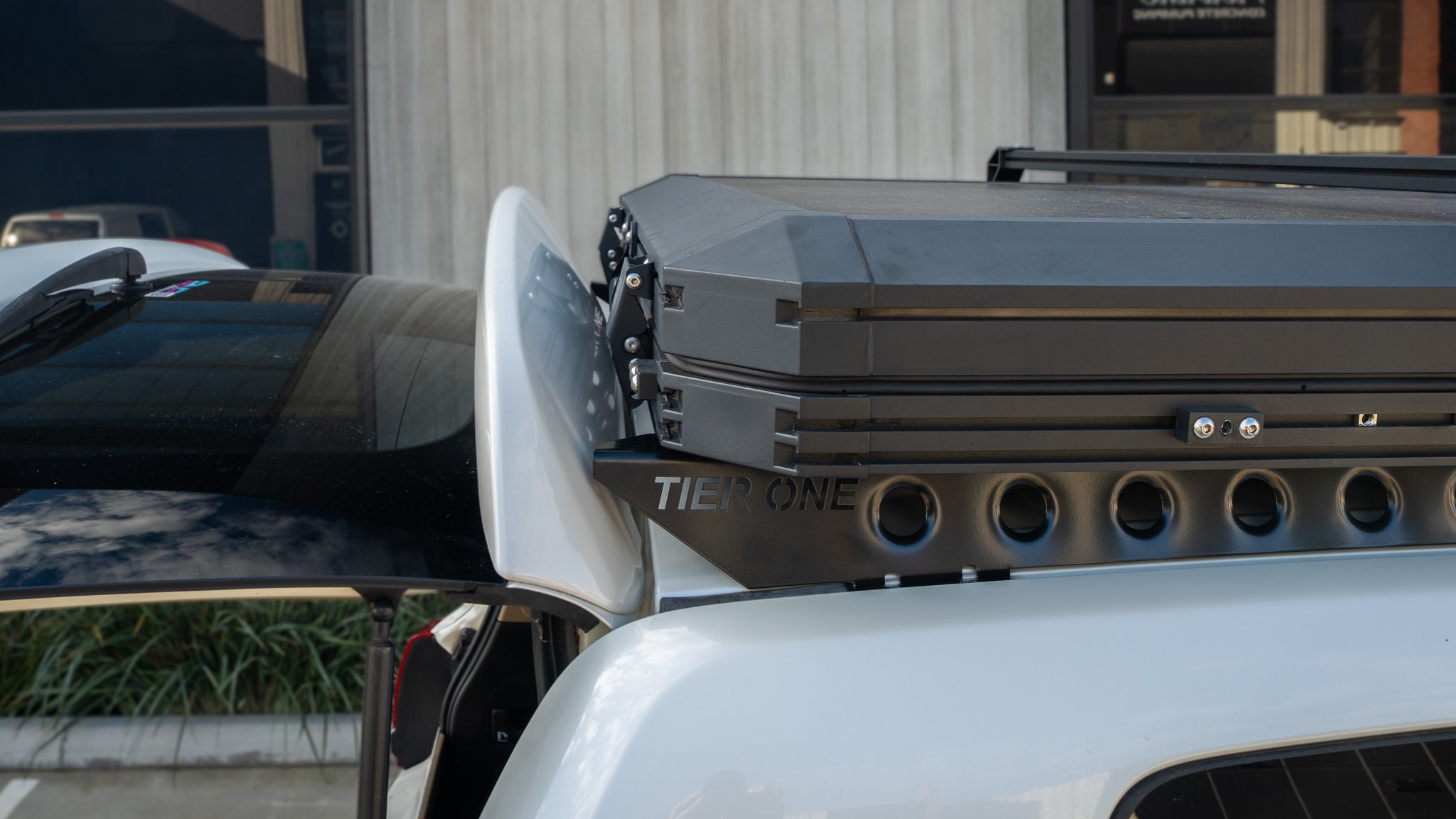

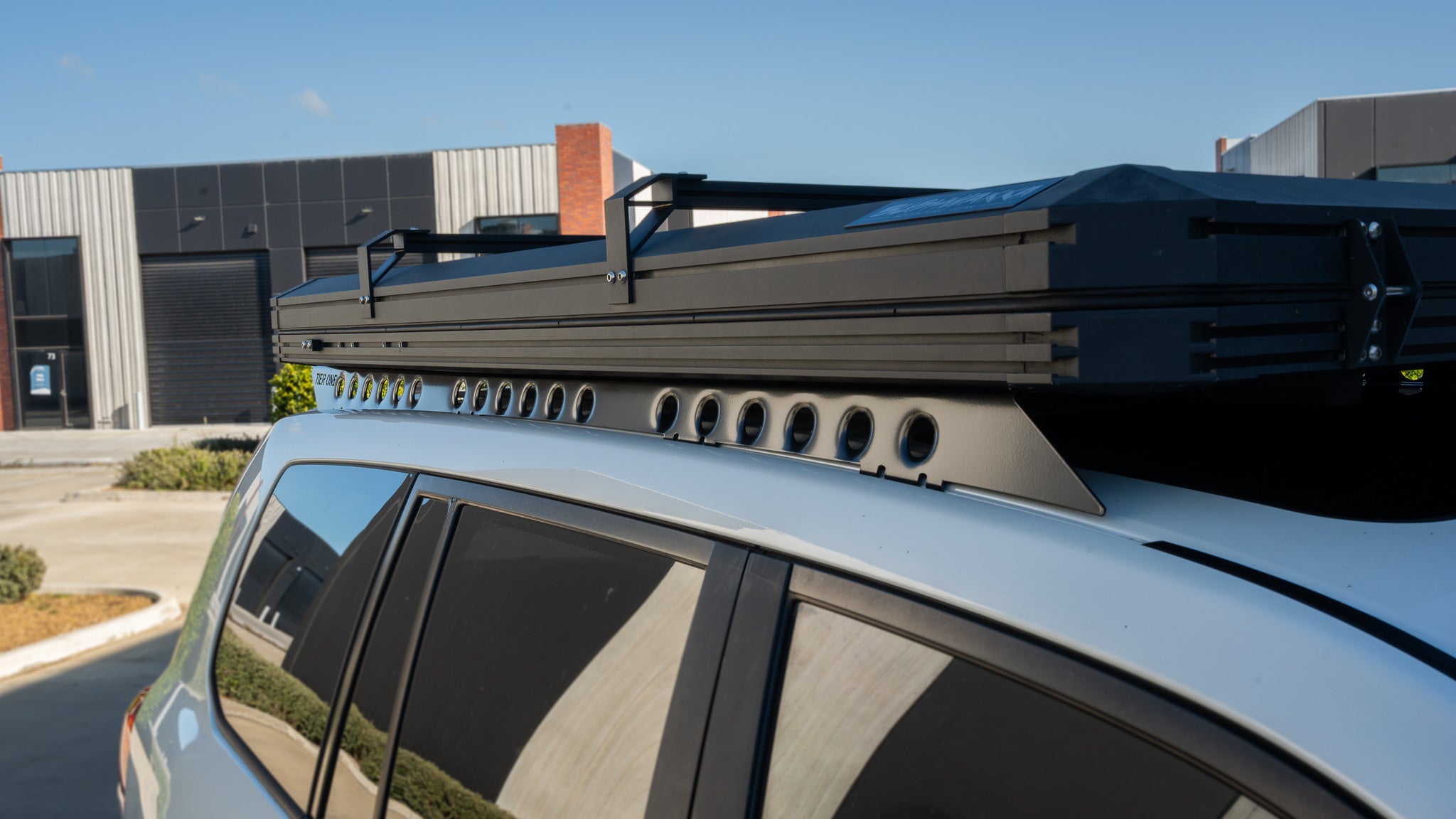

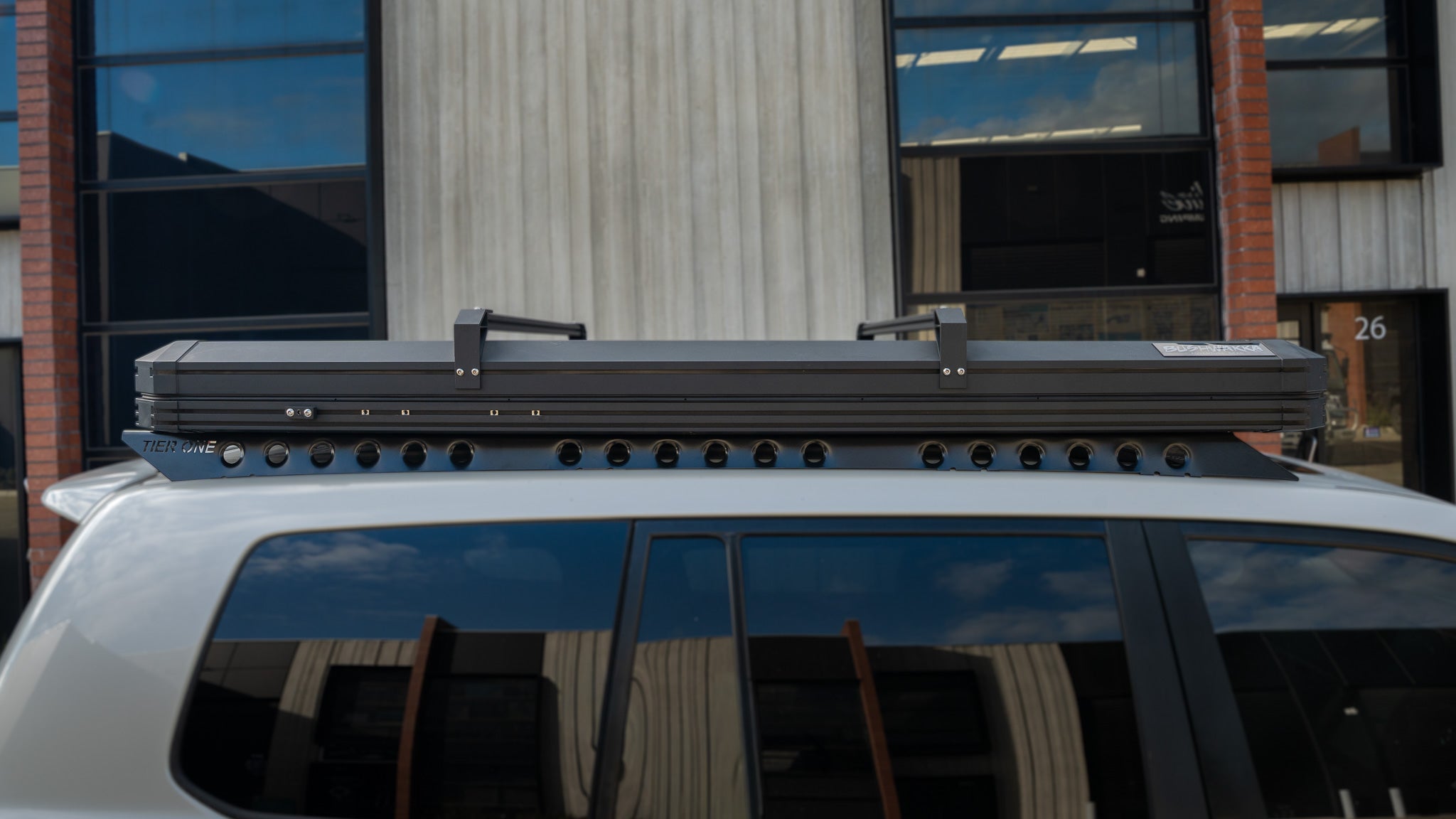

Unlike many other systems, we’ve designed our rails to use all four factory mounting positions for added strength. The one-piece rail design mounts directly to the roof using outward-facing feet, which makes install easier – particularly when direct-mounting a tent.
Each set of rails is built from 3mm stainless steel then powder coated satin black, a combination that delivers exceptional strength and long-term corrosion protection.
Ensuring a durable finish that stands up to the harshest Aussie conditions.
We don’t currently offer colour coding but can supply raw stainless steel rails at a reduced price for those chasing a custom finish.
Note: This listing includes the side rails only. Rear wings and cross bars are sold separately.
Additional Features:
- Internal Rail Width: 1037mm (front) - 957mm (rear)
- Complete Kit: Includes all rubbers and 304 stainless steel hardware. Supplied bolts are 20mm long, suitable for roof racks and thin tent bases. (If directly mounting a tent, longer bolts and large washers may be needed.)
- Trimming Required: You may need to trim your factory roof trim to access the front mounting location – not all models come pre-cut.
- Accessories Sold Separately: Cross bars, rear wings, and brackets are sold separately for full customization.
-
Detailed fitting instructions available below:
If you’re unsure about fitment or your setup, contact us anytime — we’re always happy to help you get it right the first time.
Specifications
- Top Of Rail Length: 2040mm
- Complete Length: 2150mm
- Internal Rail Width: 1037mm (front) - 957mm (rear)
- External Width (at top of rail): 1147mm (front) - 1067mm (rear)
- Top Of Rail Width: 55mm
- Clerance: 25mm if you run a level from side to side there is a 25mm gap from the highest point in the roof to the top of the rail sides
- Material: 3mm Stainless Steel
- Finish: Satin Black Powder Coat
- Hardware: 304 Stainless Steel
- Included: Rubber pinch weld and powder-coated black hardware
- Weight: 10.5 kg (pair of rails)
Need Help?
Got questions or unsure about your setup?
Reach out — our team’s here to help. We’ve seen just about every tent and rack combo out there and can point you in the right direction.
Disclaimer
Use this product at your own risk. Tier One Metalworks is not liable for any damage or injury resulting from use or installation.
These rails are not currently load-rated — please check your rooftop tent or rack manufacturer’s guidelines before fitting.
For Instructions and further information, click the link below, we've created a whole page dedicated to instructions and additional fitting information to make the process easier
