Awning Brackets

$80.00

5 reviews
SKU: AW-S1-2
Car Model
Style
Quantity

 1-2 Week Dispatch Delay due to an increase in orders

Tier One Metalworks Awning Brackets

Our Tier One Metalworks Awning Brackets are specifically designed to suit our Roof Rack Rails.
All wagon-style rails come with pre-installed fixings built into the rails, allowing these brackets to be mounted quickly and securely — no drilling, no guesswork.

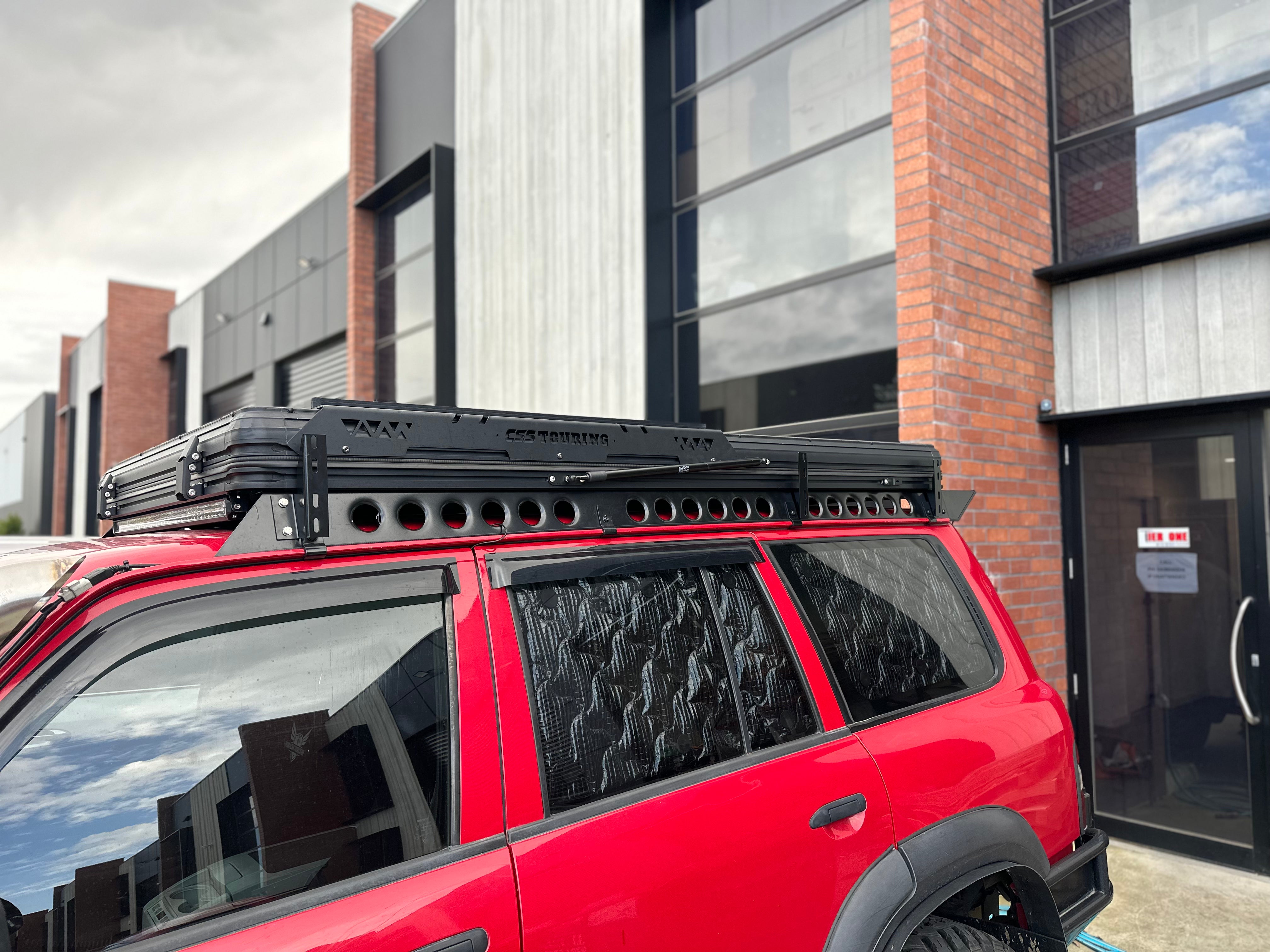

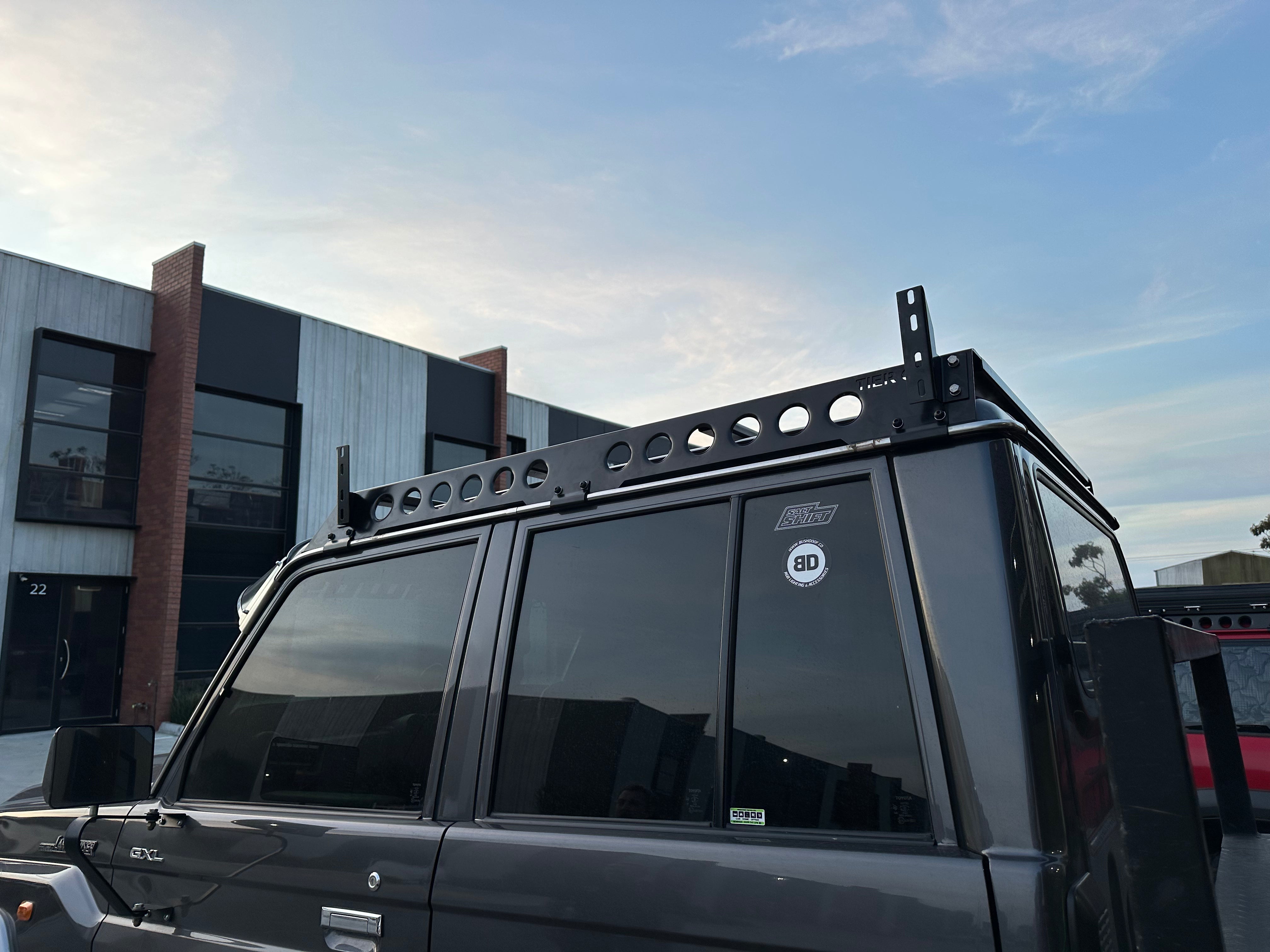

Bracket Styles Available

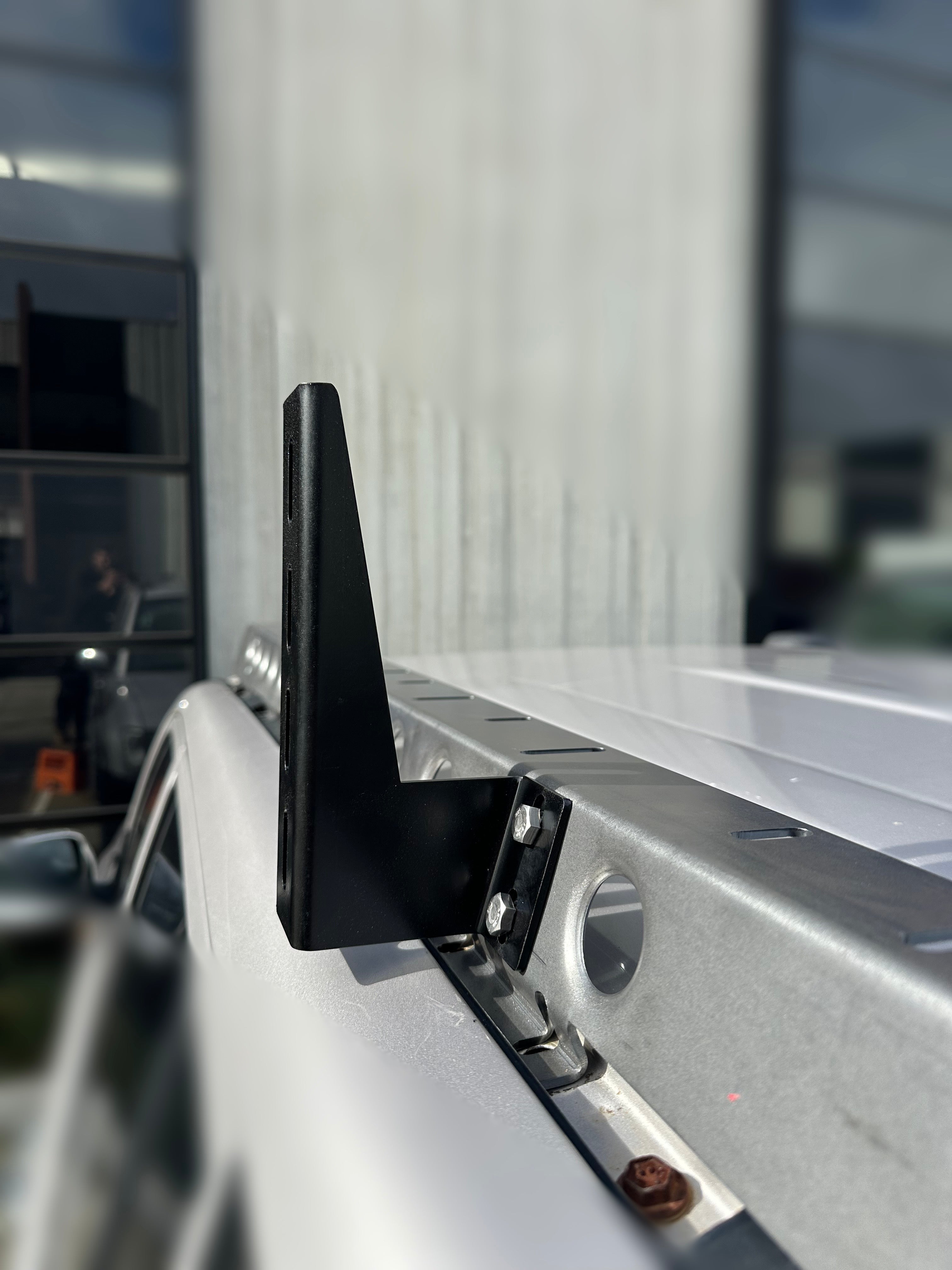

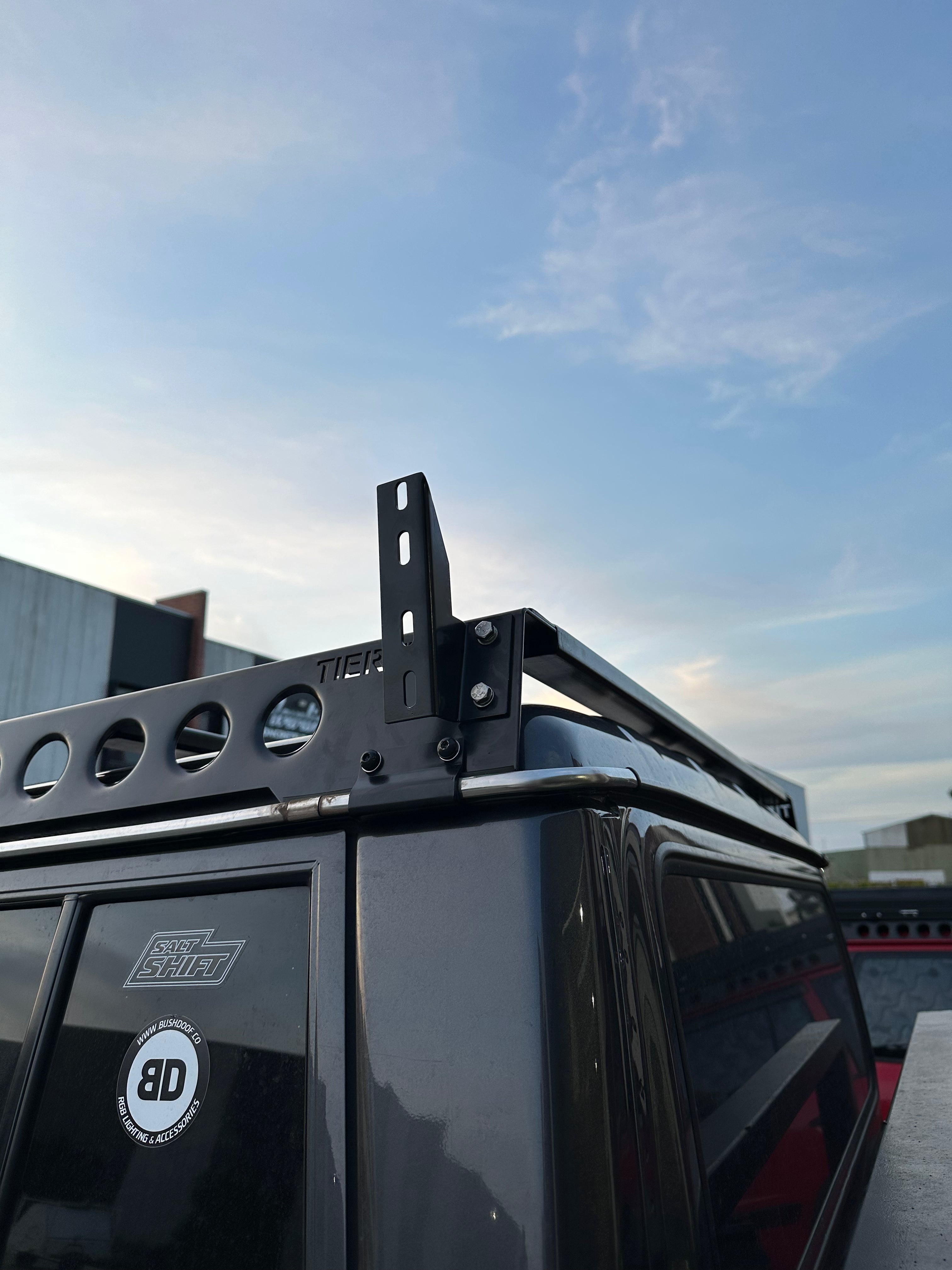

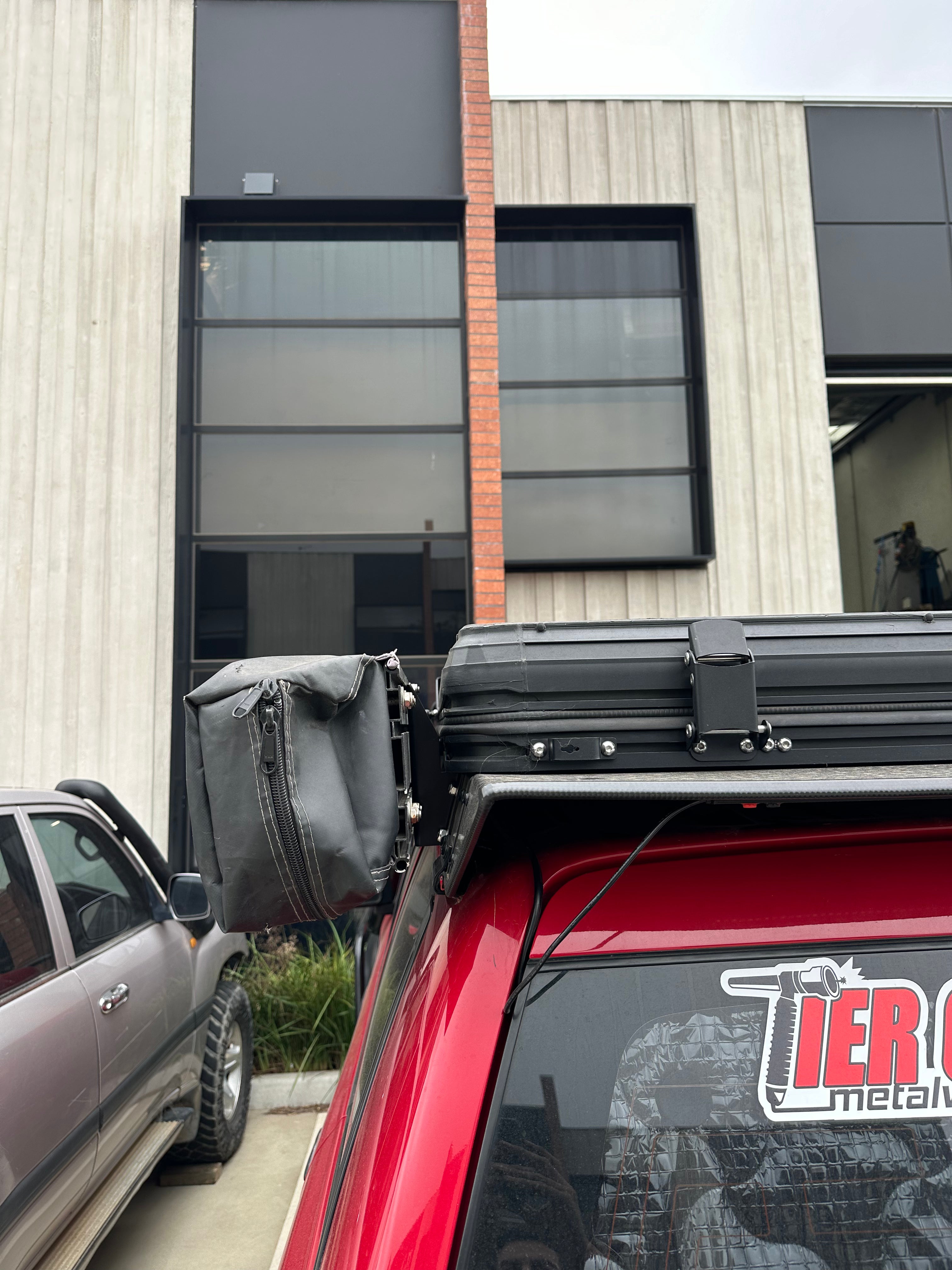

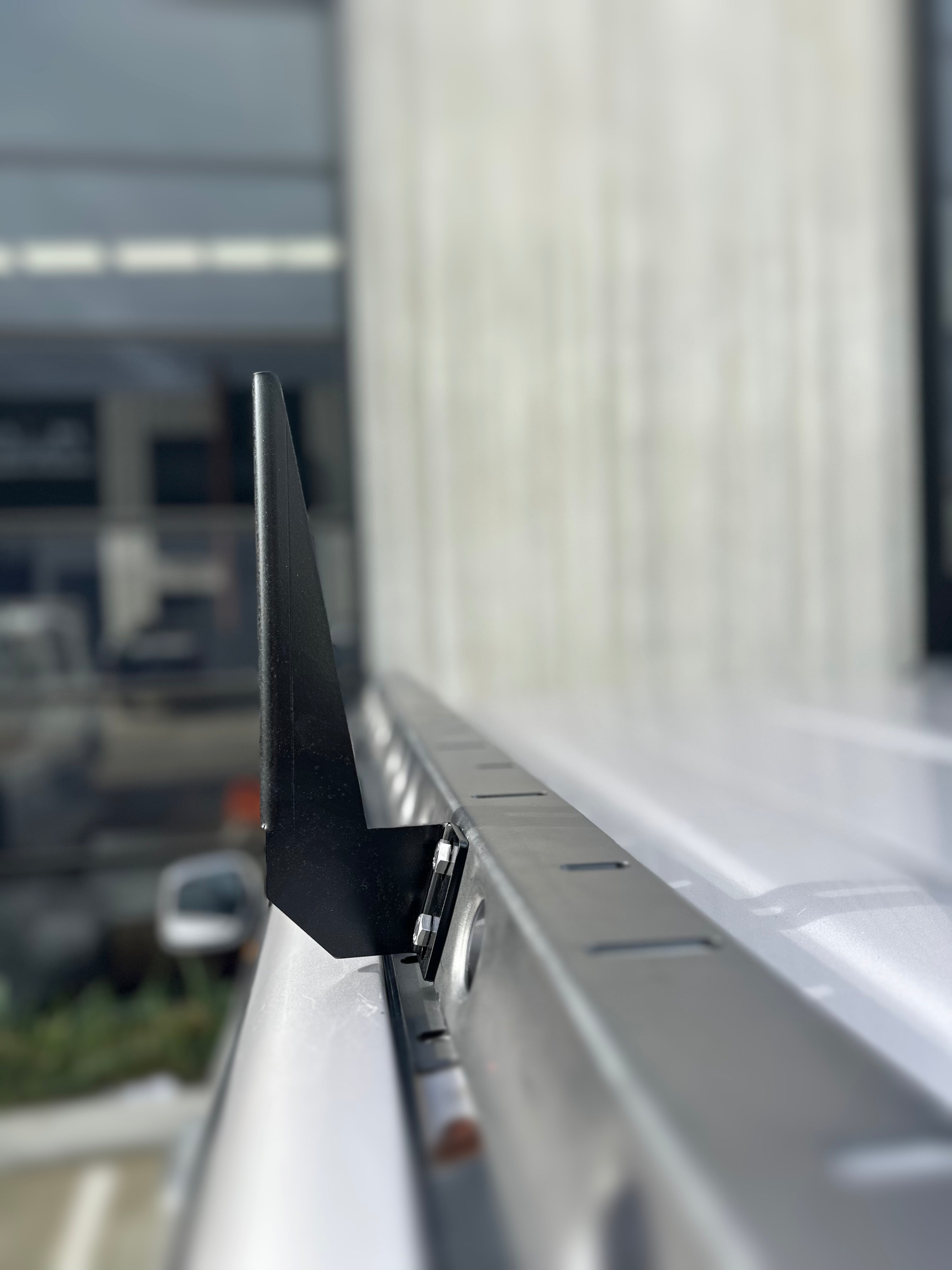

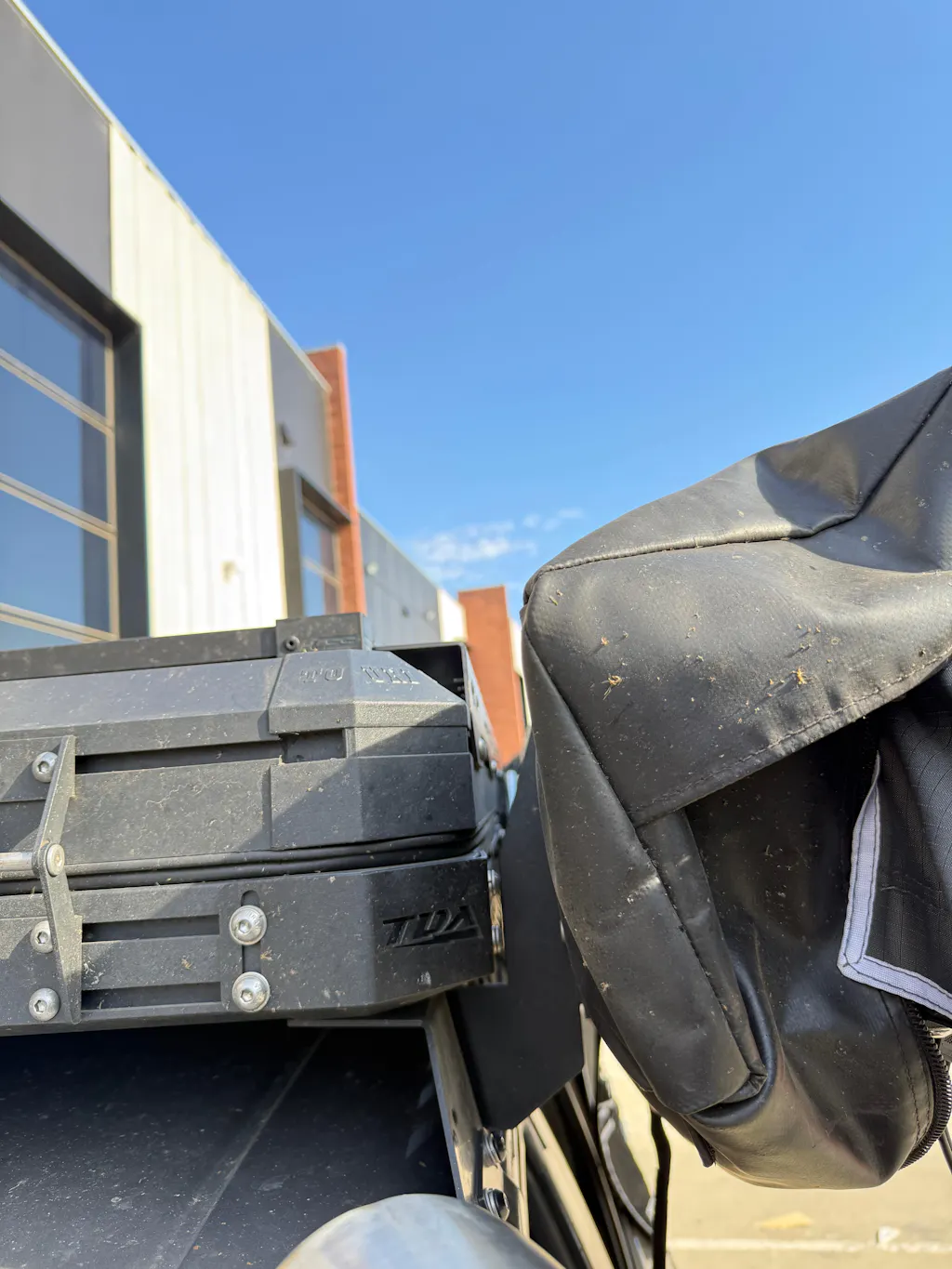

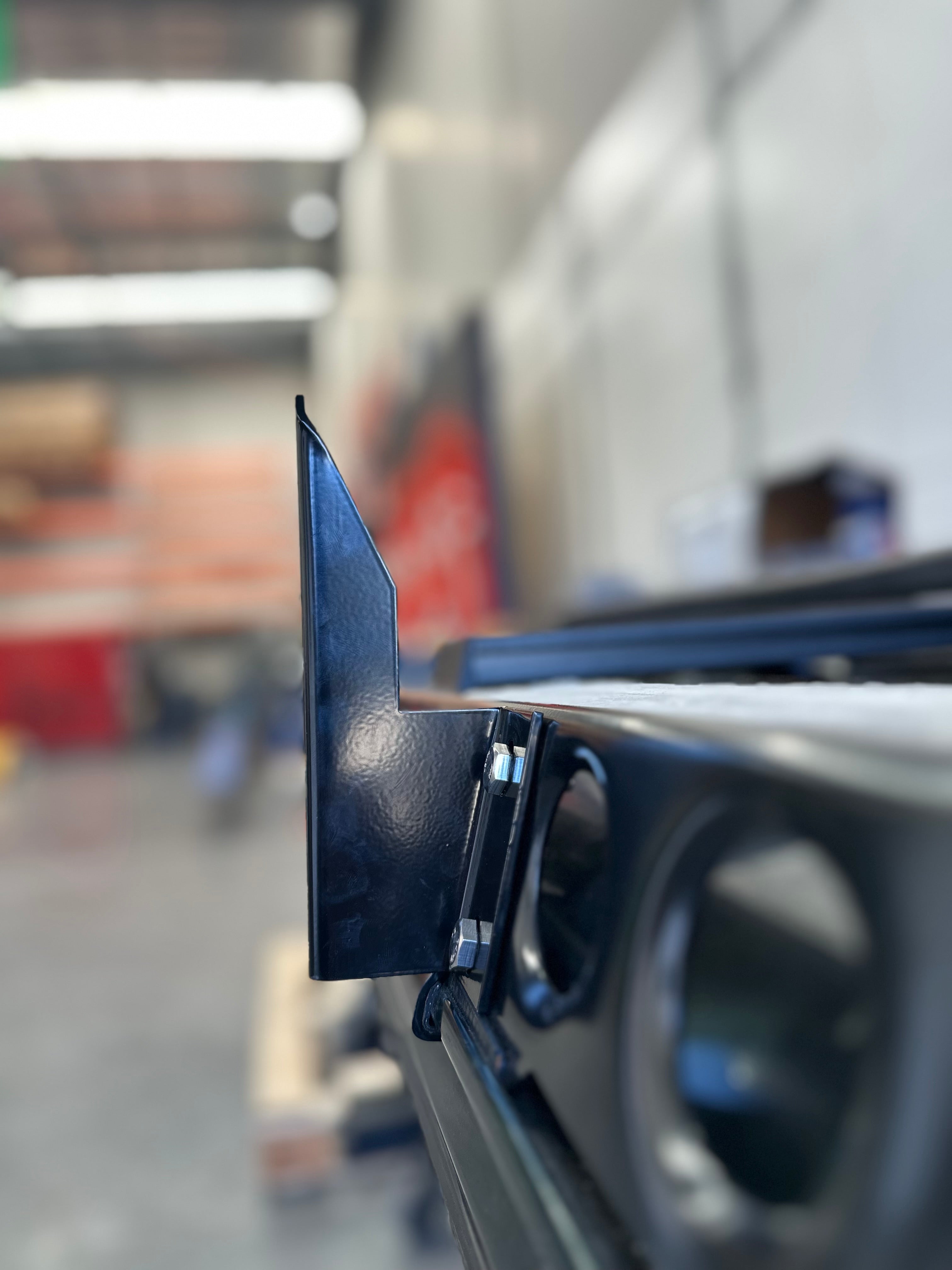

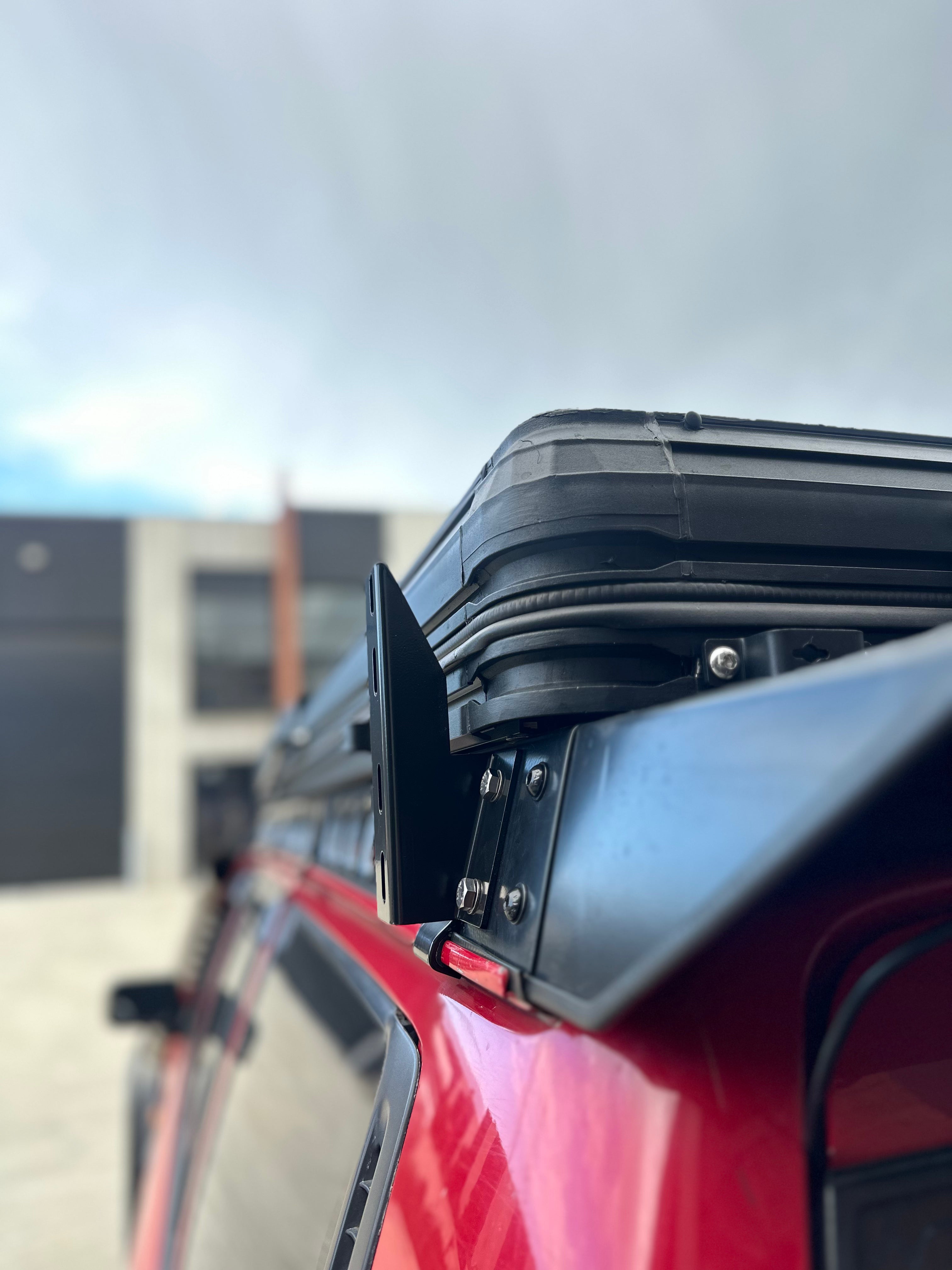

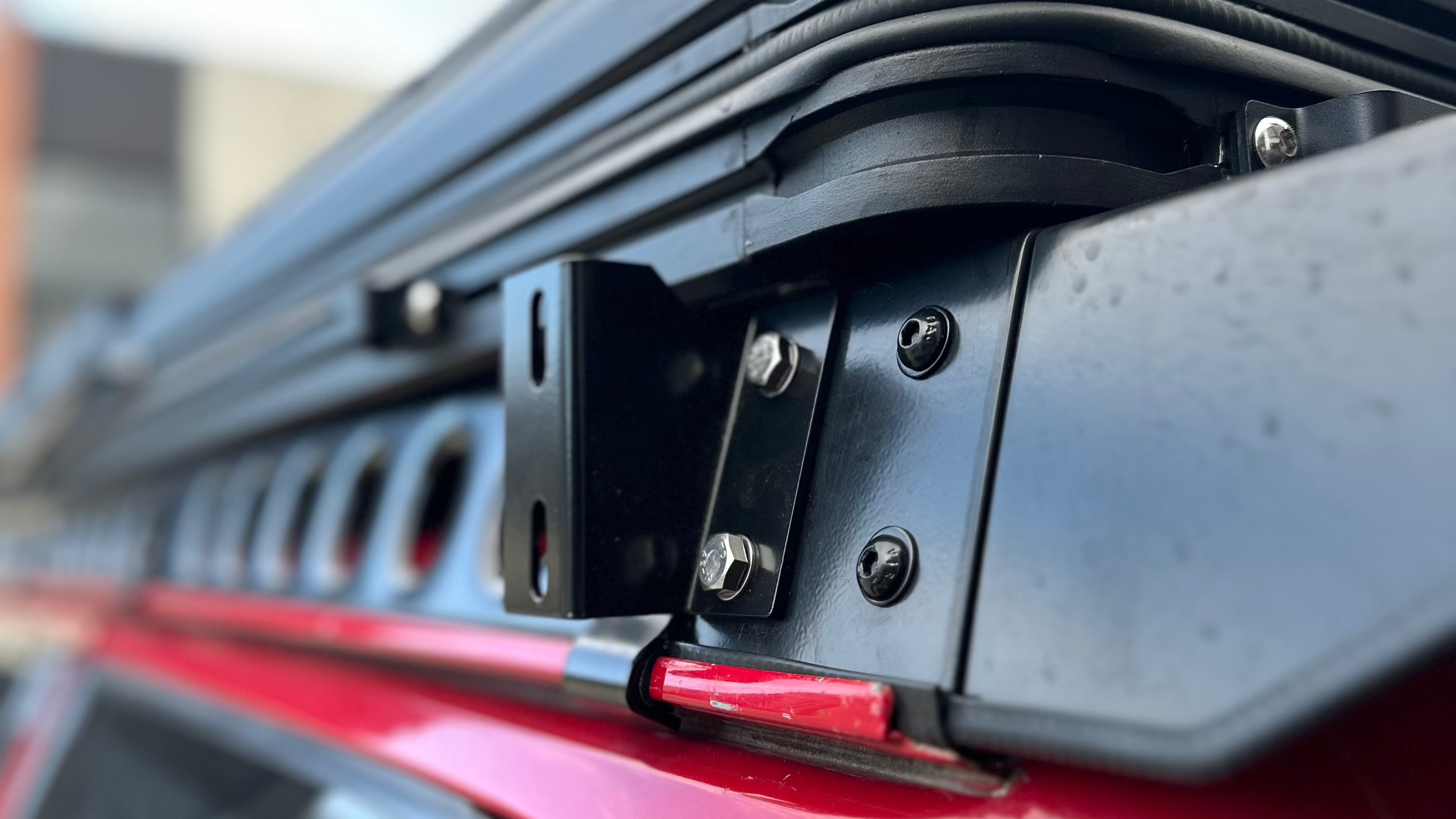

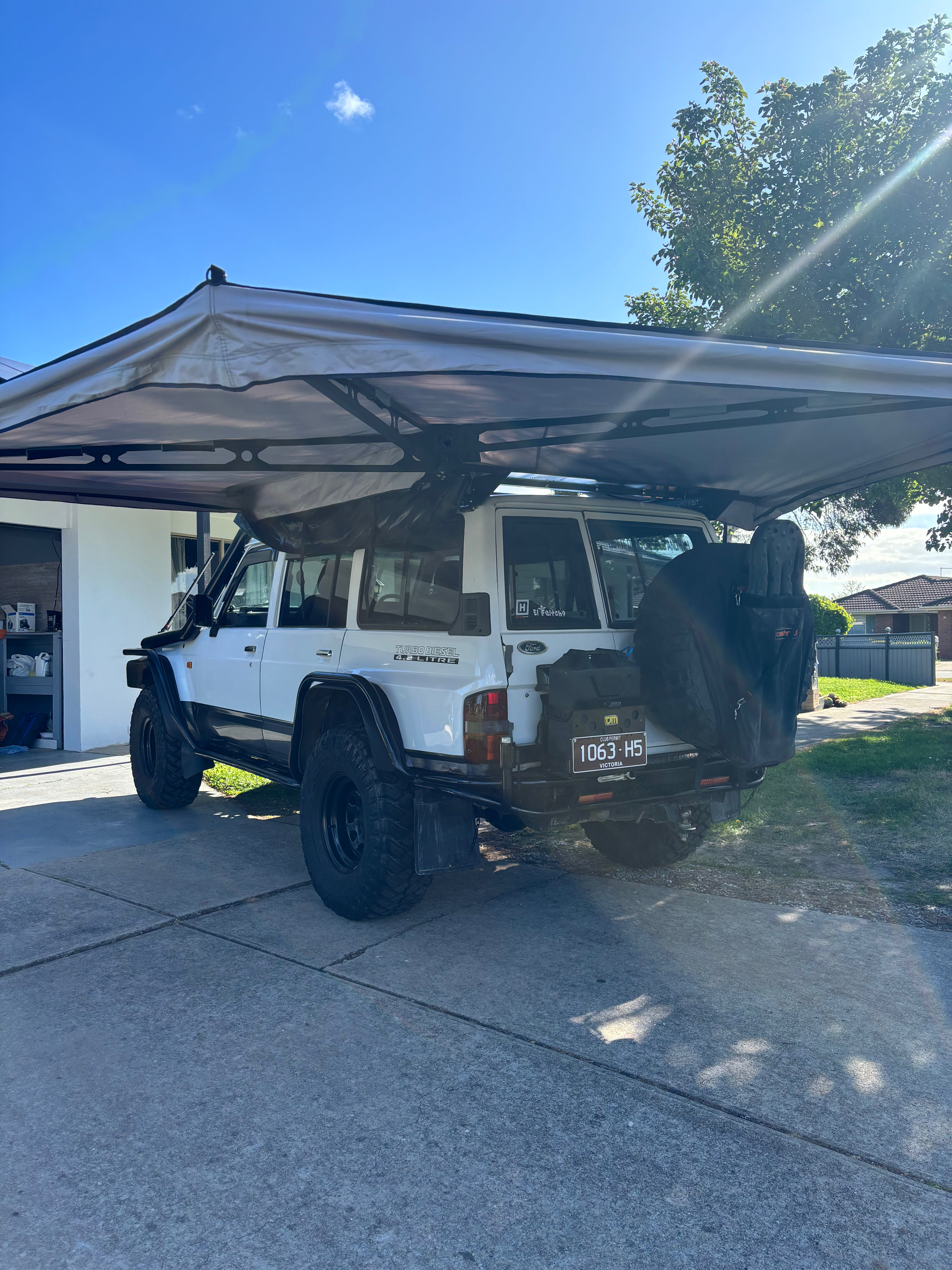

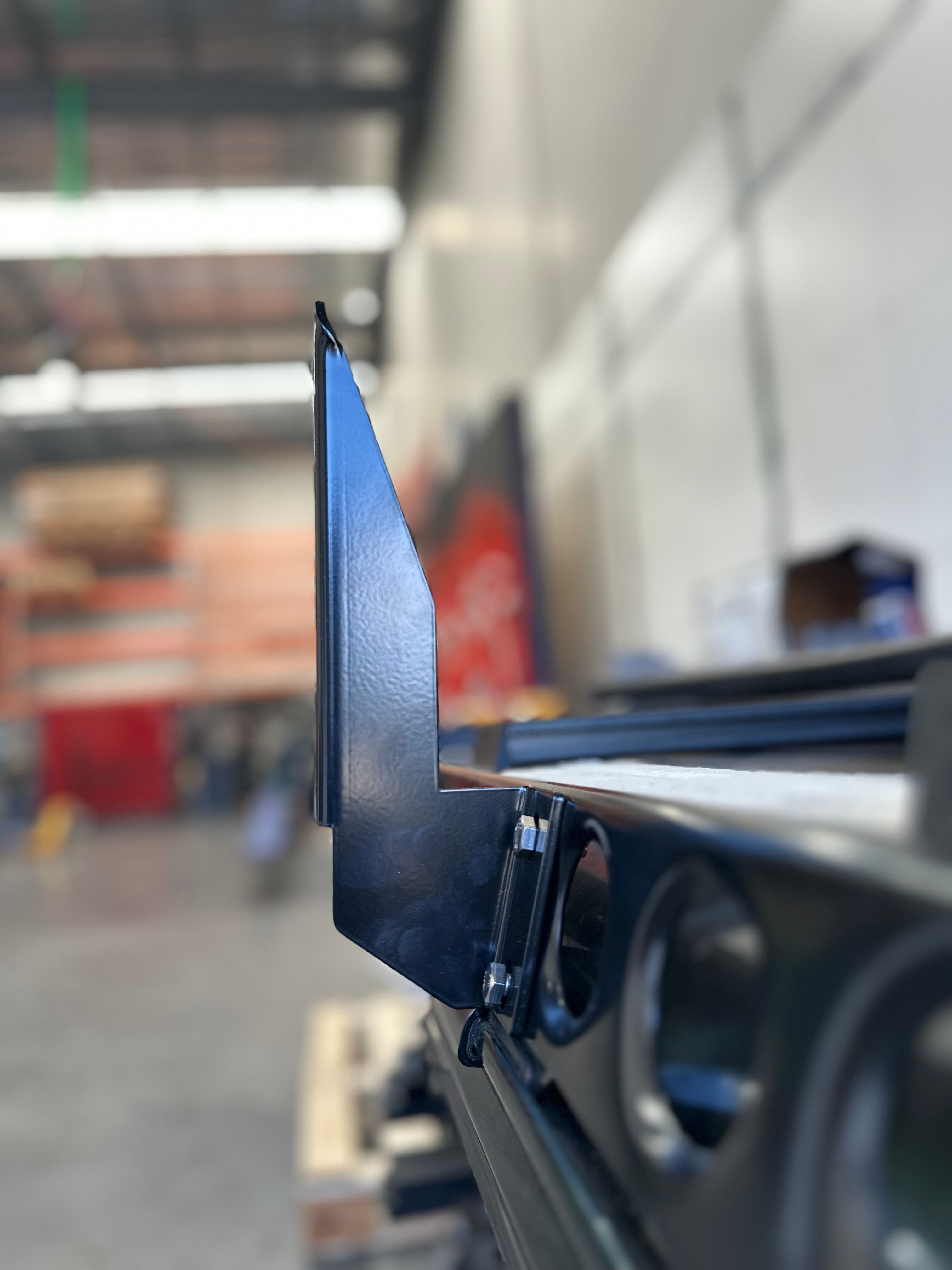

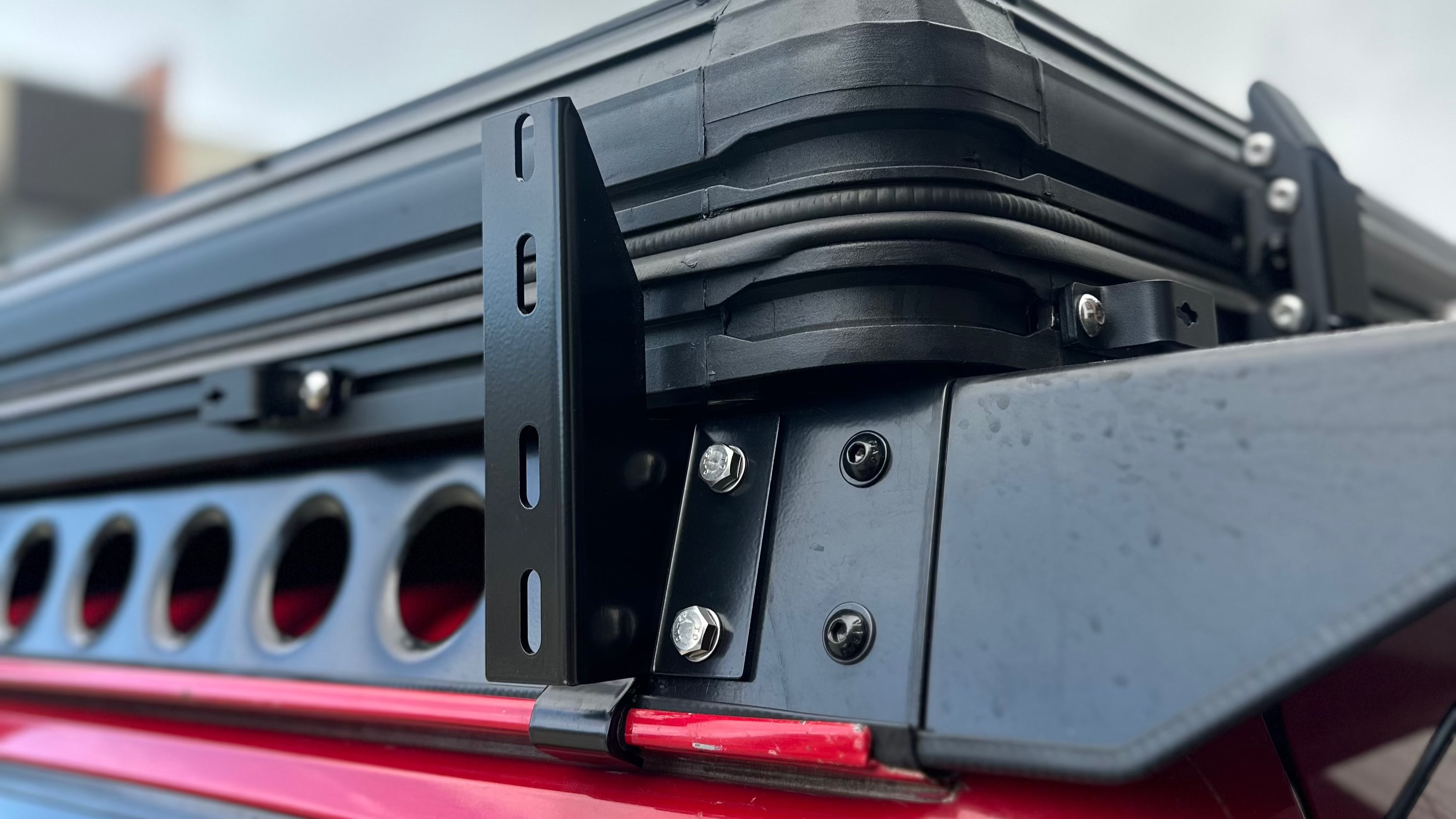

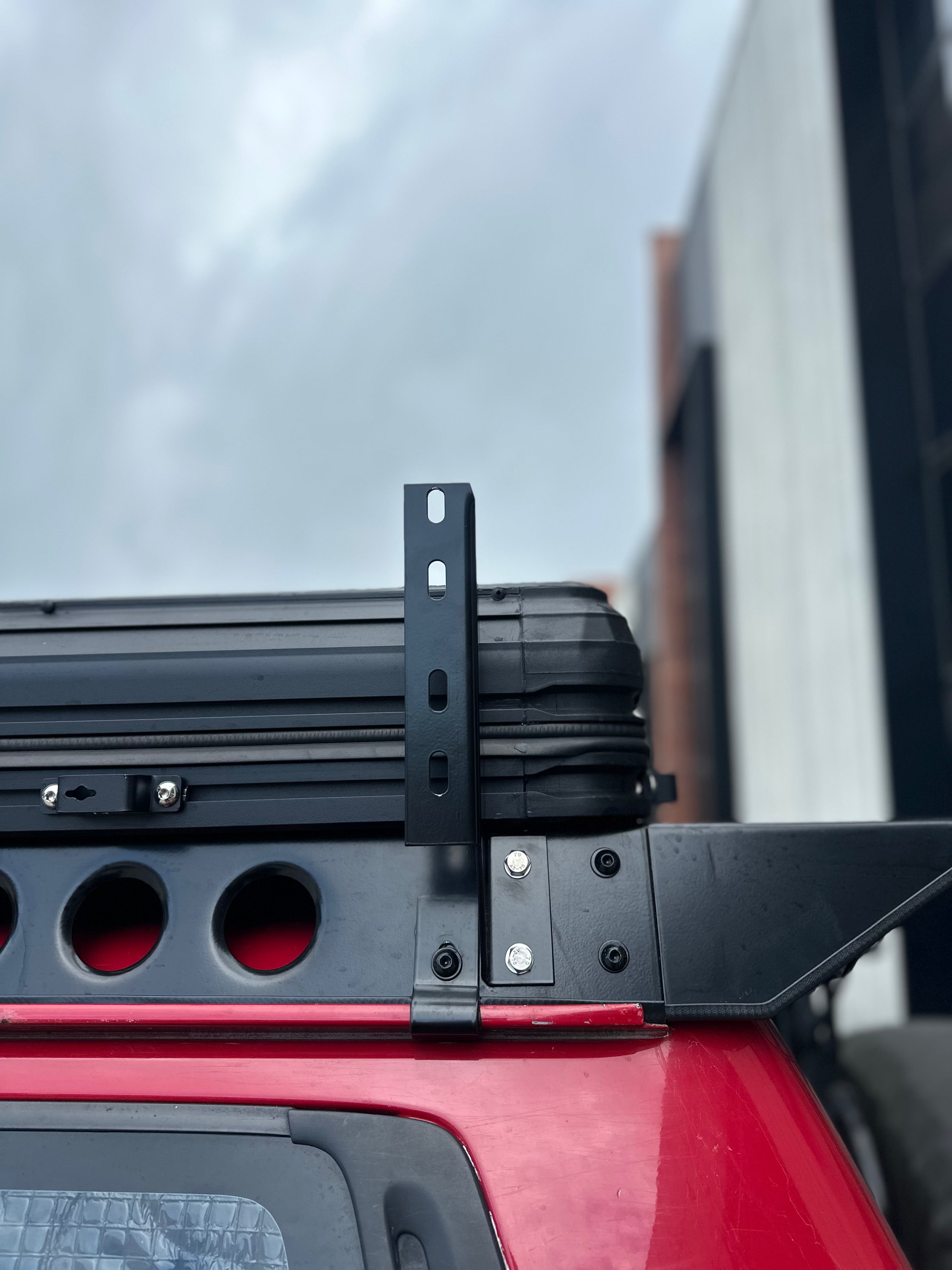

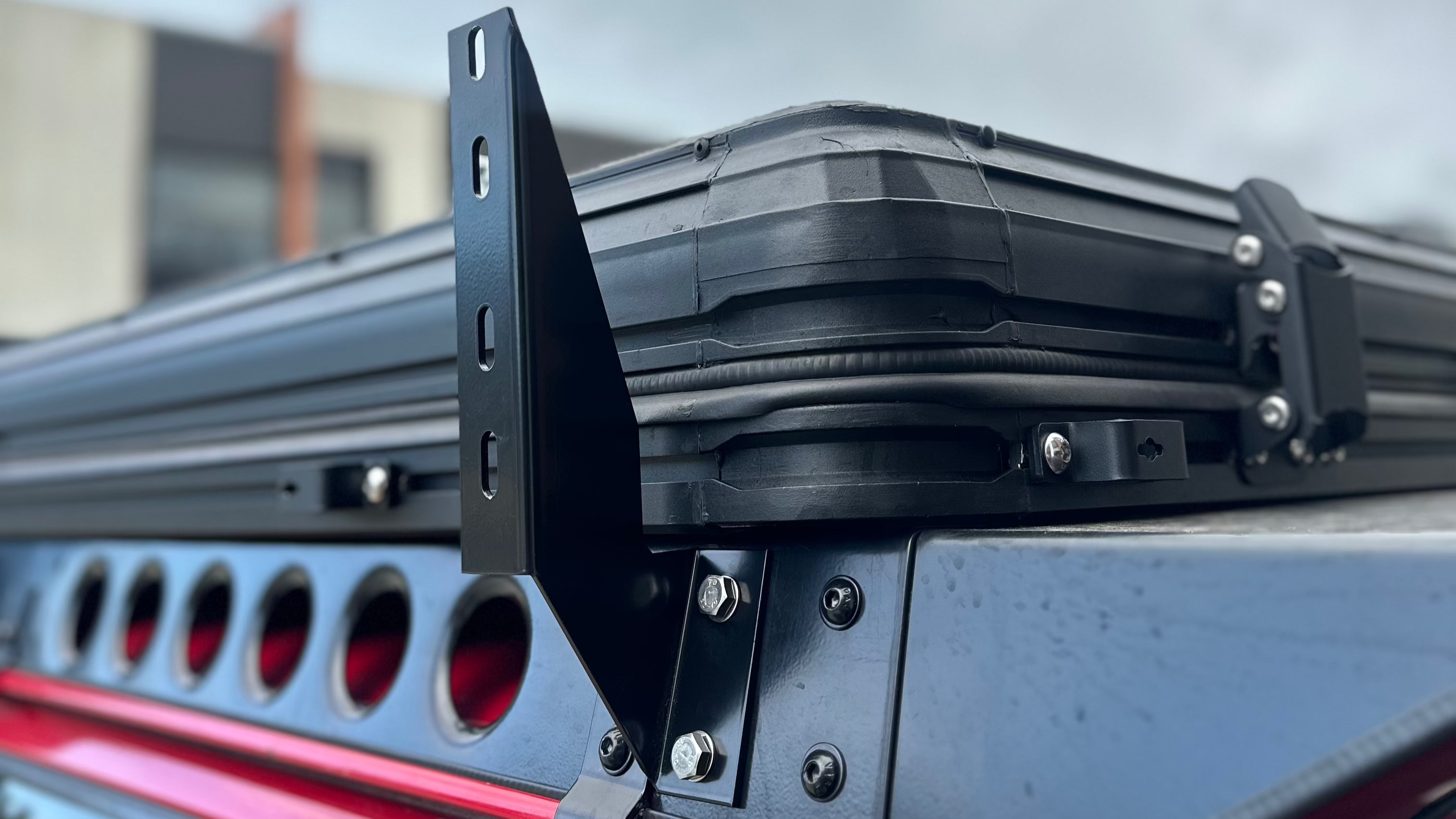

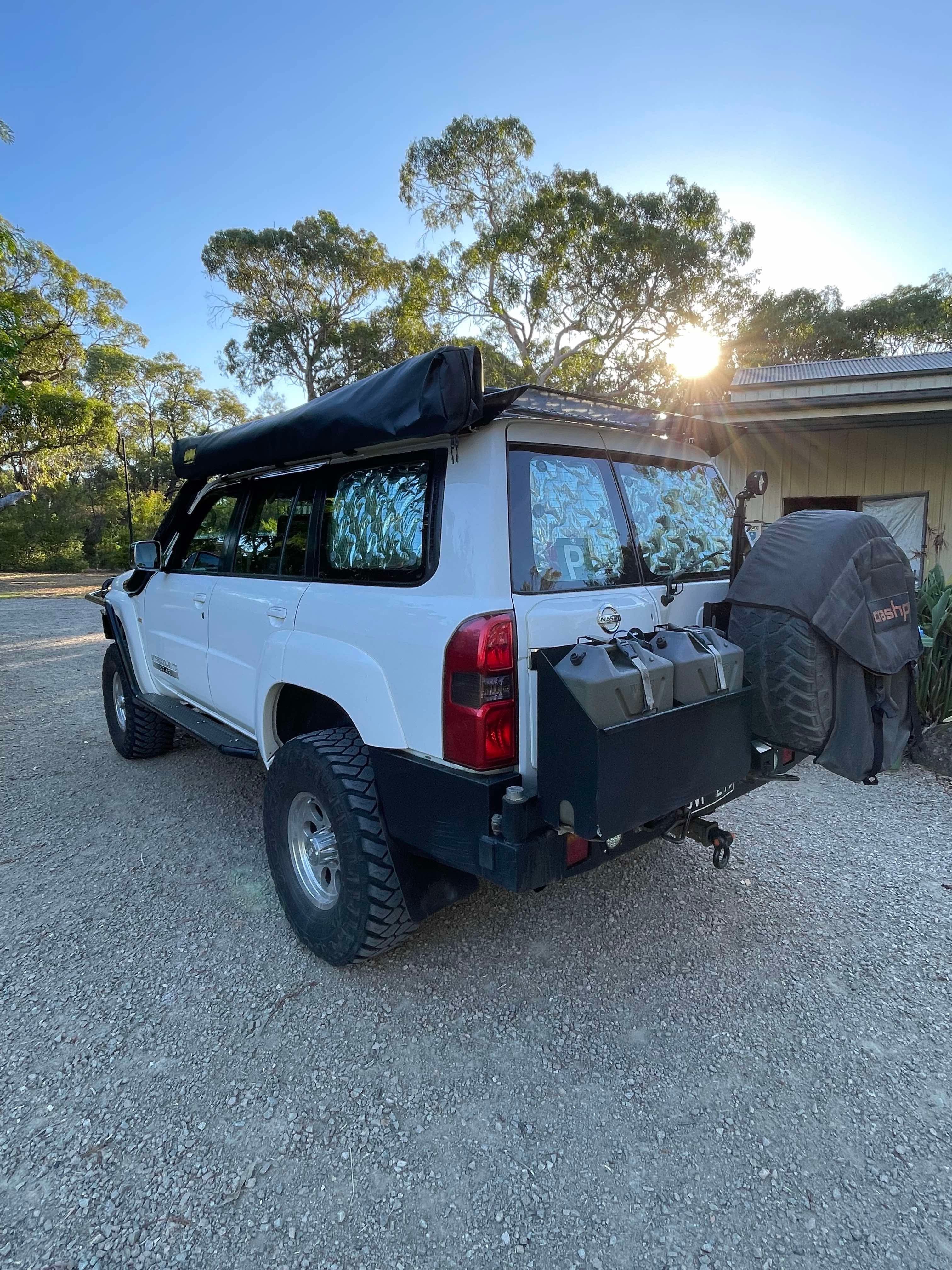

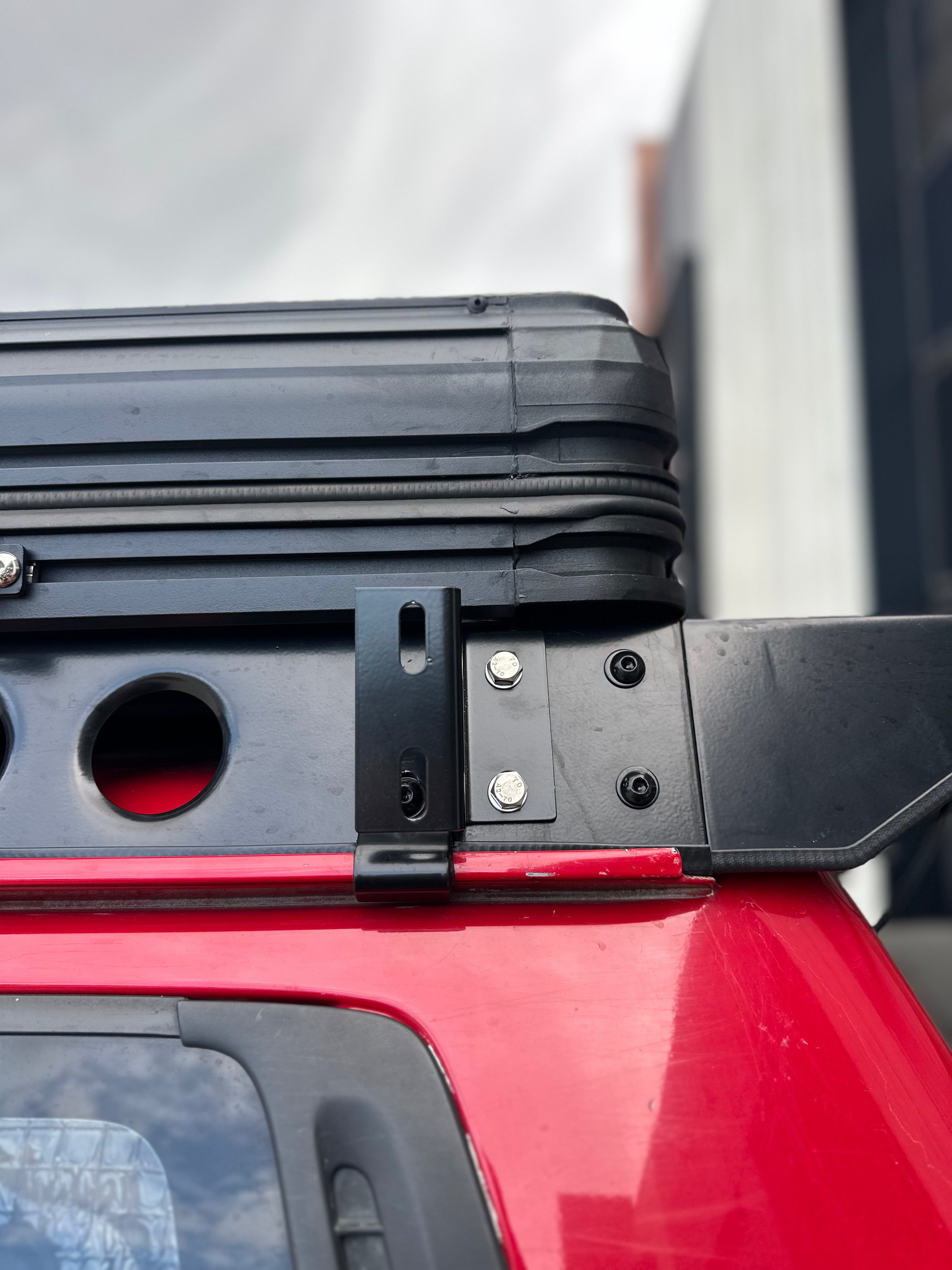

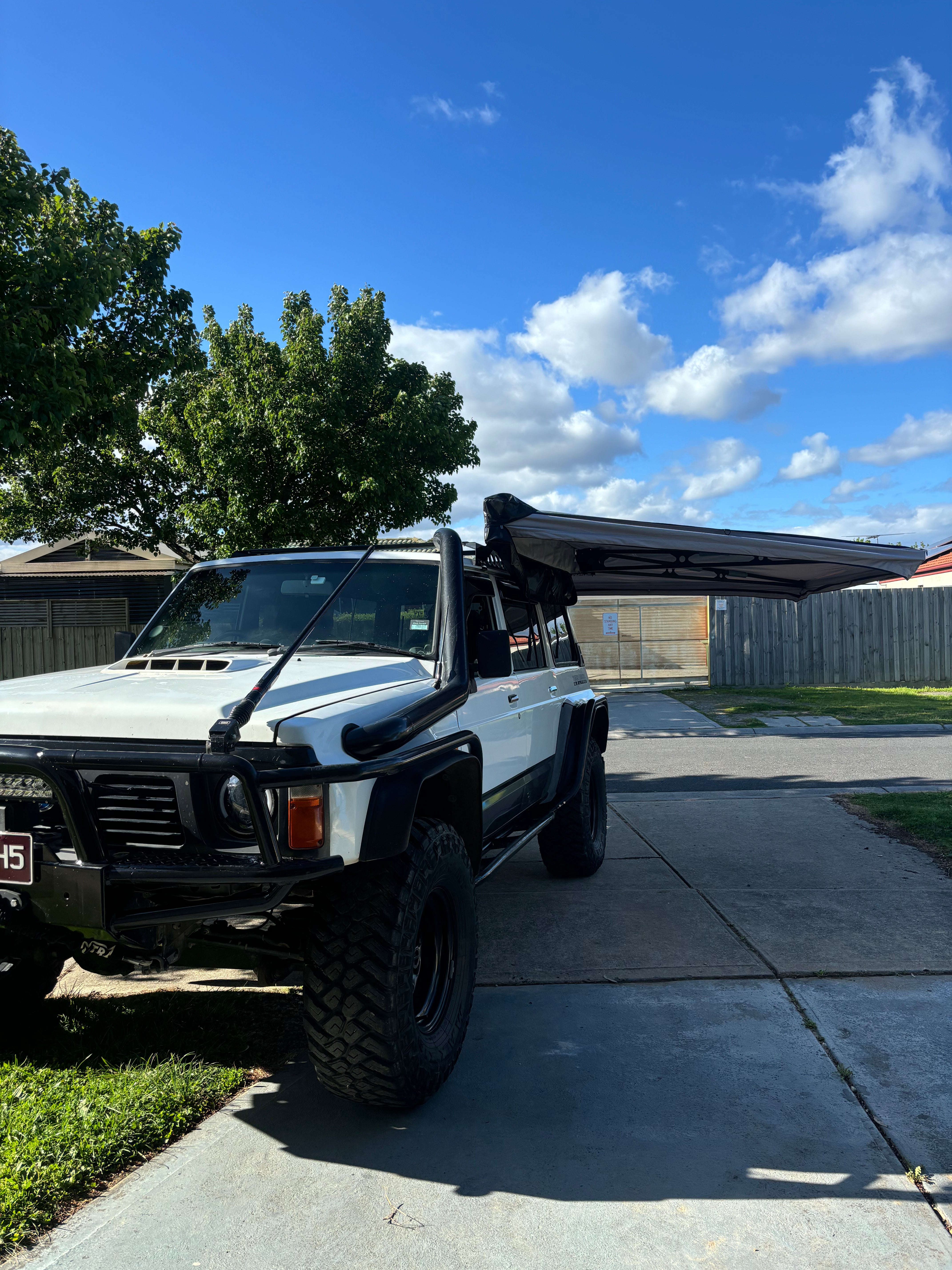

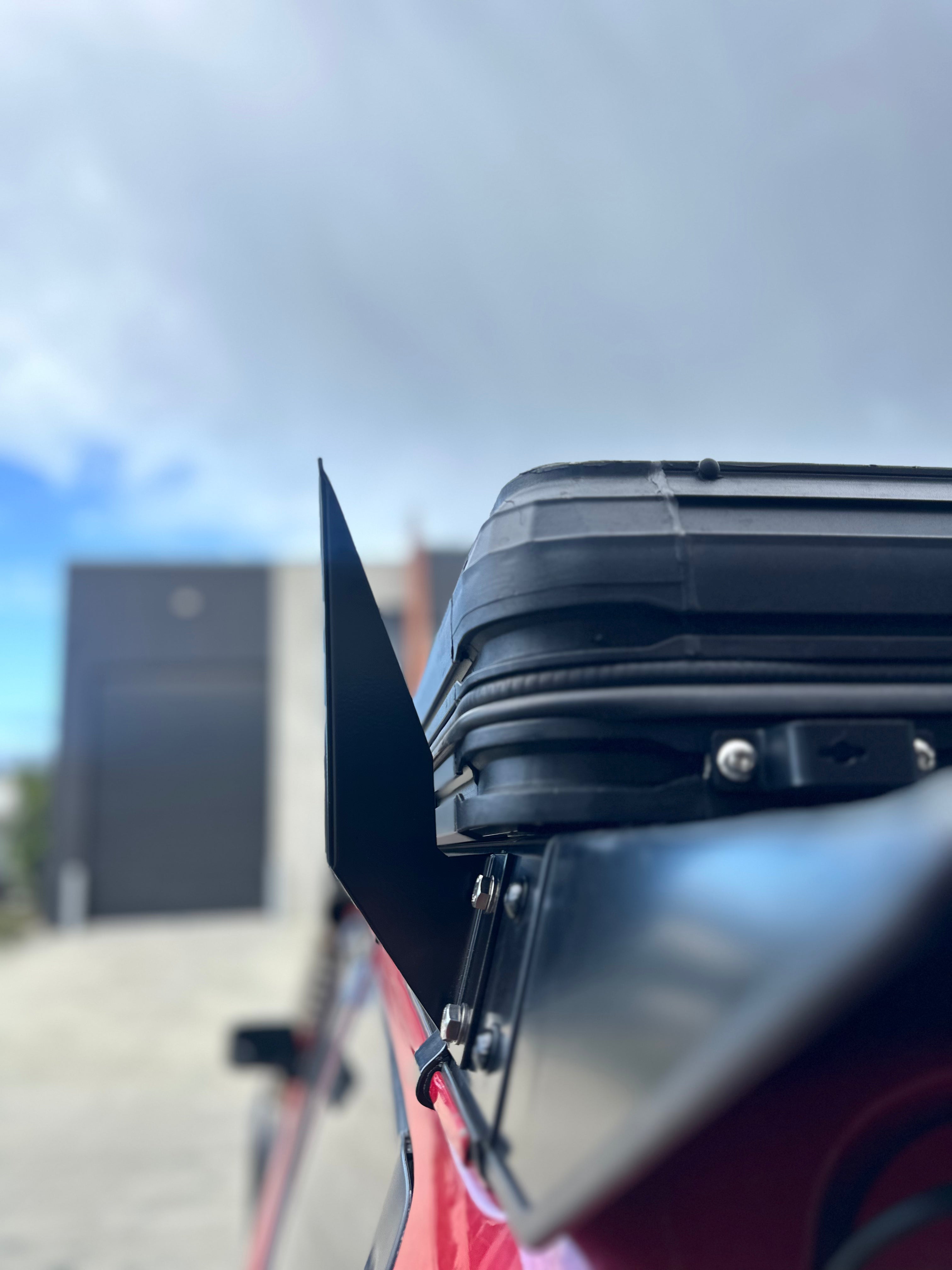

  • Style 1: Designed for 270º awnings with slim arms, allowing clearance from the rear wing.

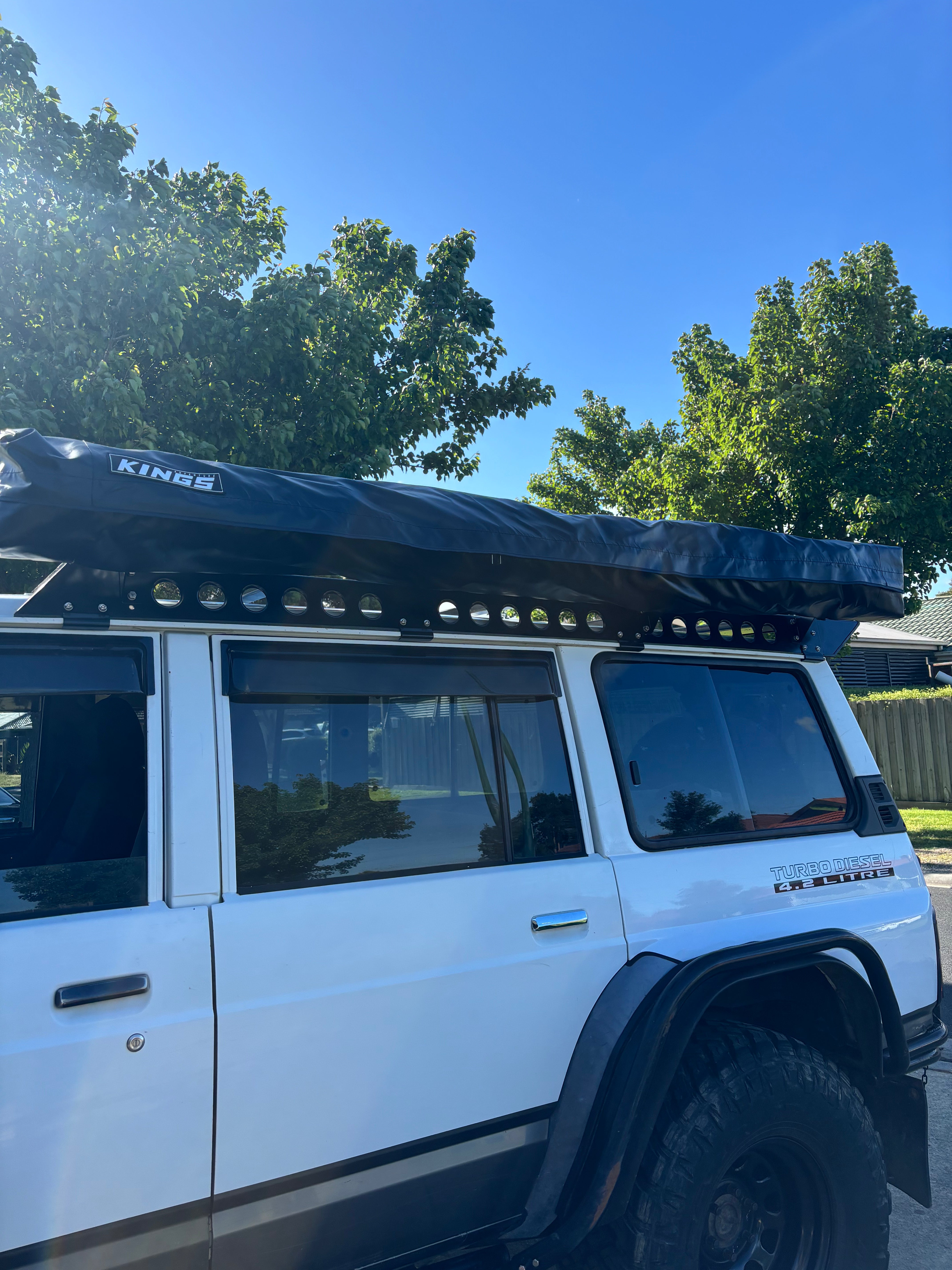

    Ideal for Bushwakka Extreme, Darche, or Kings (when flipping the arms).

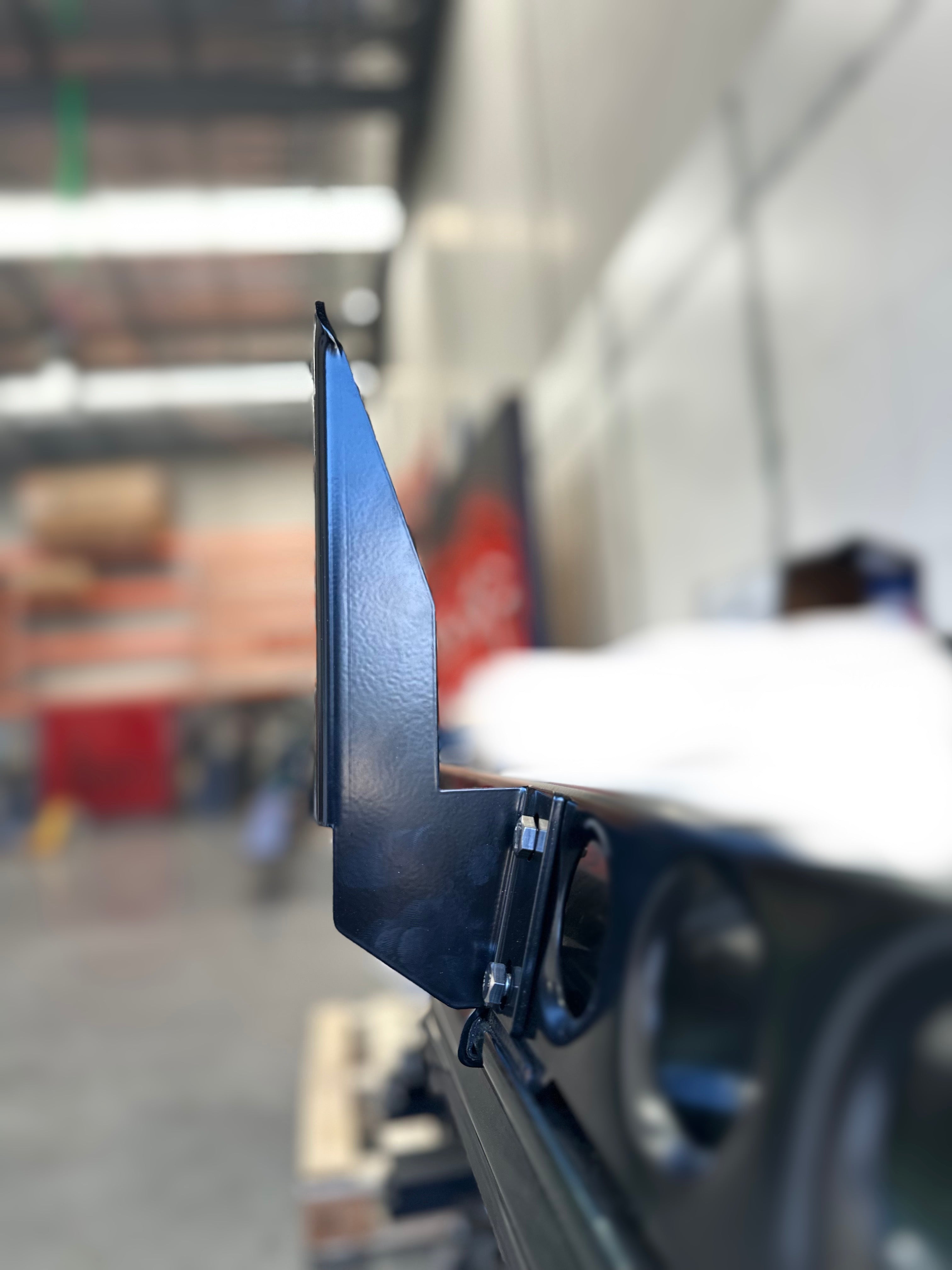

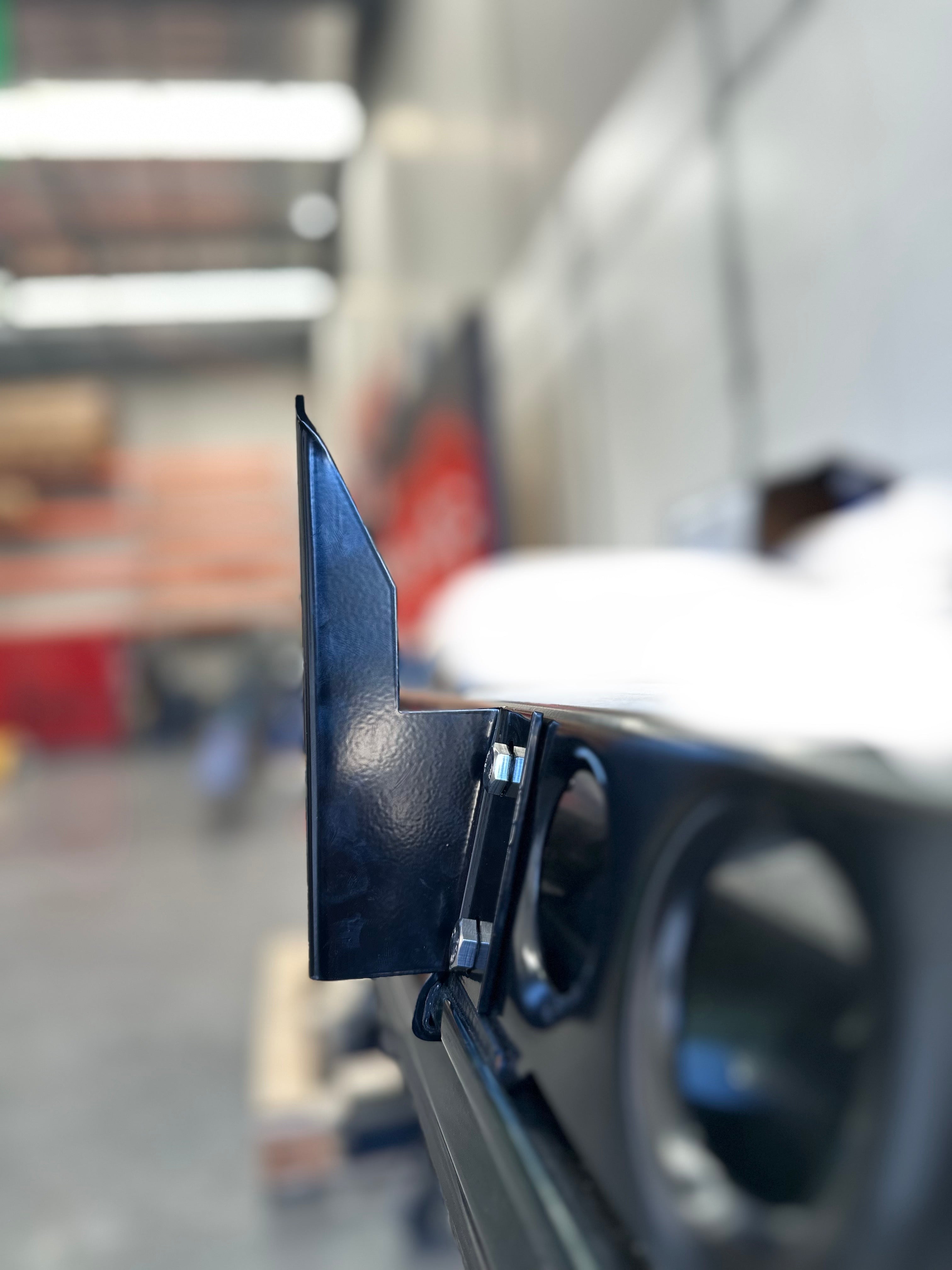

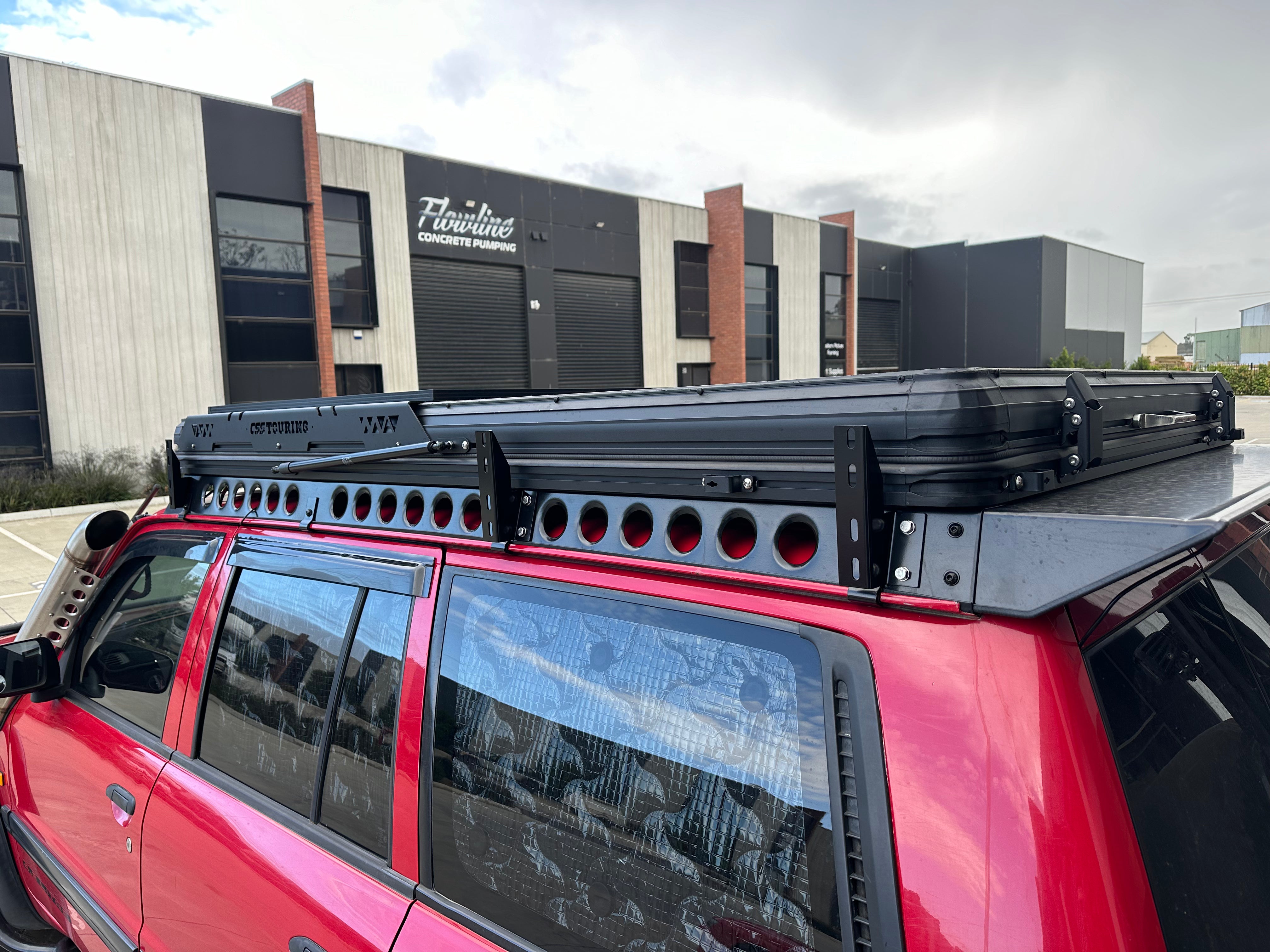

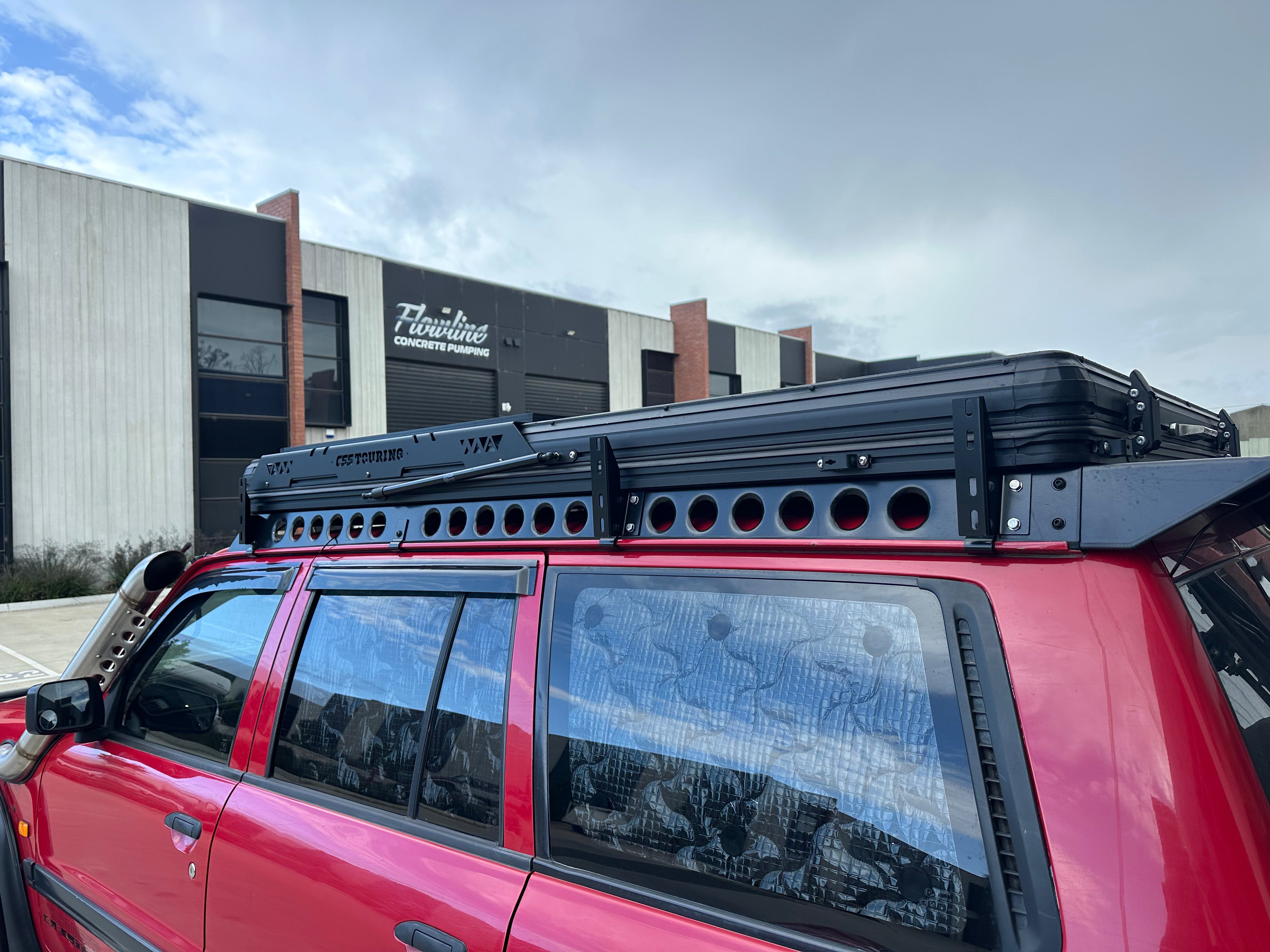

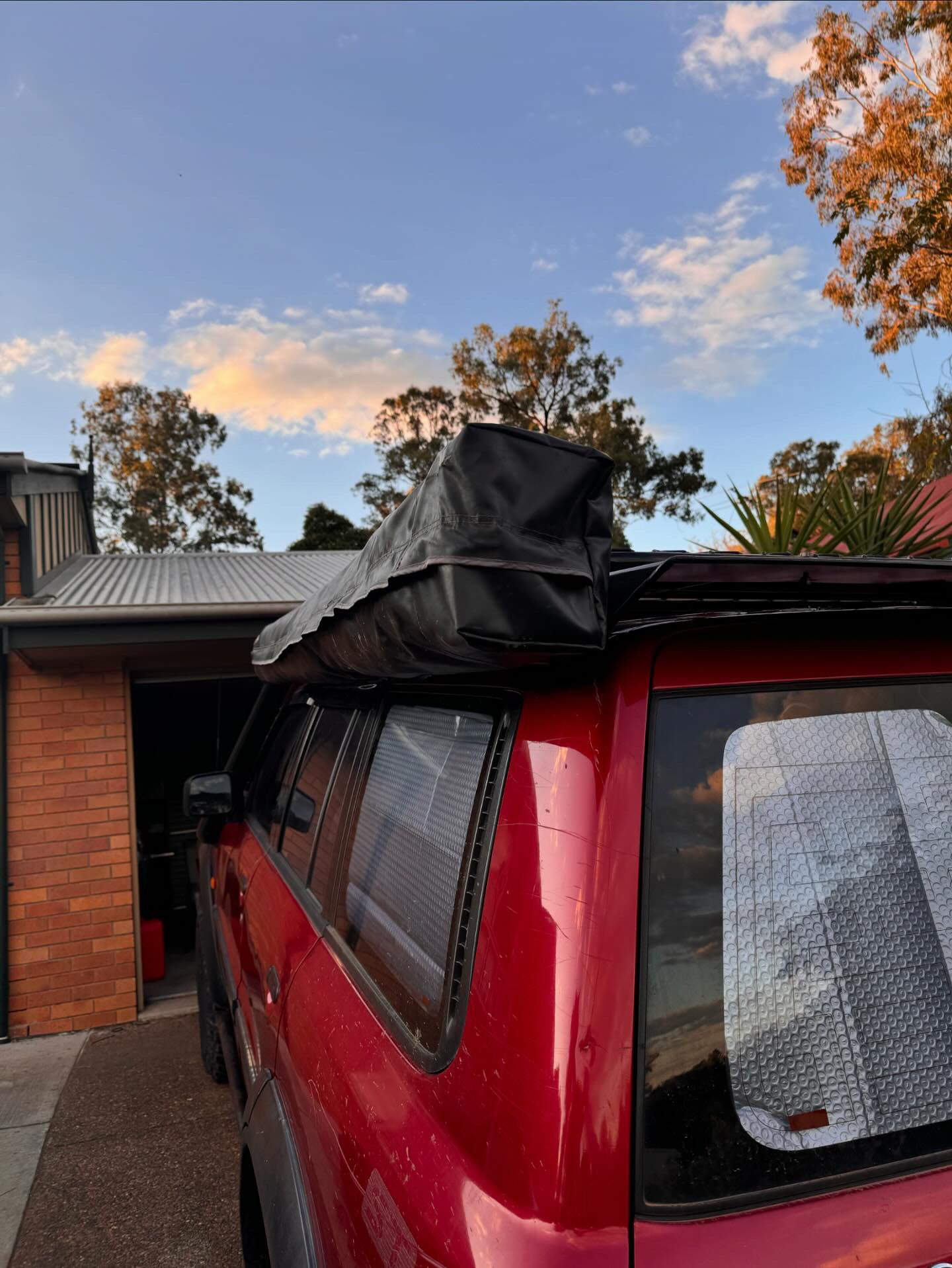

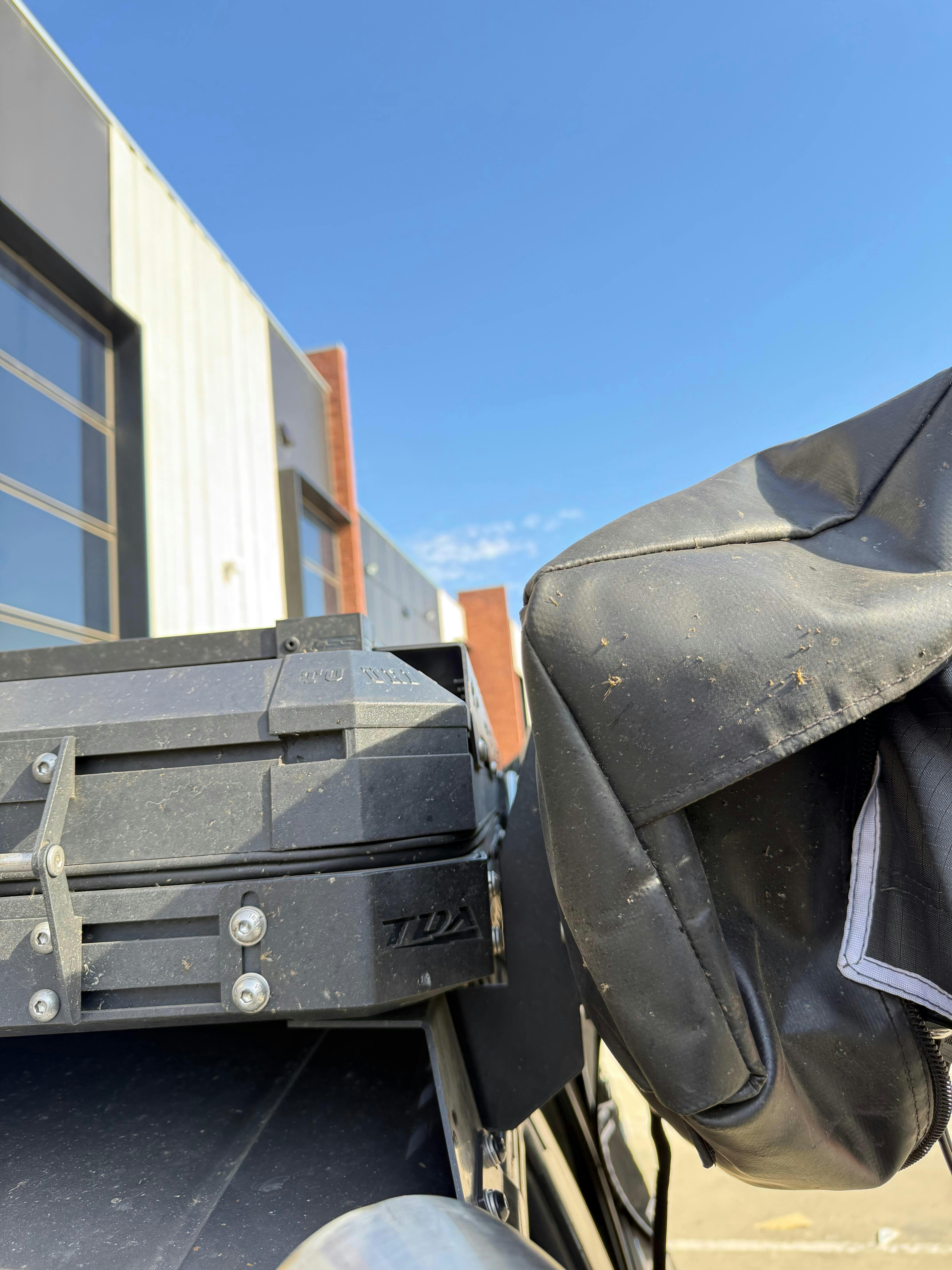

  • Style 2: A higher-mount version of Style 1, developed for larger 270º awnings that need additional clearance above the rear wing or doors.
    Best suited for larger awnings such as the CSS 270 XL and OT 270 XL.

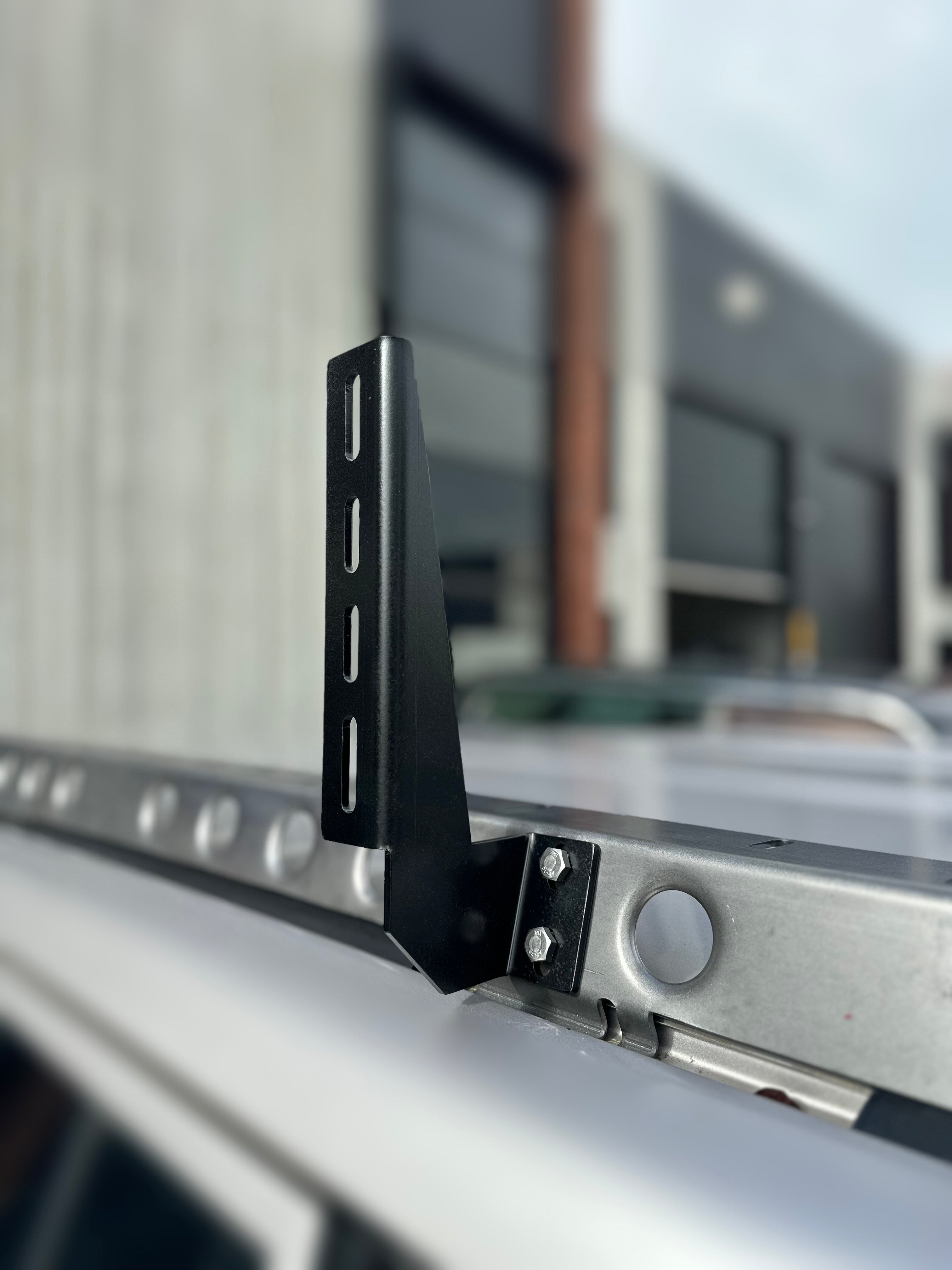

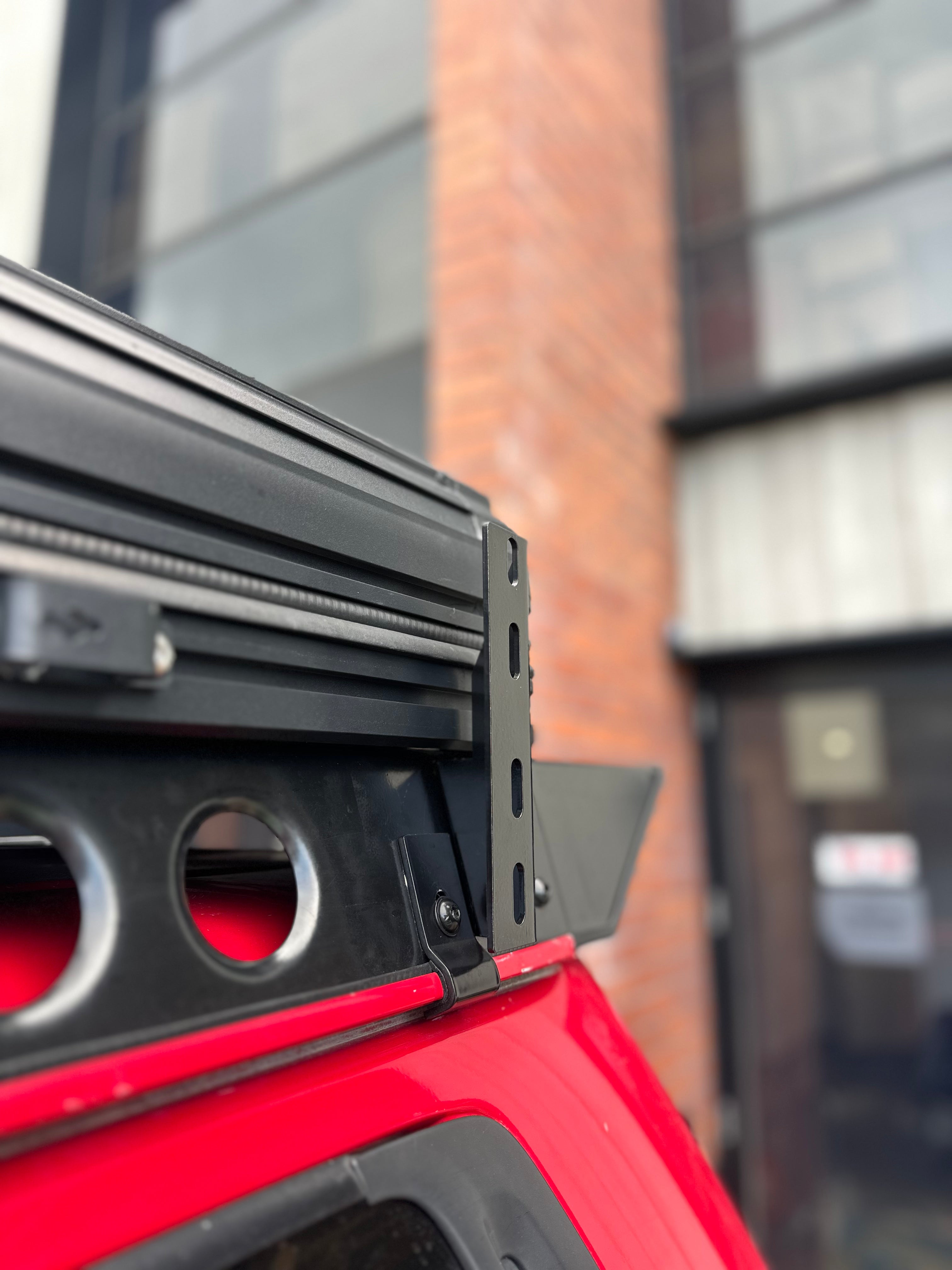

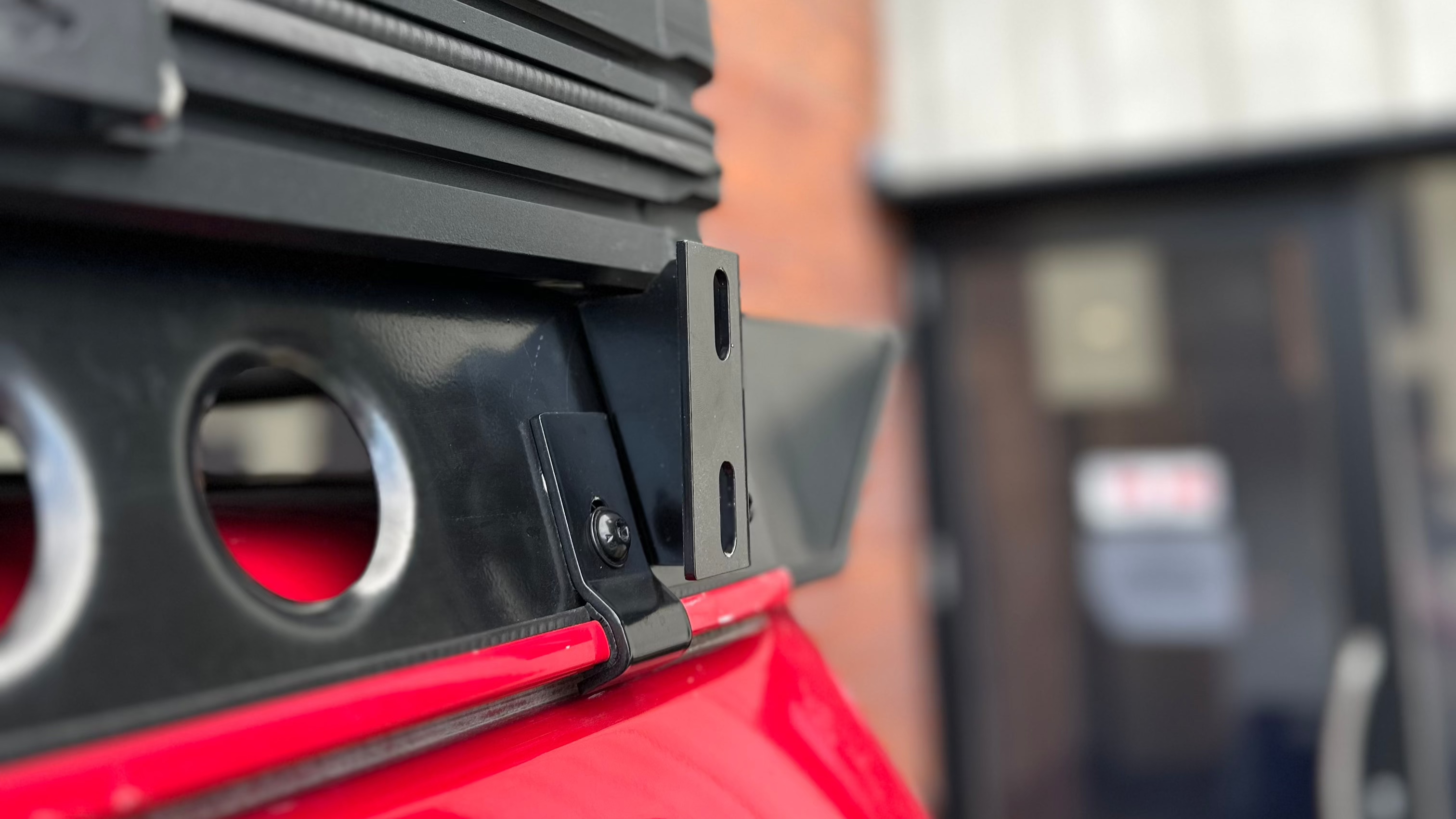

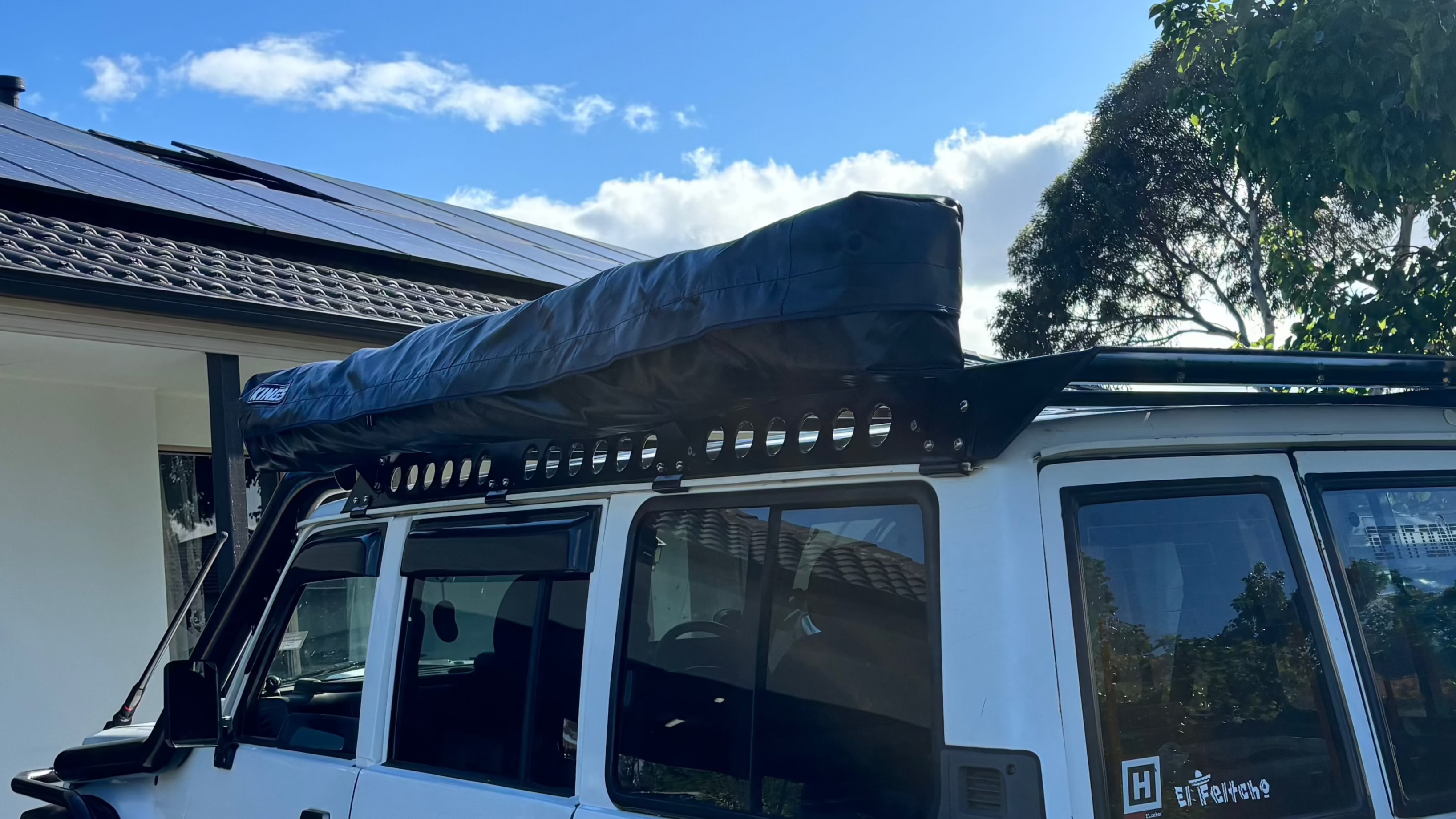

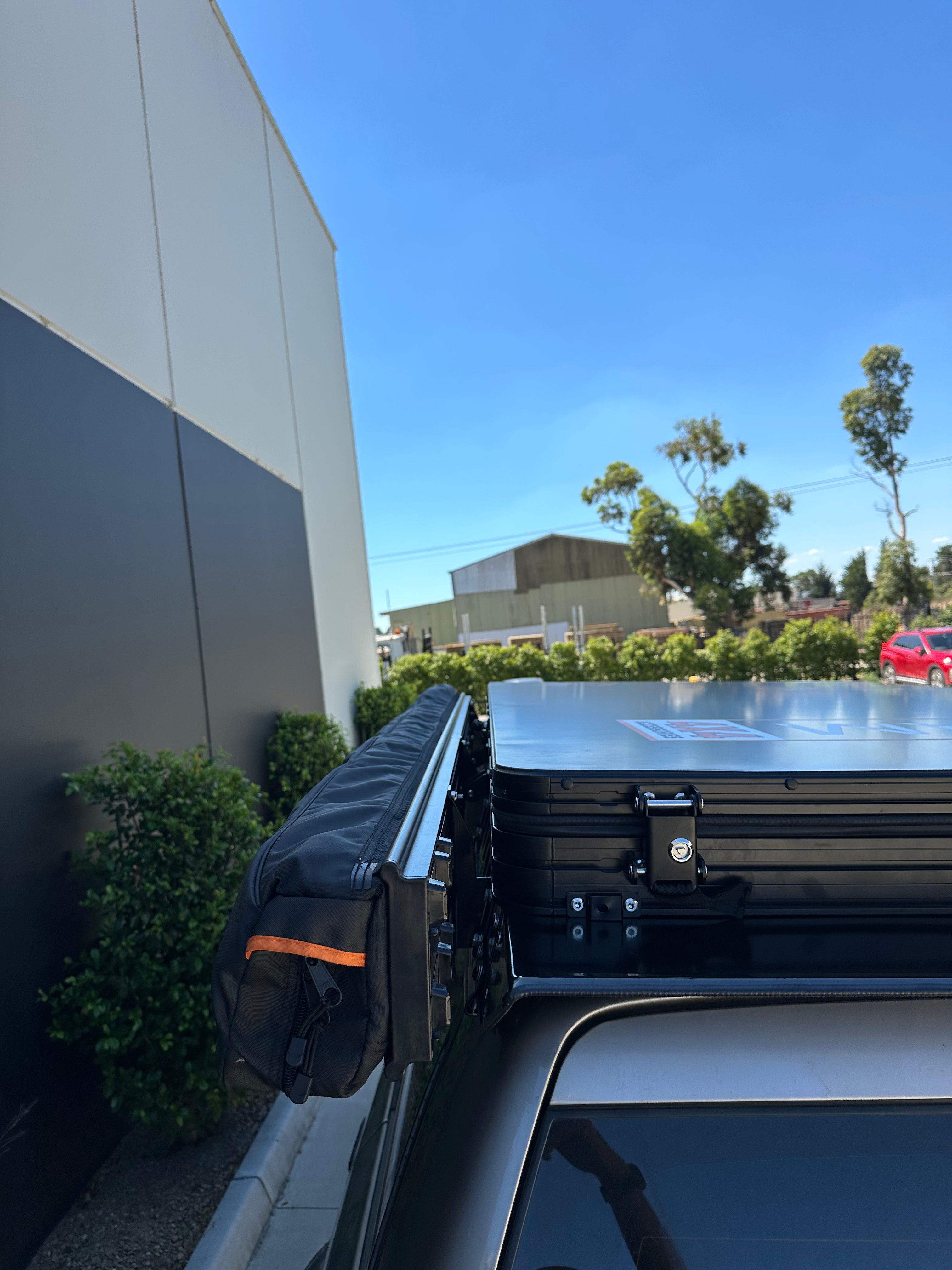

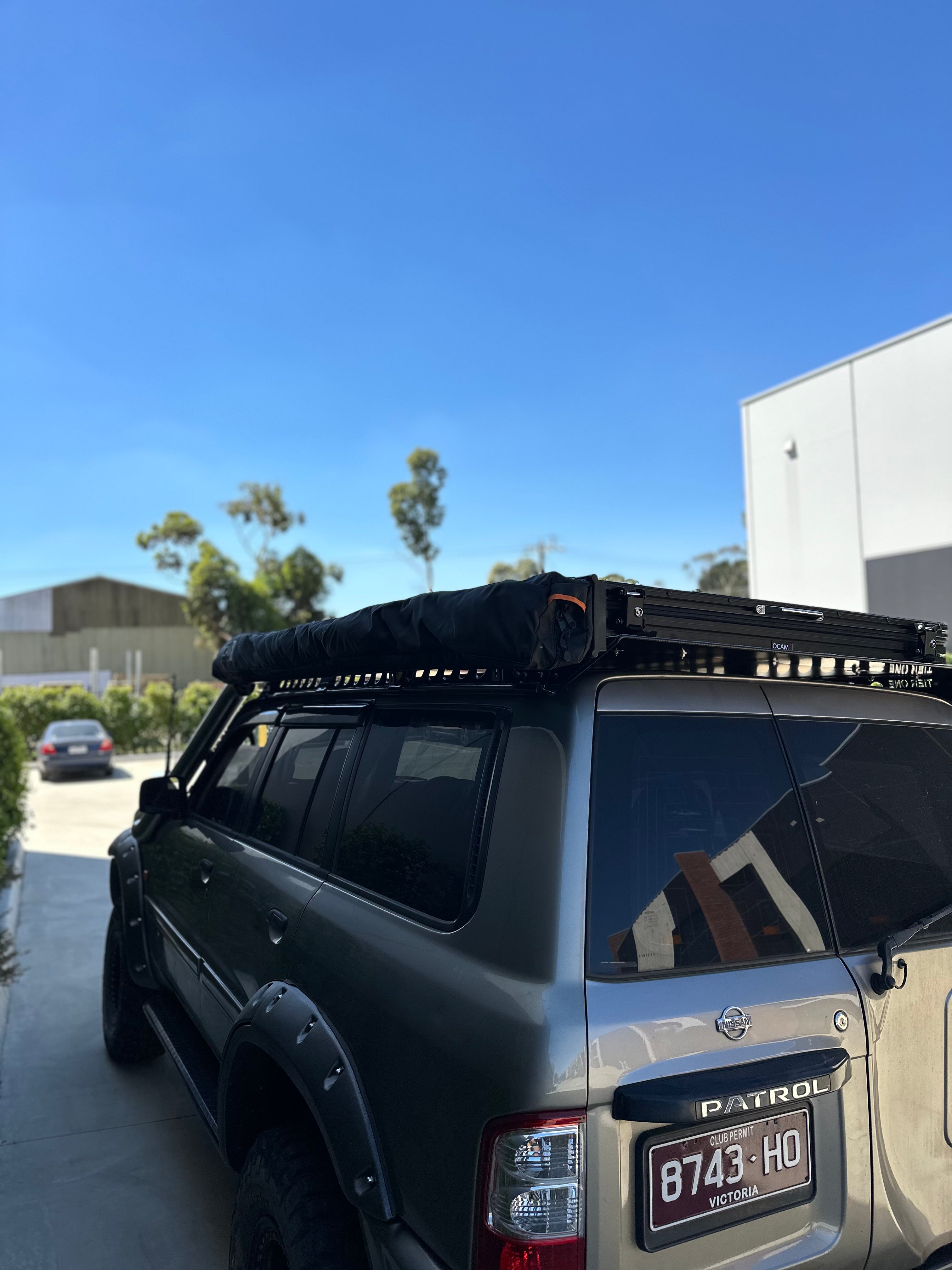

  • Style 3: Designed for traditional side awnings, offering a simple, sturdy solution with a clean side profile.
    Can also be used on the driver’s side for shower awnings (requires drilling into the rails).

Additional Notes

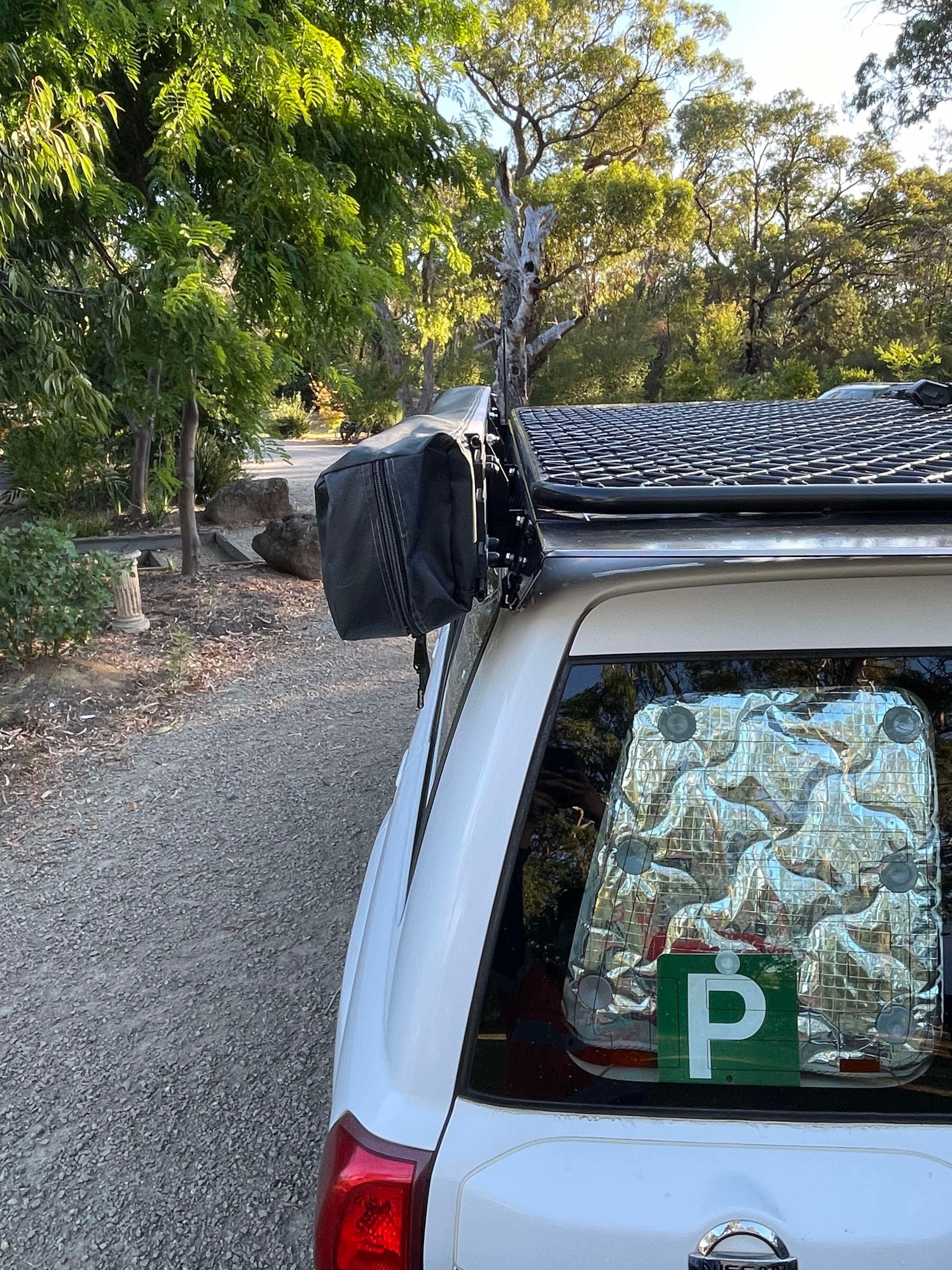

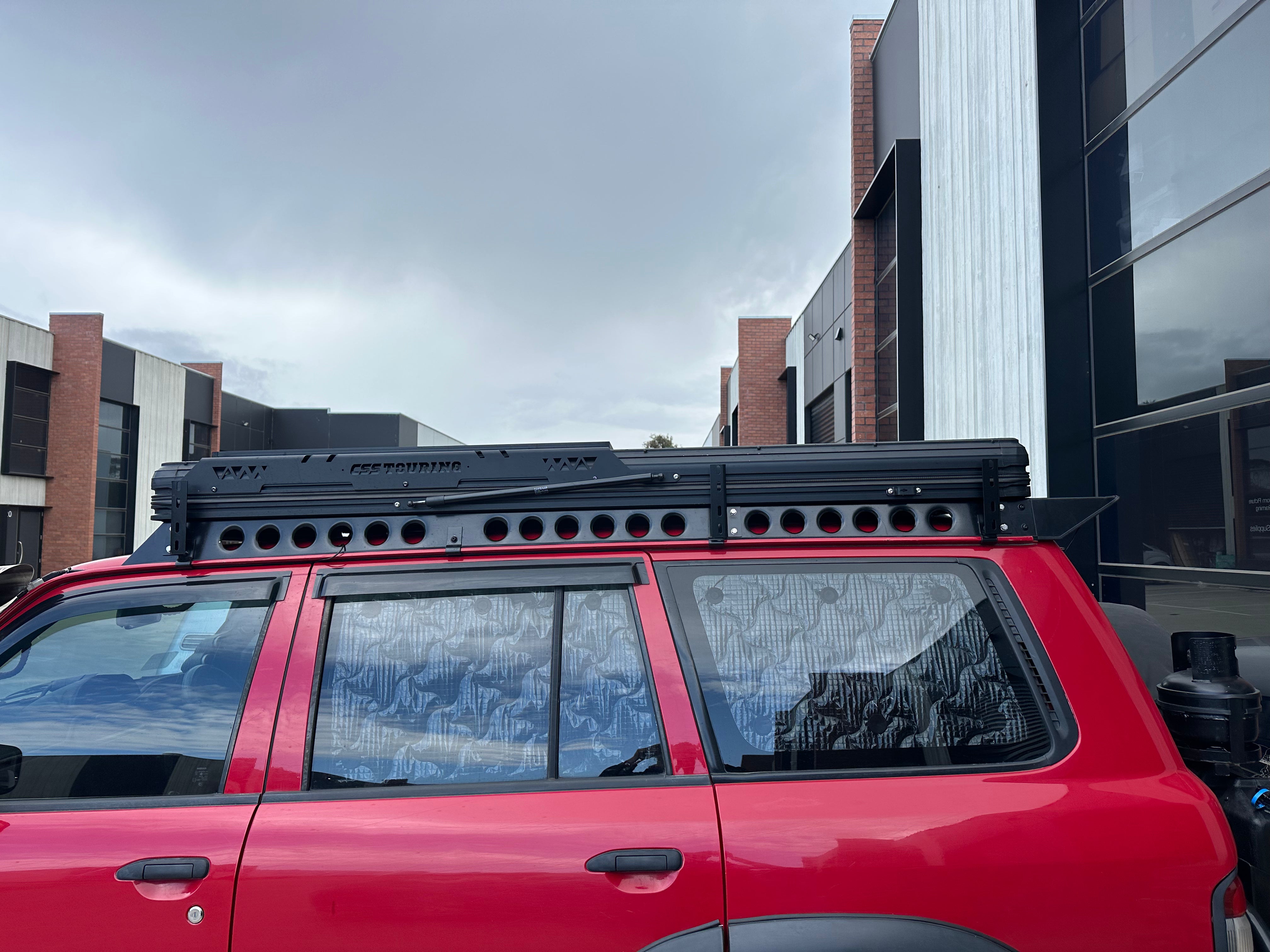

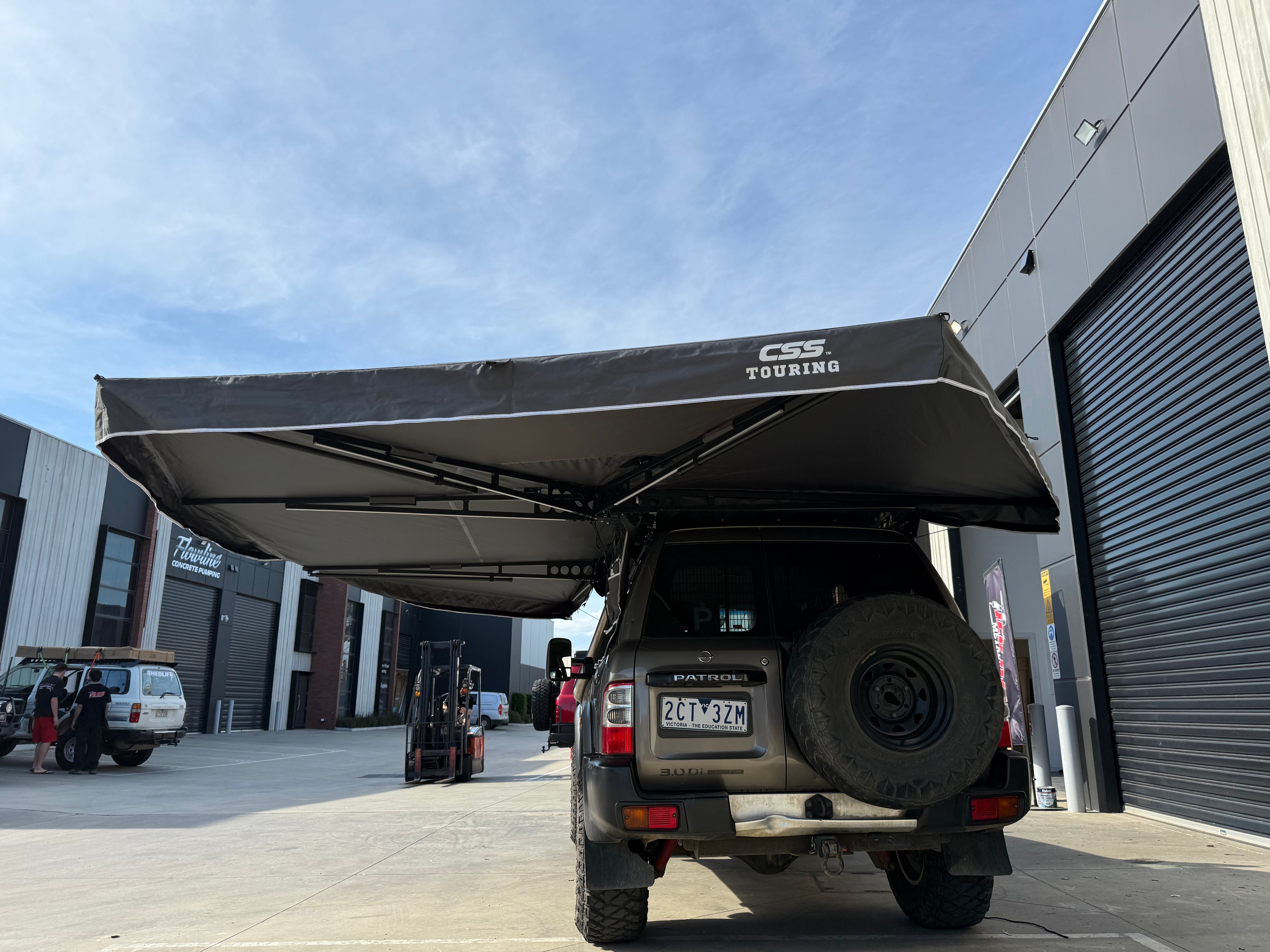

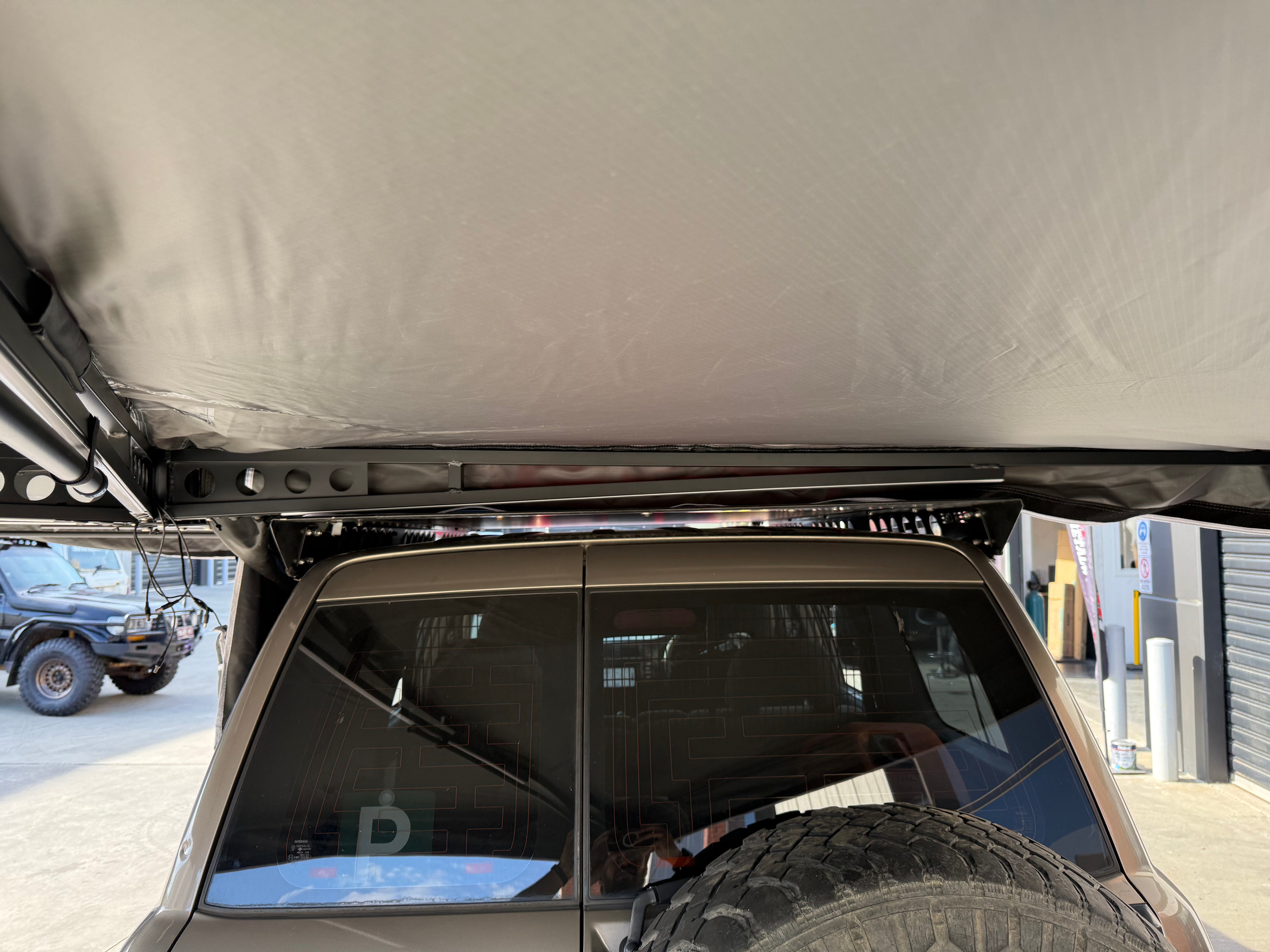

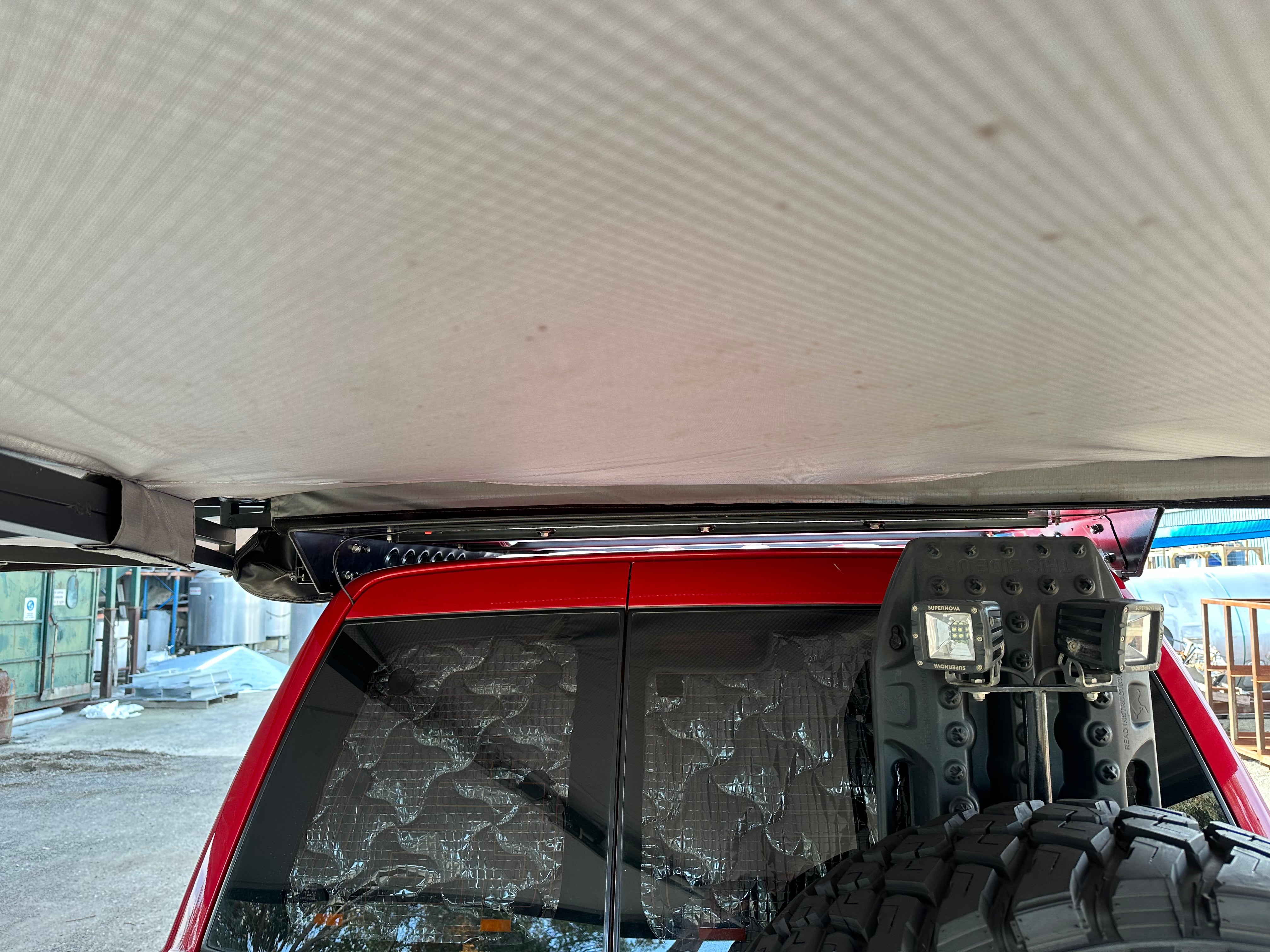

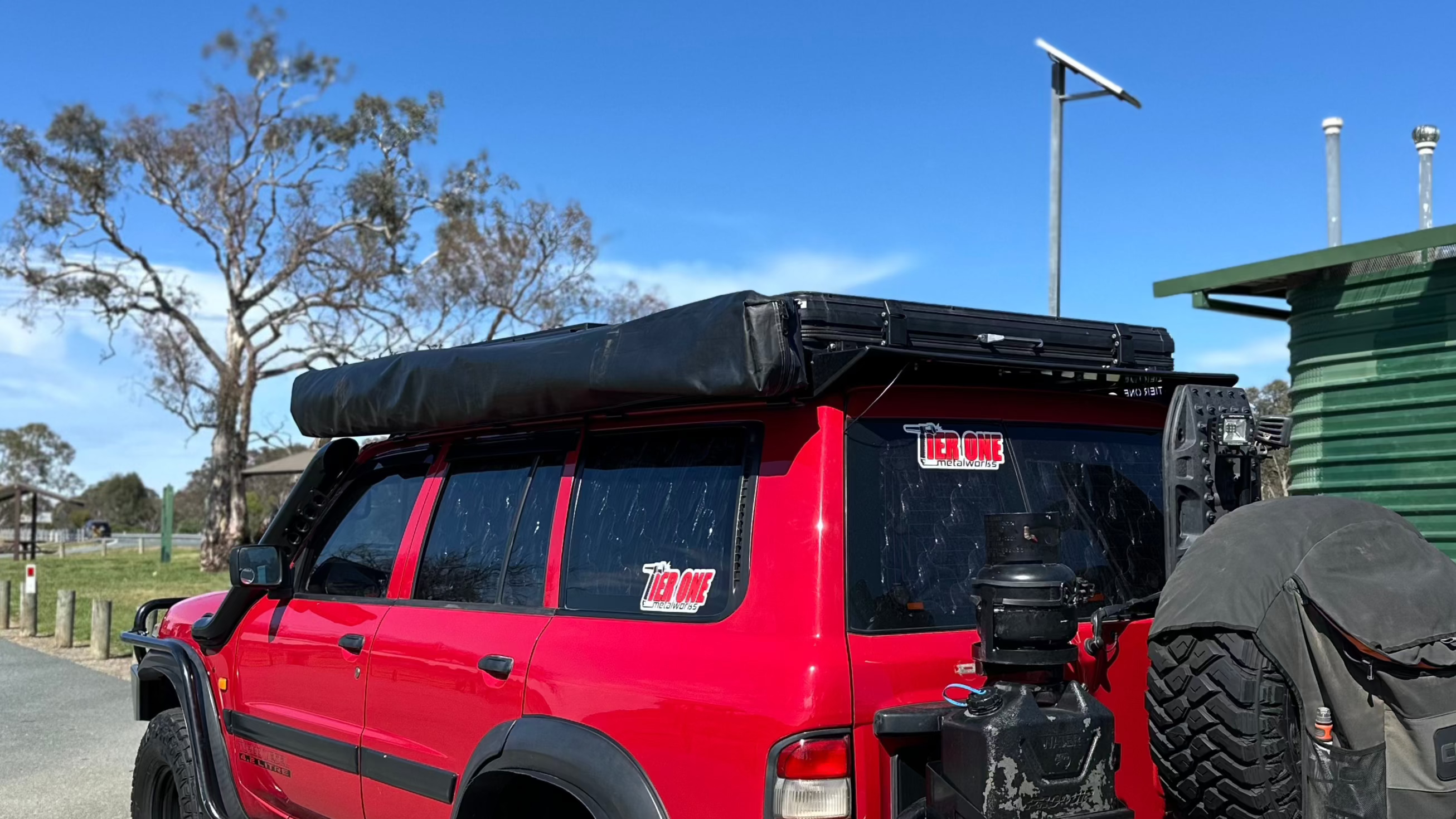

If you’re running a rear wing, your 270º awning can overlap it to eliminate the dreaded rain gap that usually forms between your tent and awning while camping.
This overlap acts as a weather shield — the original reason our rear wing design was developed.

We recommend using three brackets for 270º awnings. Smaller side awnings can be mounted with two Style 3 brackets.

Fitment Details

GU / GQ / 80 / 76 / 79 Series

30 kg limit for Style 1 and 2 brackets.

Style 1

  • Roof rail to cutout: 18.5 mm

  • Roof rail to awning: 47 mm

  • Bracket size: 185 mm

  • Suits 1.2 m tents

Style 1 Wide

  • Roof rail to cutout: 41.5 mm

  • Roof rail to awning: 63 mm

  • Bracket size: 175 mm

  • Best option for 1.3 m tents

Style 2

  • Roof rail to cutout: 20.5 mm

  • Roof rail to awning: 60 mm

  • Bracket size: 200 mm

  • Suits 1.2 m tents

Style 2 Wide

  • Roof rail to cutout: 41.5 mm

  • Roof rail to awning: 75.5 mm

  • Bracket size: 185 mm

  • Best option for 1.3 m tents

Style 3

  • Roof rail to cutout: 25 mm

  • Roof rail to awning: 50 mm

  • Bracket size: 86 mm


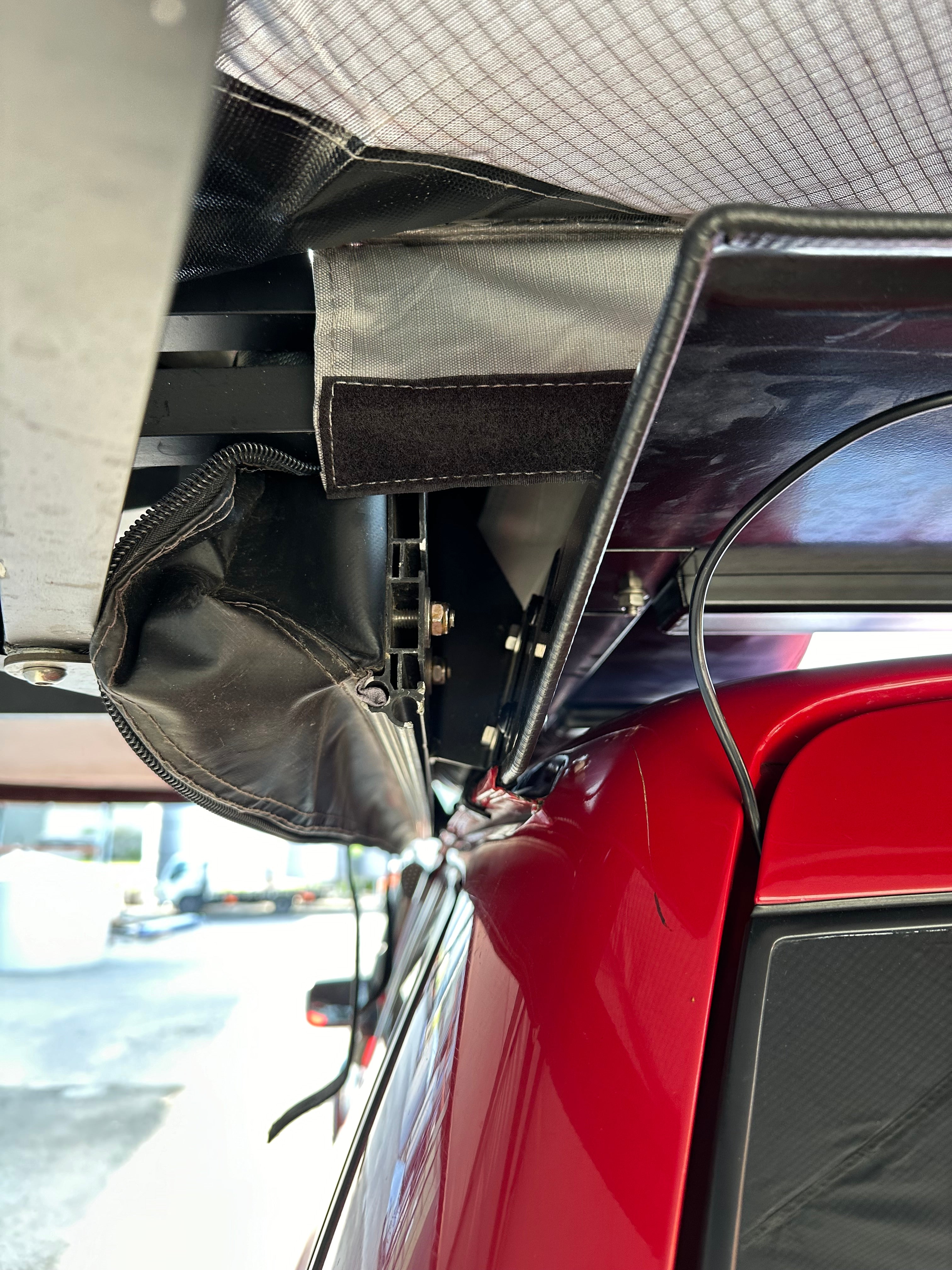

Mounting System

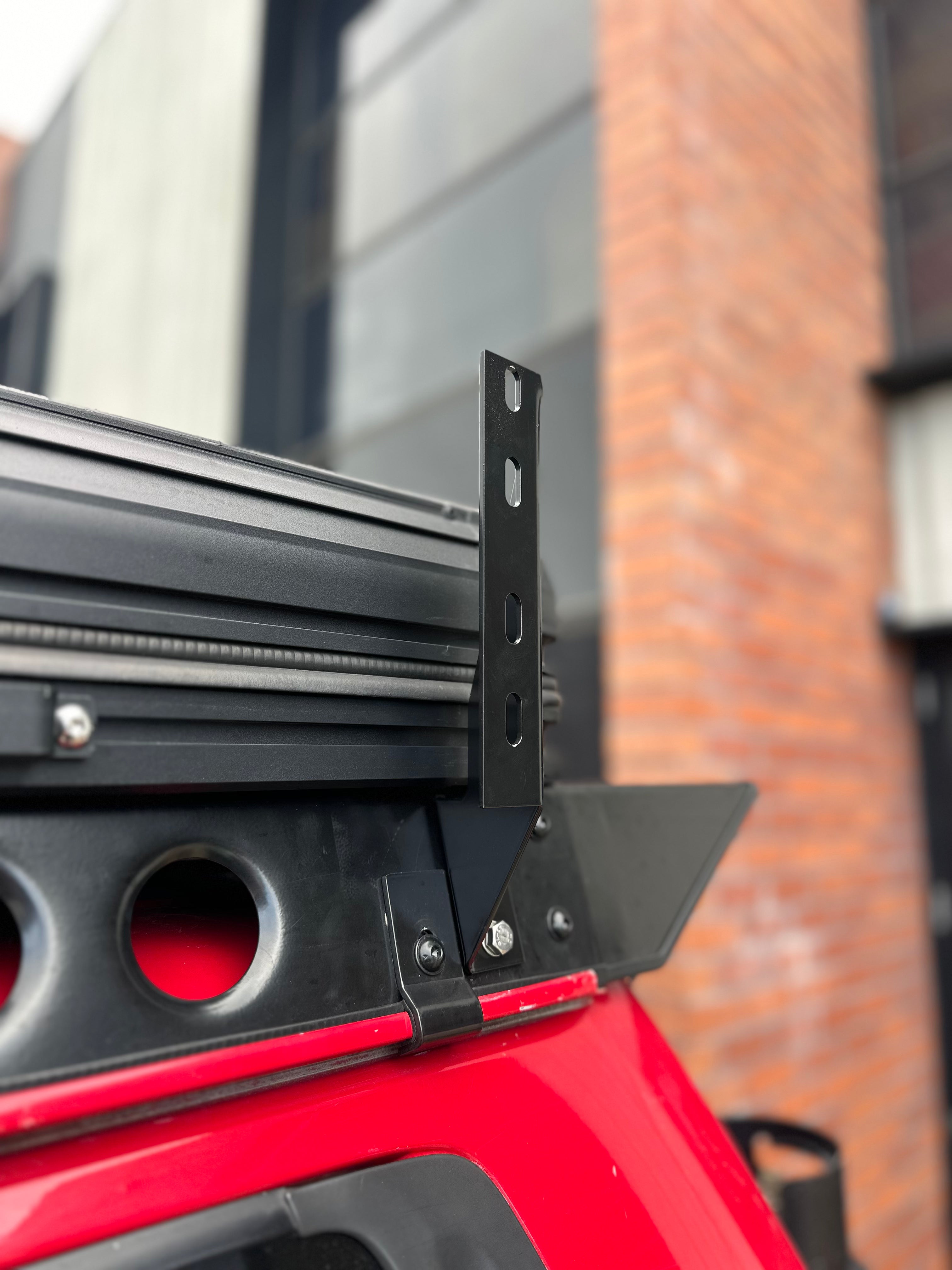

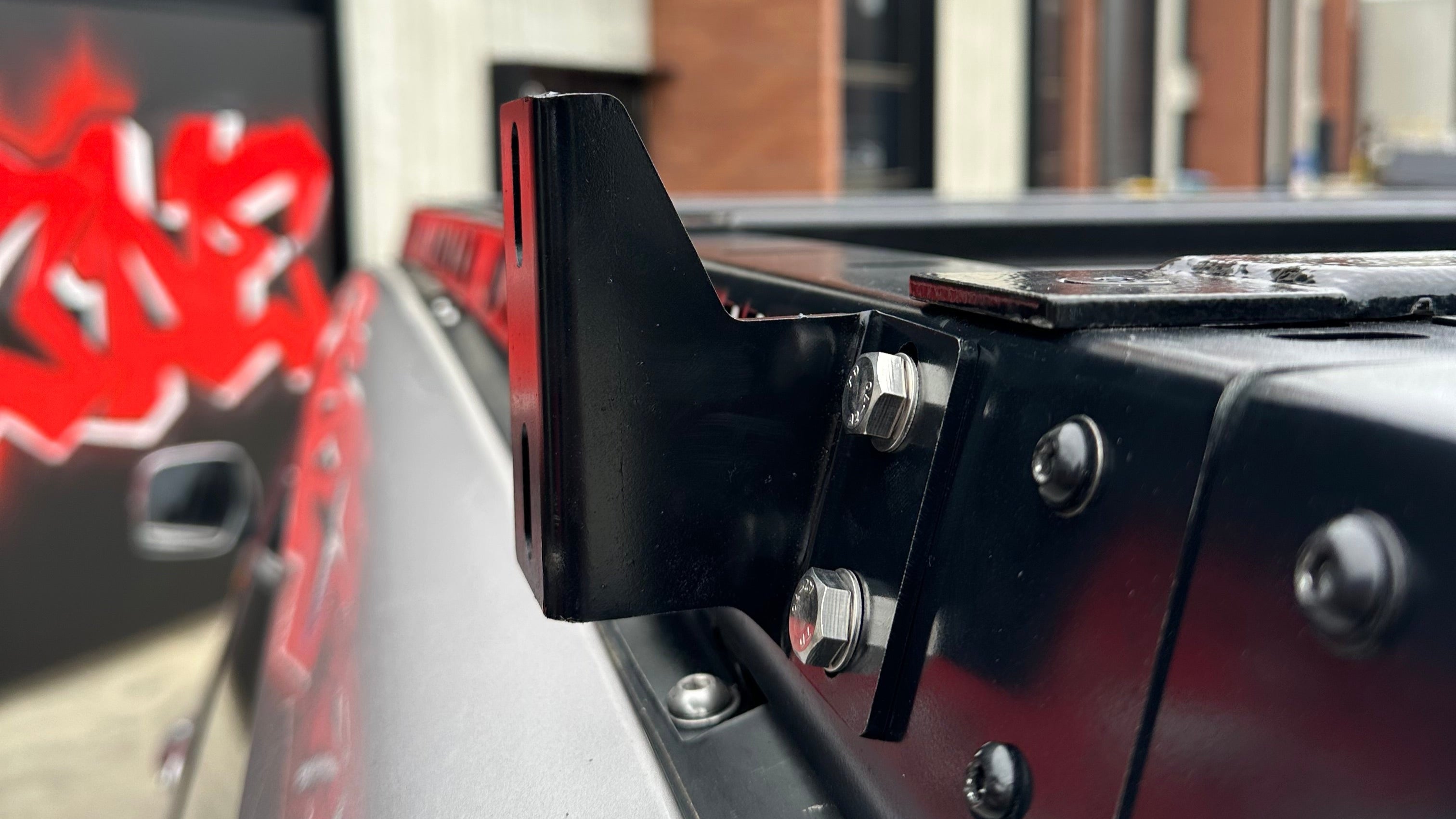

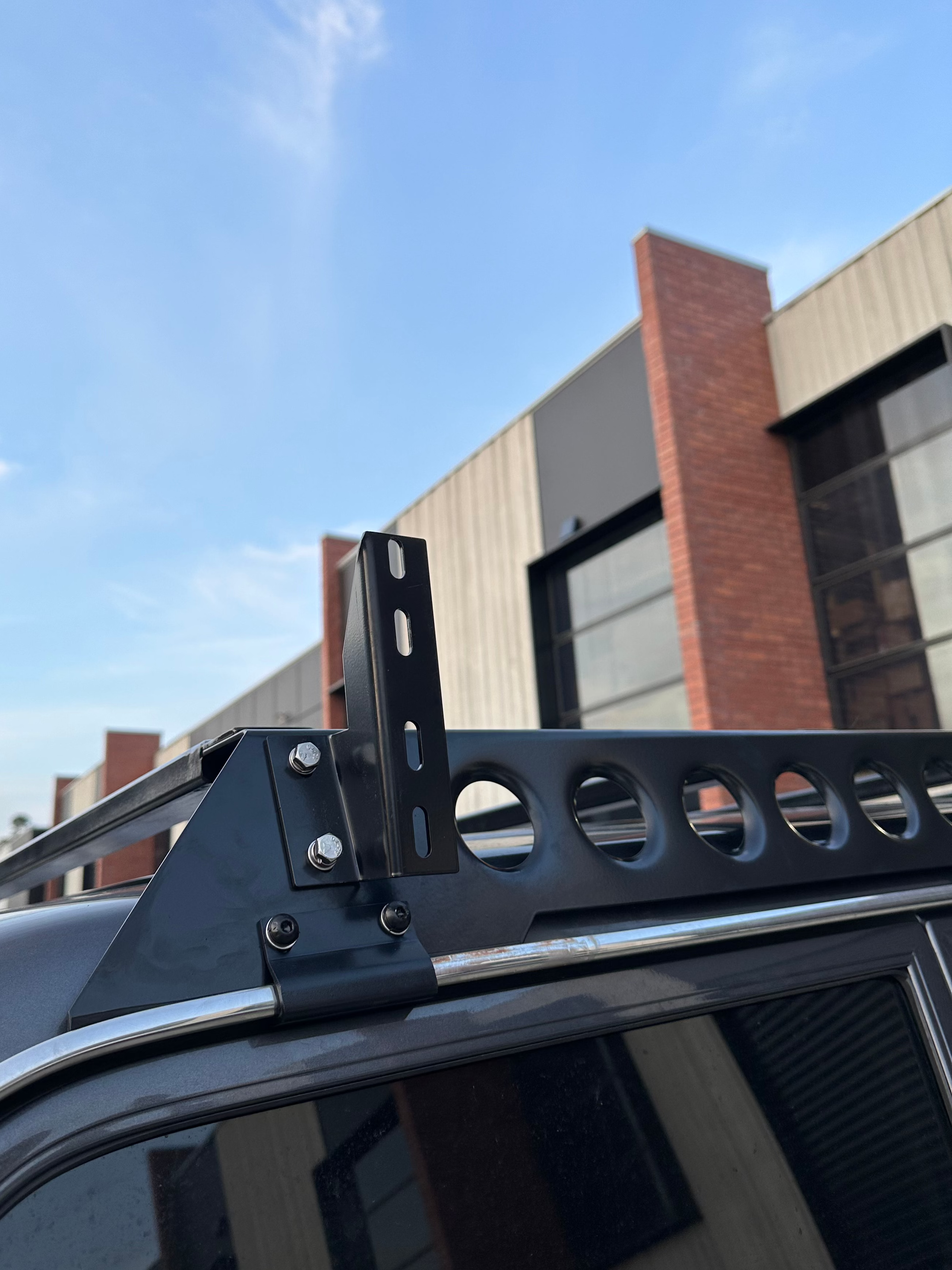

All wagon rails include two embedded rivnuts in three locations for direct bracket mounting.
This system has been proven across hundreds of 270º awning setups with zero failures.
In testing, the bolts tore through the bracket before any movement occurred at the rivnuts — proving the strength and reliability of the system.

Specifications

  • Material: Style 1 & 3 – 3 mm mild steel; Style 2 – 4 mm mild steel

  • Finish: Zinc Electroplated + Satin Black Powder Coat

  • Hardware: Stainless steel mounting hardware included

  • Fitment: Suits Tier One Metalworks Roof Rack Rails only

While these brackets are not officially load-rated, they are built to comfortably support most standard and 270º awnings on the market.

We have discontinued awning bracket options for 100/105's and Troopy models.

Disclaimer

Use this product at your own risk. Tier One Metalworks is not liable for any damage or injury resulting from use or installation.
These brackets are not currently load-rated — ensure correct fitment and confirm compatibility with your specific awning before use.

View details
