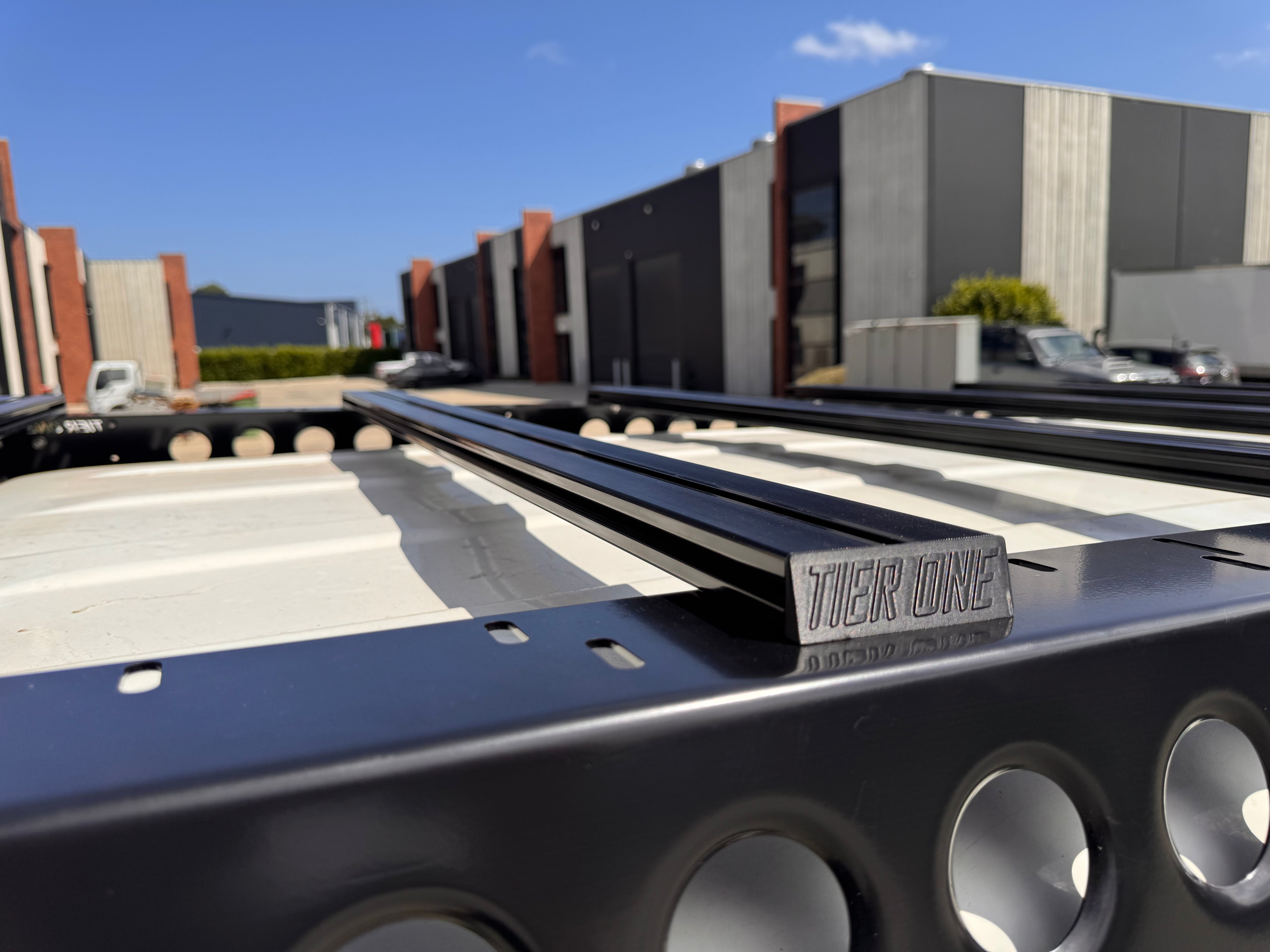

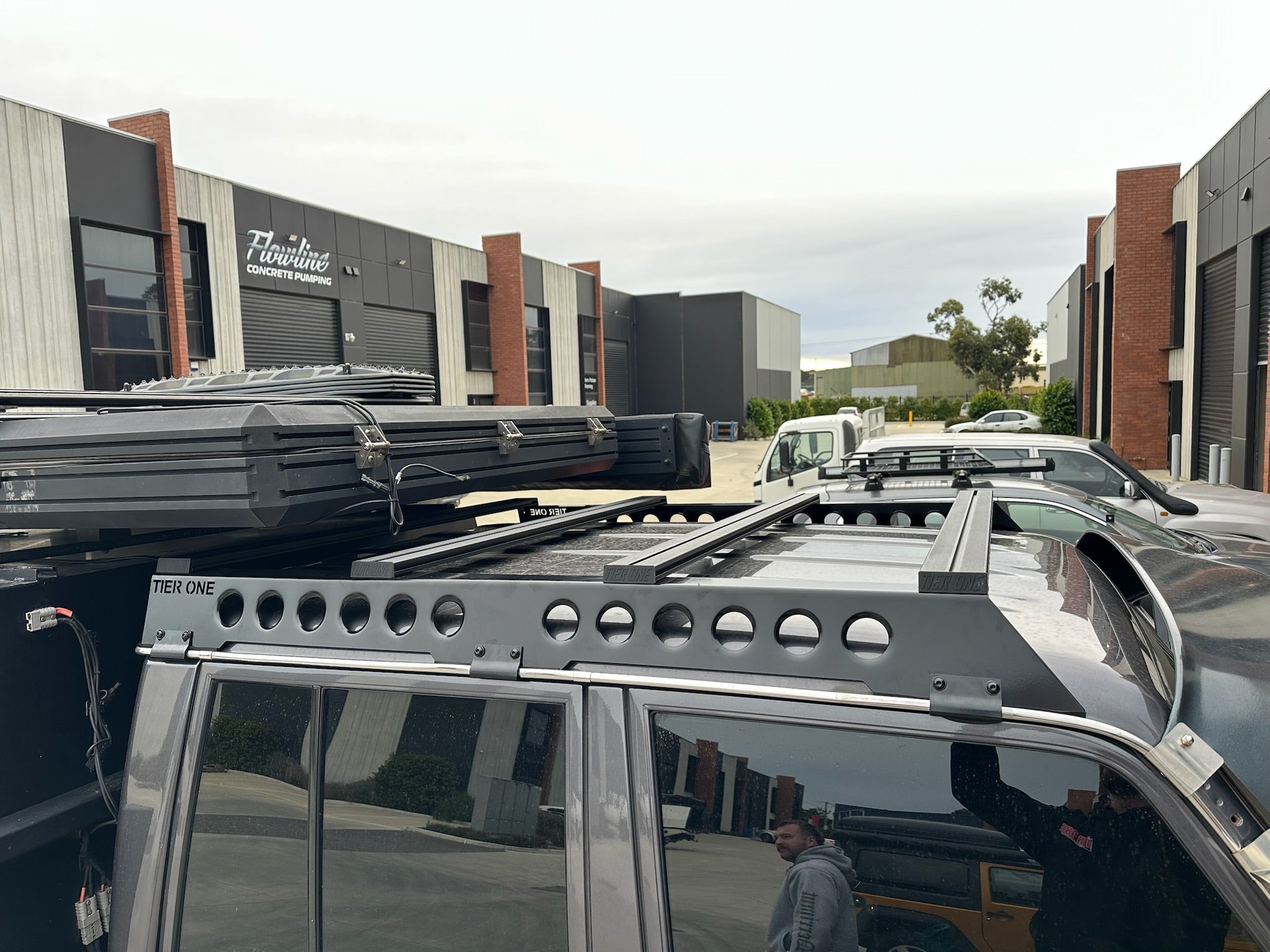

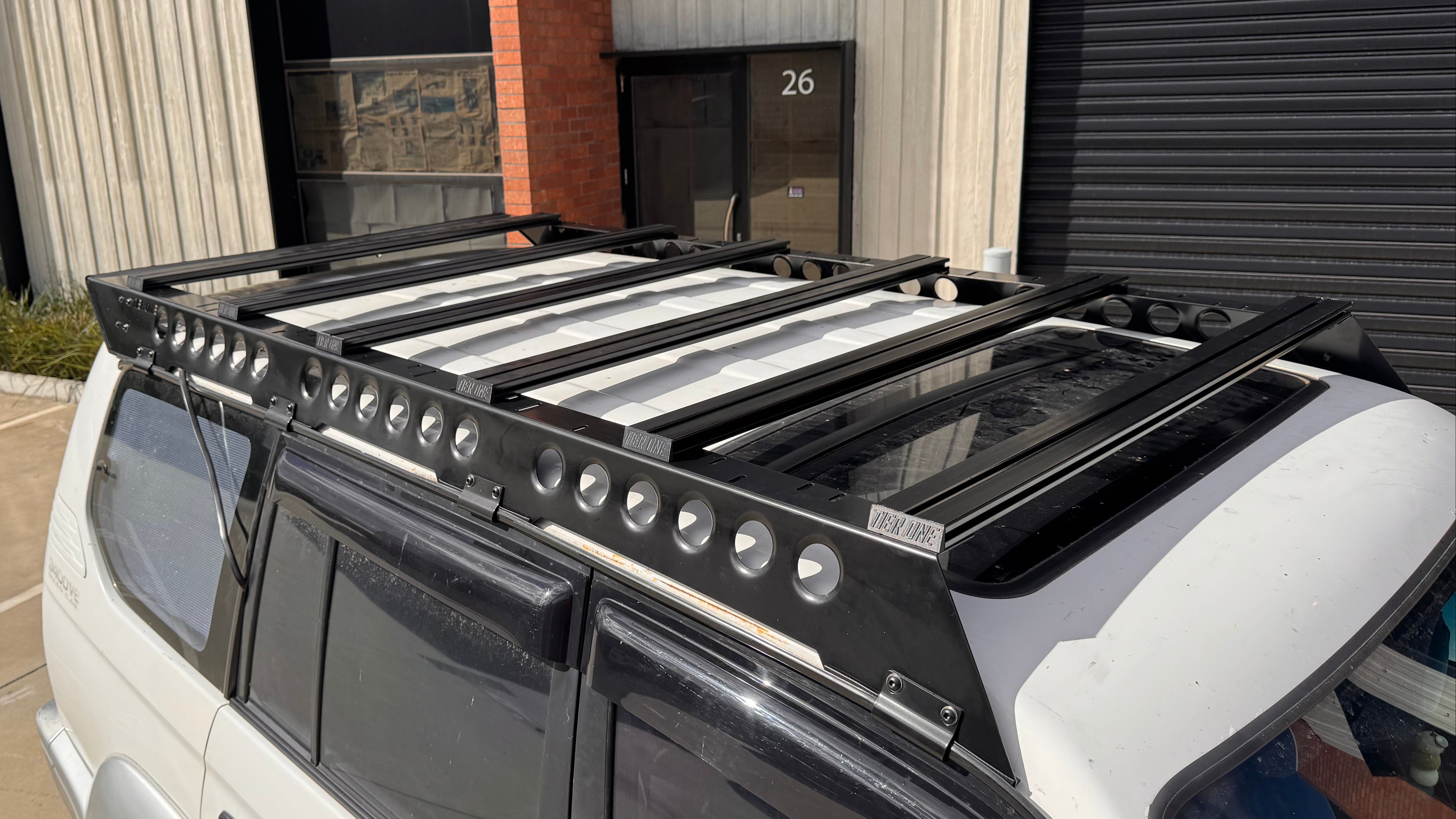

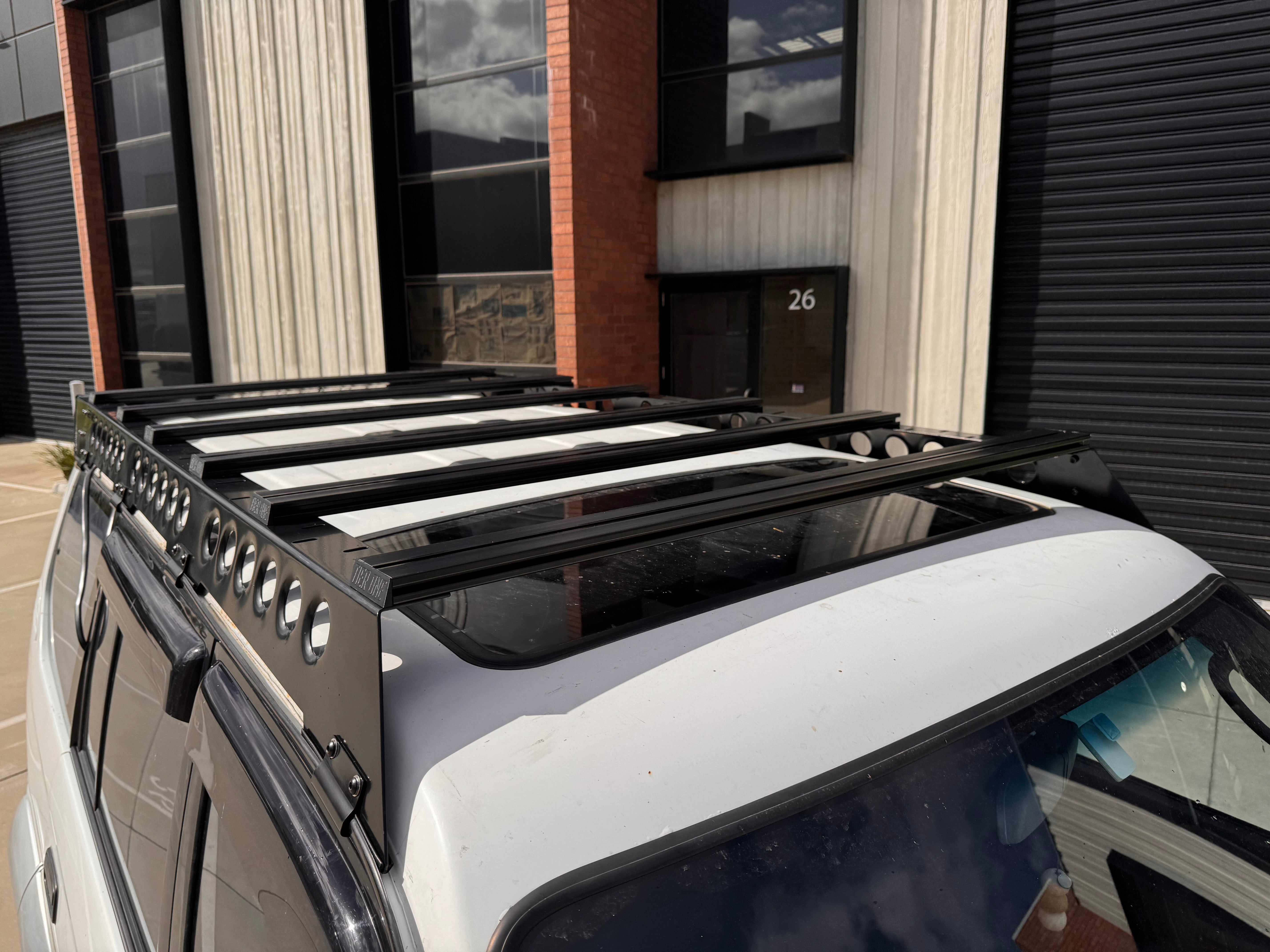

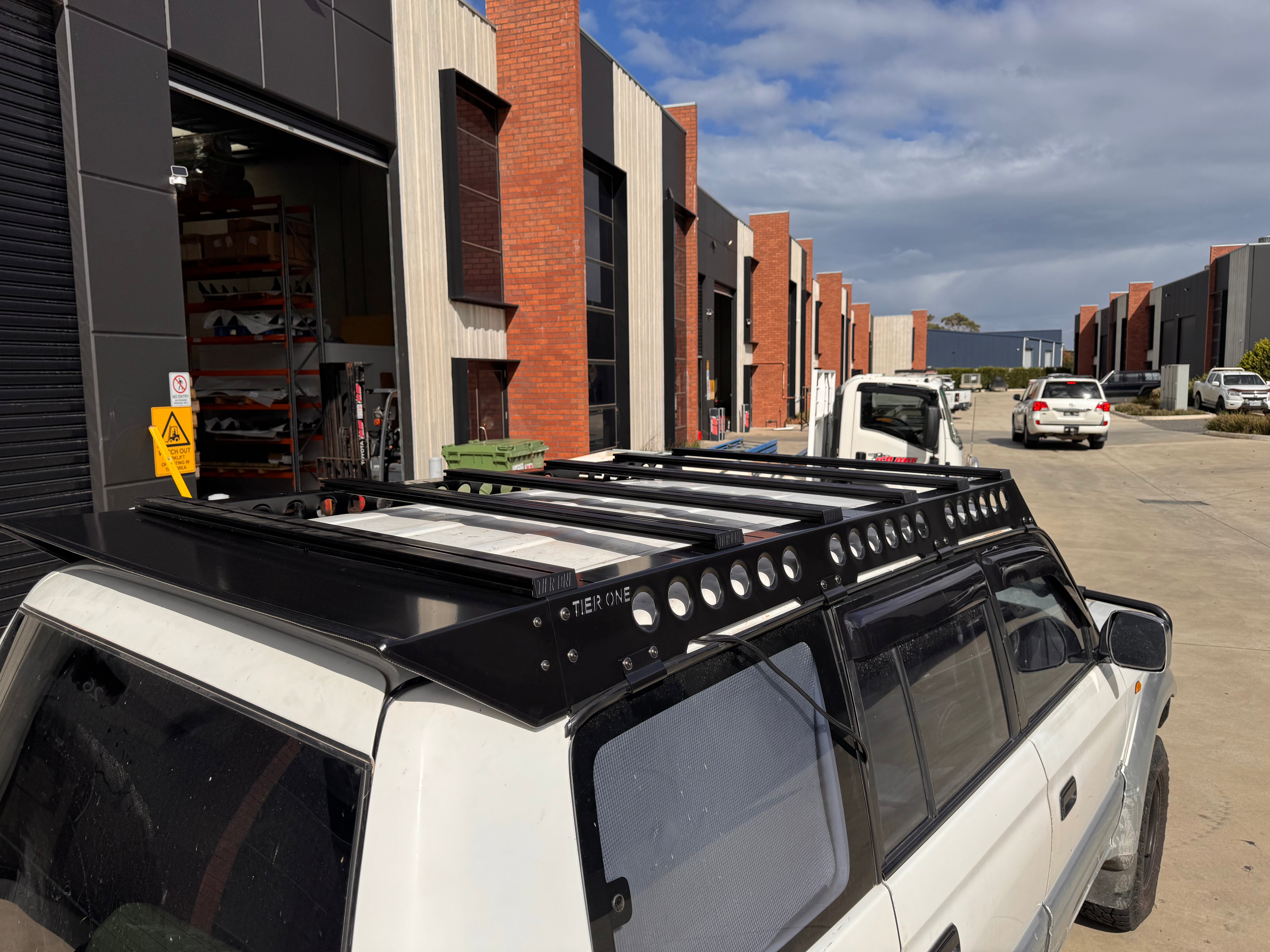

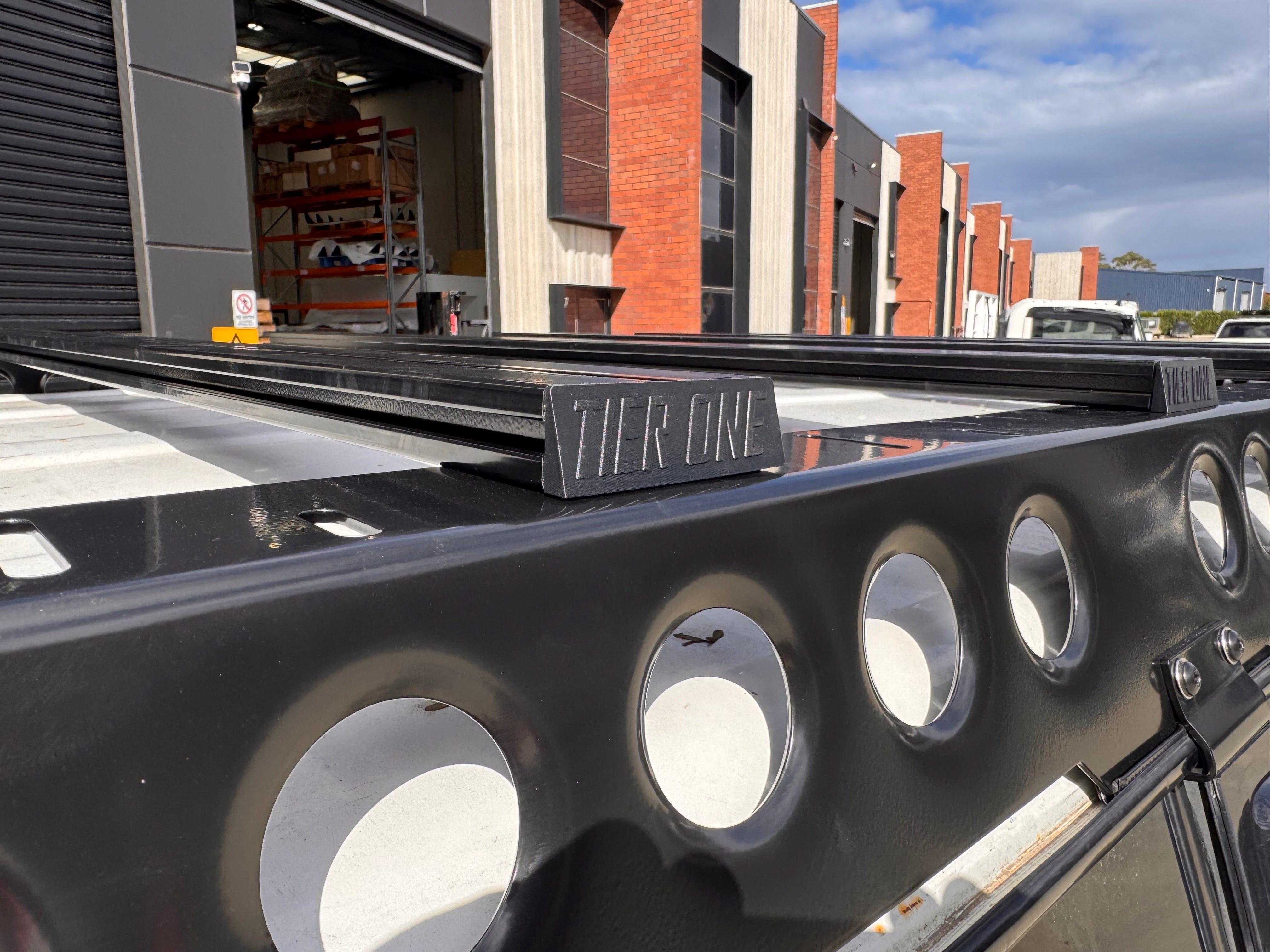

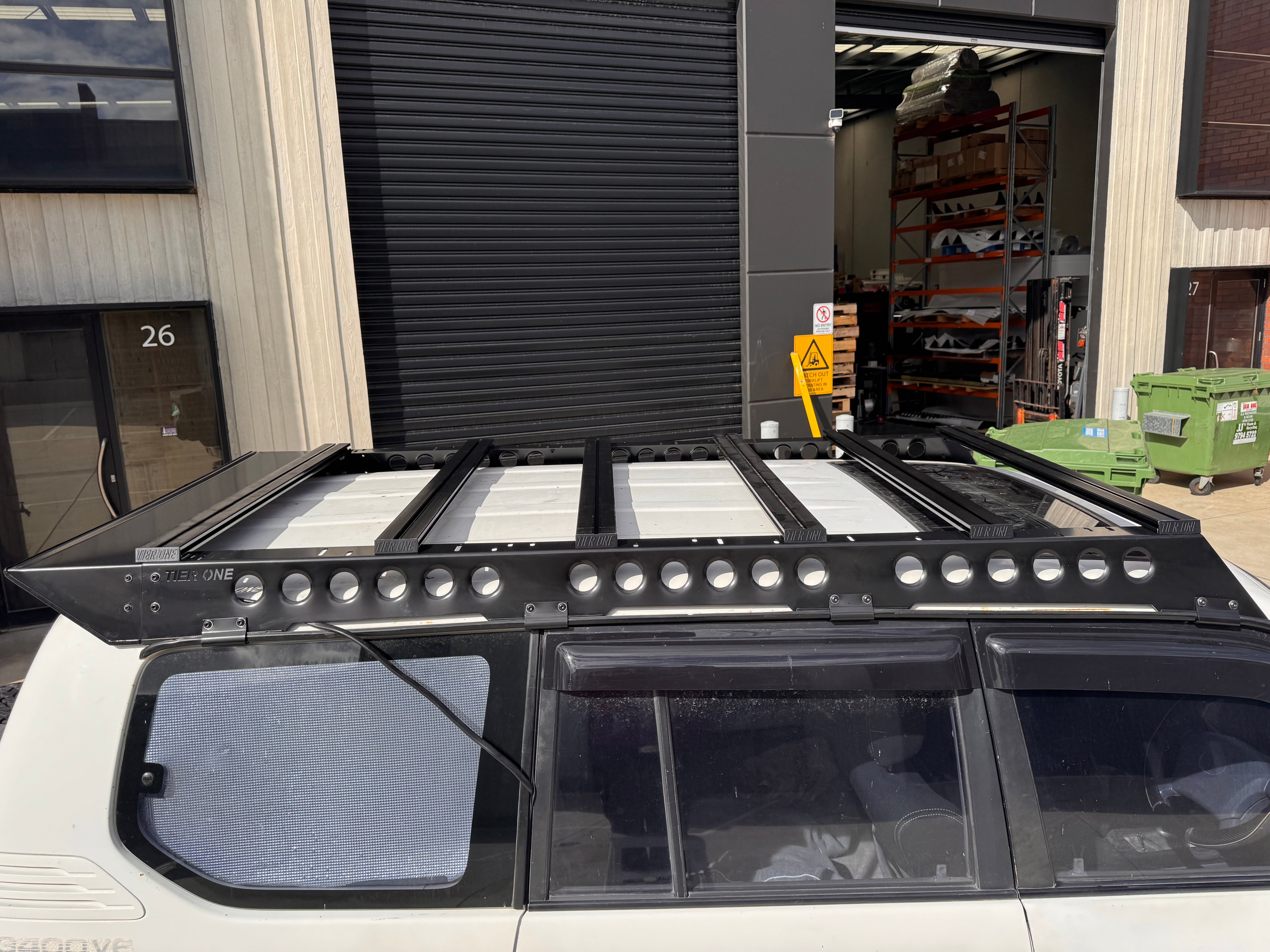

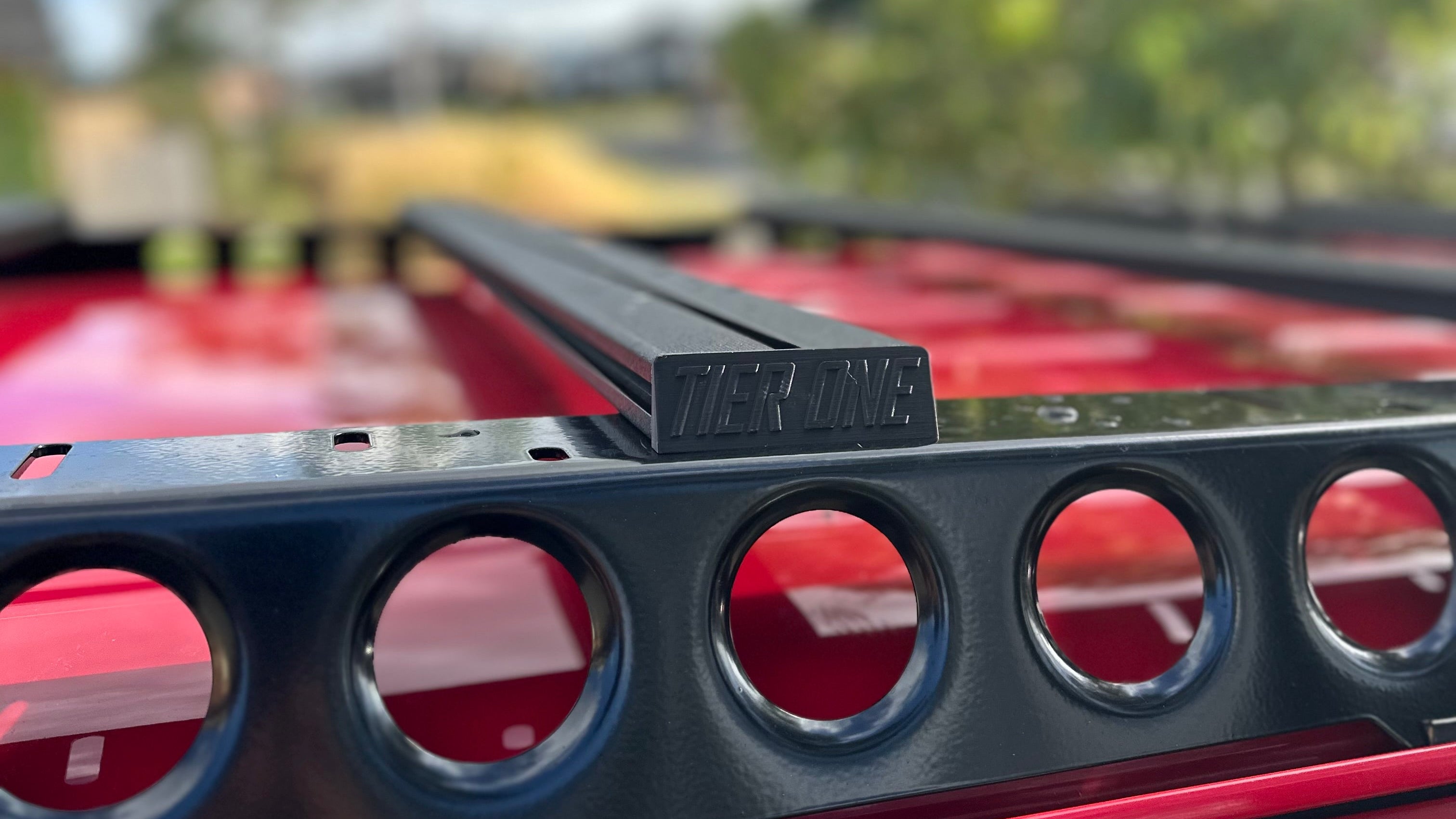

High Profile Heavy Duty Crossbars (HPHD)
Please note the rail sides and rear wing are sold separately.
Designed with strength, versatility, and modularity in mind, Tier One Crossbars give you complete freedom to configure your setup.
Our custom-designed aluminium extrusion is manufactured locally and built to handle serious loads, making it ideal for trade vehicles, touring rigs, and demanding off-road setups. Featuring four-sided T-slots, it offers endless mounting possibilities using standard M8 T-slot hardware, making it the ultimate modular crossbar system.
Each crossbar is fully adjustable, completely interchangeable, and can be mounted in any position along the rails, allowing you to easily tailor your roof rack to suit touring, trade use, or everyday driving.
RECOMMENDED SETUPS
- Wagon: 6 bars
- Single Cab Ute: 3 bars
- Dual Cab Ute: 4 bars
- Rooftop Tent Setup: 6 bars recommended (minimum of 4 required)
SPECIFICATIONS
- Weight: 3.5kg per bar
- Material: Aluminium
- Finish: Powder Coated Satin Black
- Width: 80mm
- Overall Height: Appx 50mm from the highest point of the roof to the top of the HPHD Crossbars (When installed with our rail sides)
- Roof Clearance: Appx 25mm from the highest point of the roof to the bottom of the HPHD Crossbars (When installed with our rail sides)
- Australian Designed and Manufactured
- View the 'Variant Sizes' section below to find the crossbar lengths for your vehicle.
VARIANT SIZES
GU-GQ-76-78-80
- 1235mm
Y62 Patrol
Please note: As the roof profile increases significantly from front to rear, our Y62 Patrol roof rack systems utilise three different crossbar lengths to ensure a precise fit.
- Rear: 1135mm
- Middle: 1160mm
- Front: 1185mm
| Crossbars | Included |
| 6 Bars | 1135mm × 2, 1160mm × 2, 1185mm × 2 |
| 5 Bars | 1135mm × 2, 1160mm × 2, 1185mm × 1 |
| 4 Bars | 1135mm × 1, 1160mm × 2, 1185mm × 1 |
| 3 Bars | 1135mm × 1, 1160mm × 1, 1185mm × 1 |
| 2 Bars | 1135mm × 1, 1185mm × 1 |
79 Series
- 1285mm
90 Series
Please note: Due to the roof profile running out from front to rear, Prado roof rack systems utilise two different crossbar lengths for the best possible fit.
- Rear: 1190mm
- Front: 1210mm
| Crossbars | Included |
| 6 Bars | 1190mm x 3, 1210mm x 3 |
| 5 Bars | 1190mm x 3, 1210mm x 2 |
| 4 Bars | 1190mm x 2, 1210mm x 2 |
| 3 Bars | 1190mm x 2, 1210mm x 1 |
| 2 Bars | 1190mm x 1, 1210mm x 1 |

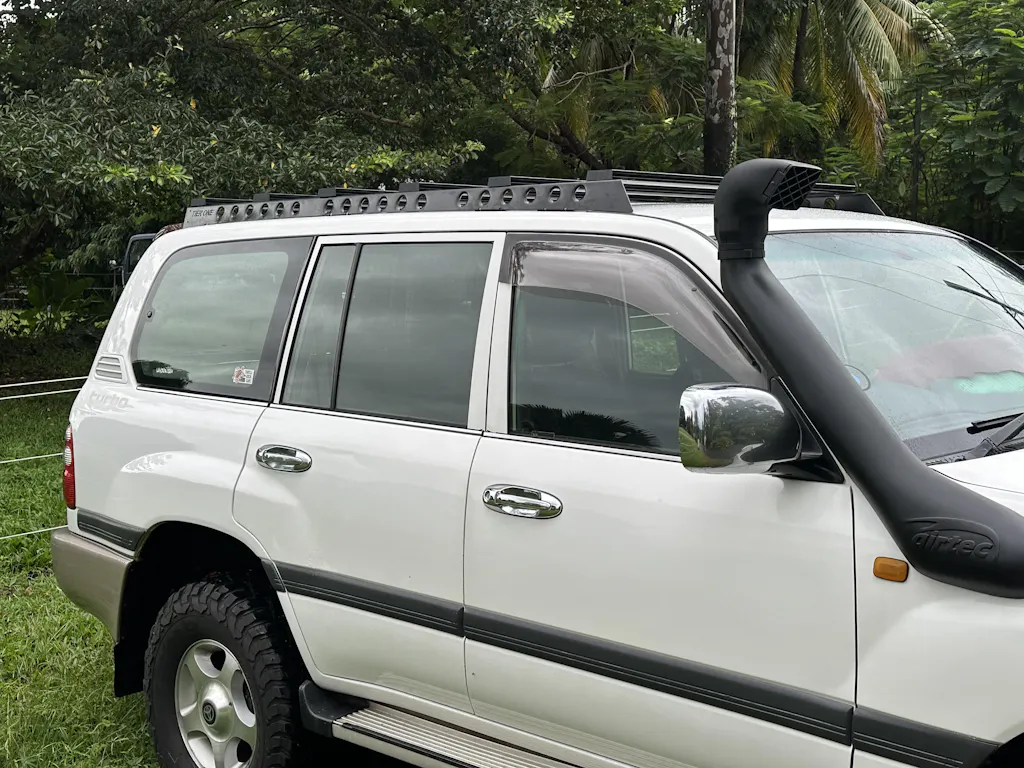

100/105 Series
Please note: As the roof profile increases significantly from front to rear, our 100/105 Series roof rack systems utilise three different crossbar lengths to ensure a precise fit.
- Rear: 1105mm
- Middle: 1150mm
- Front: 1175mm
| Crossbars | Included |
| 6 Bars | 1105mm × 2, 1150mm × 2, 1175mm × 2 |
| 5 Bars | 1105mm × 2, 1150mm × 2, 1175mm × 1 |
| 4 Bars | 1105mm × 1, 1150mm × 2, 1175mm × 1 |
| 3 Bars | 1105mm × 1, 1150mm × 1, 1175mm × 1 |
| 2 Bars | 1105mm × 1, 1175mm × 1 |
200 Series
Please note: As the roof profile increases significantly from front to rear, our 200 Series roof rack systems utilise three different crossbar lengths to ensure a precise fit.
- Rear: 1055mm
- Middle: 1085mm
- Front: 1115mm
| Crossbars | Included |
| 6 Bars | 1055mm × 2, 1085mm × 2, 1115mm × 2 |
| 5 Bars | 1055mm × 2, 1085mm × 2, 1115mm × 1 |
| 4 Bars | 1055mm × 1, 1085mm × 2, 1115mm × 1 |
| 3 Bars | 1055mm × 1, 1085mm × 1, 1115mm × 1 |
| 2 Bars | 1055mm × 1, 1115mm × 1 |
Need a Custom Combination?
Need a different combination of cross bar lengths? Simply leave a note at checkout or contact our team before placing your order—we're more than happy to help.
IMPORTANT NOTES
- If you have a GQ Patrol and the gap between the roof and cross bar is extremely minimal, it is likely that the roof skin has separated from the internal roof supports. If this has occurred, we recommend removing the roof lining and re-bonding the roof skin to the support beams before installation.
