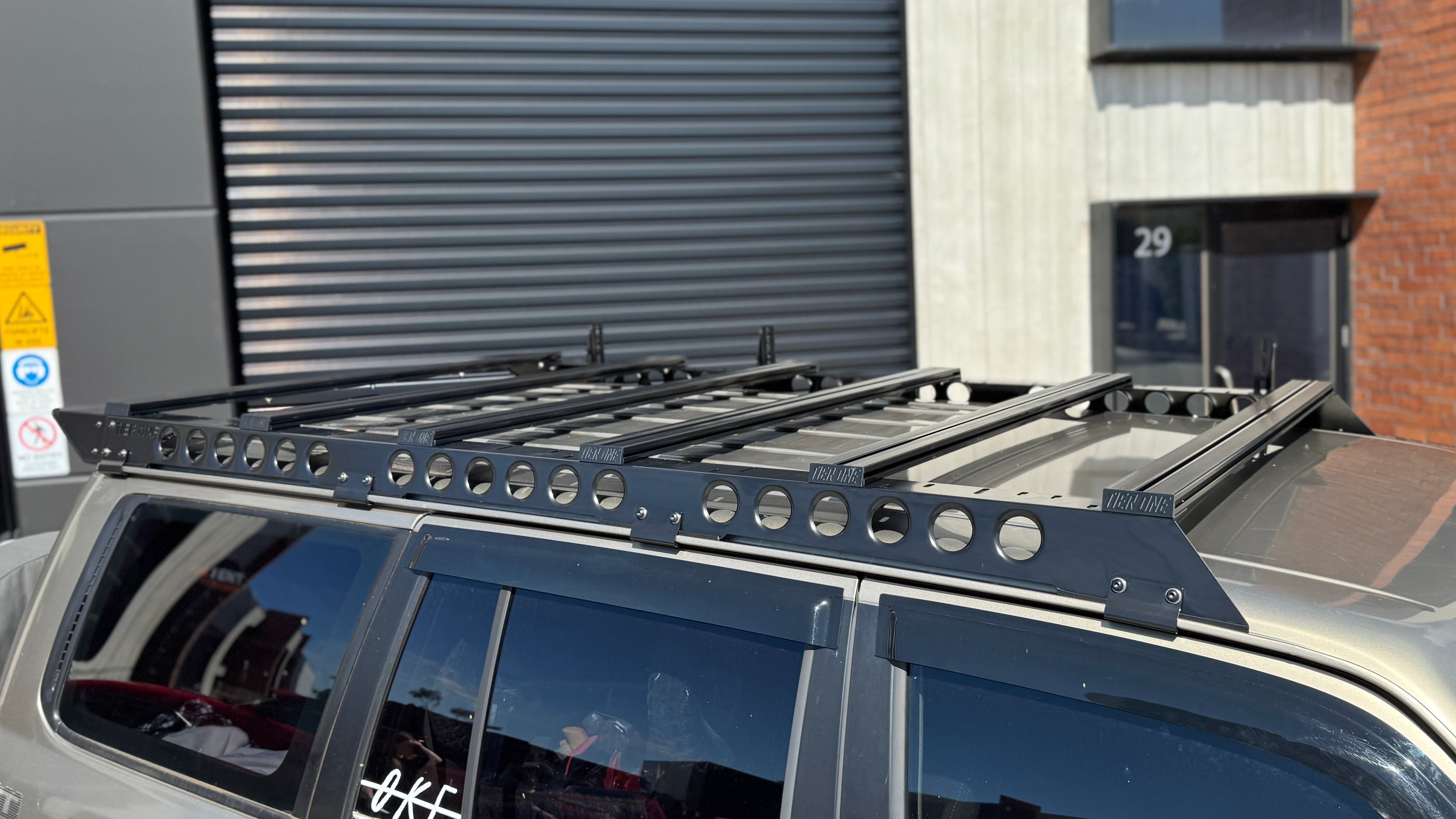

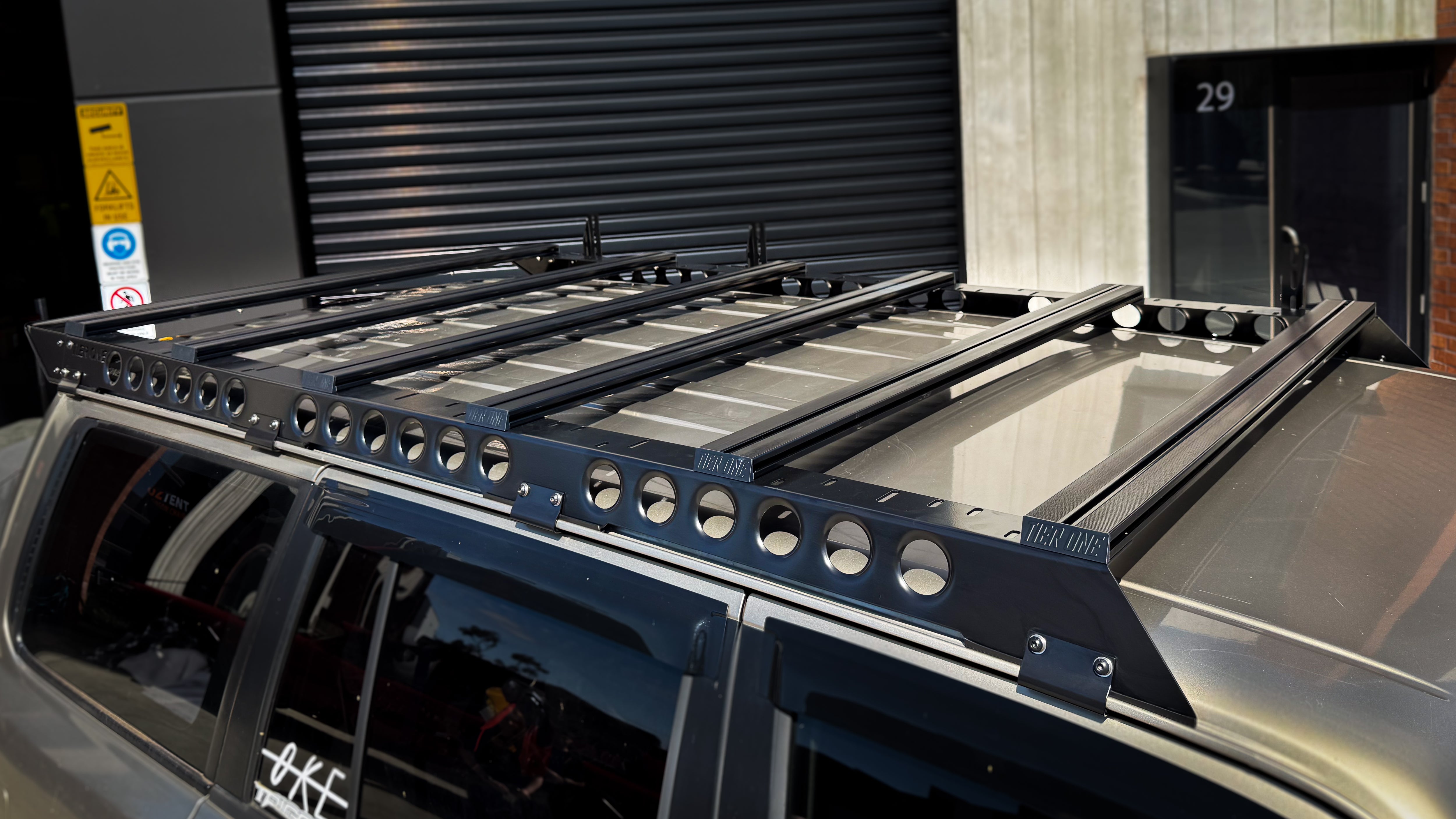

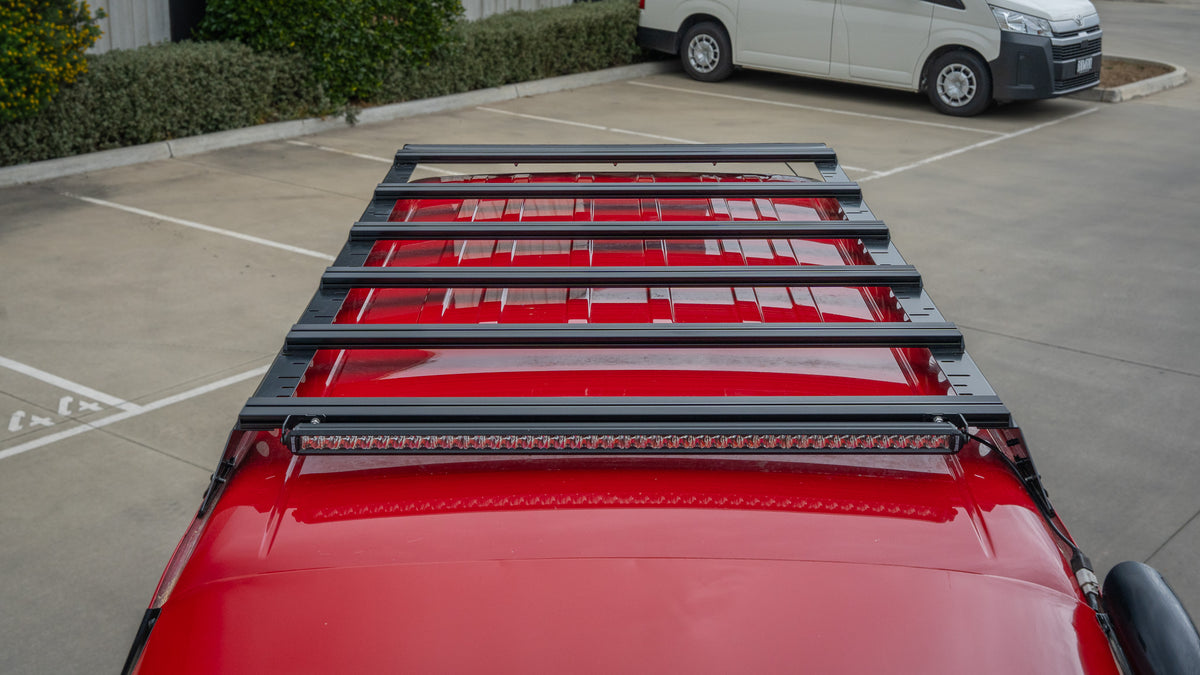

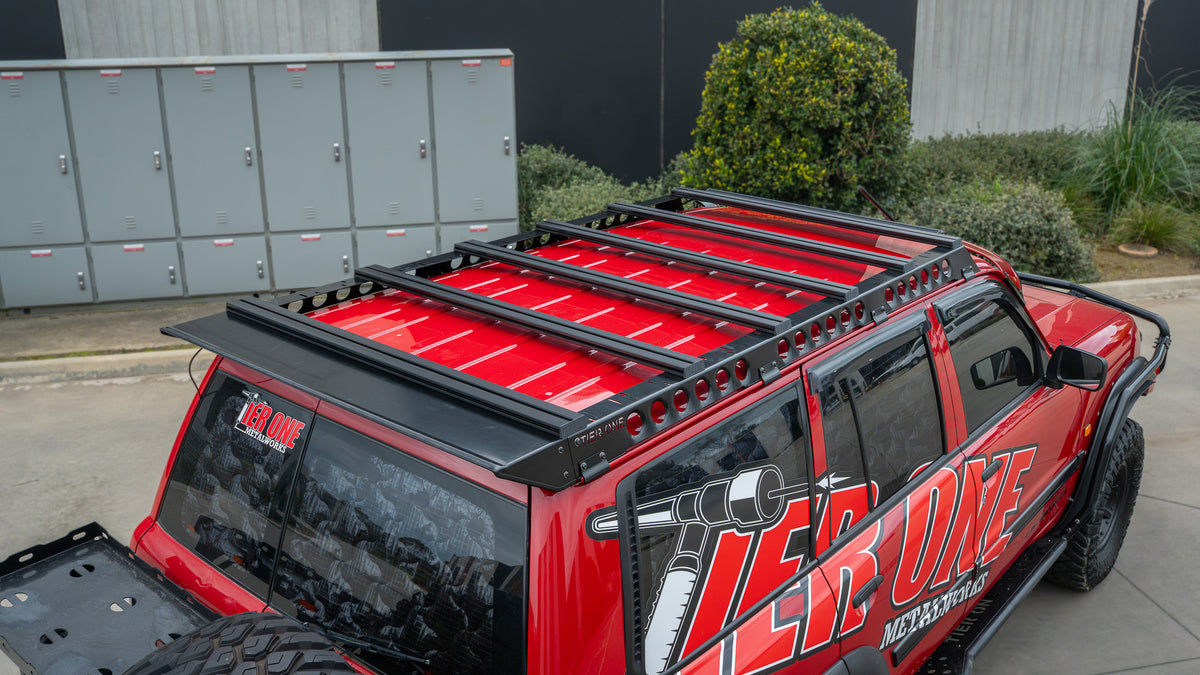

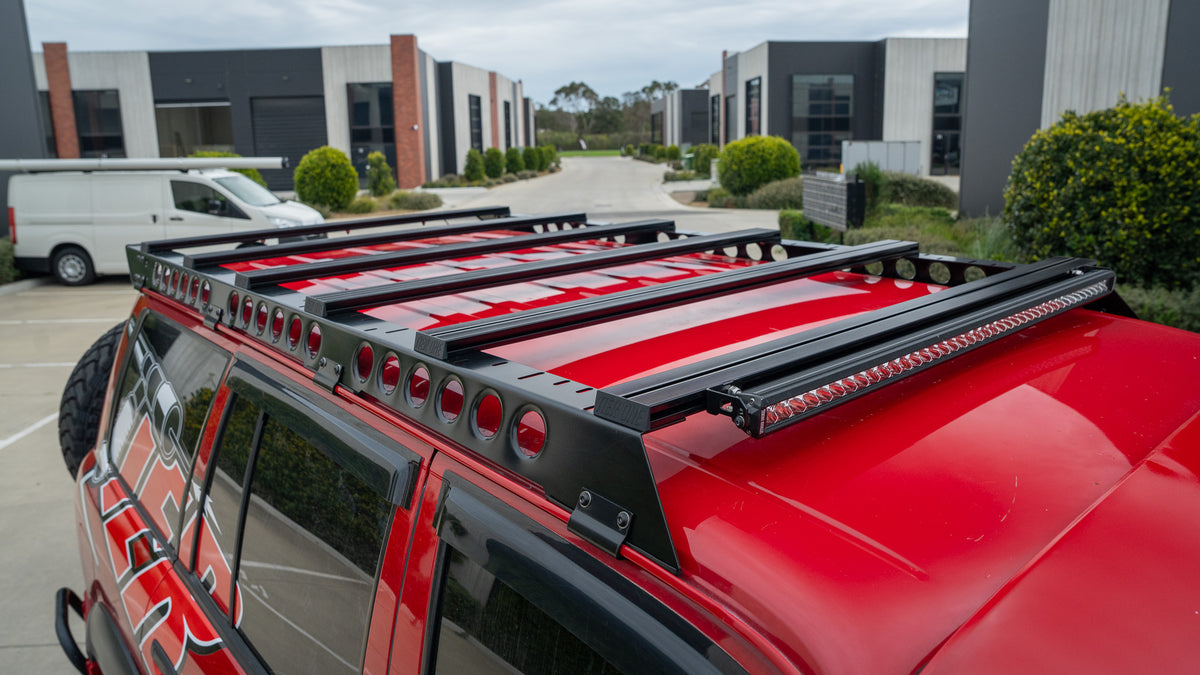

Nissan GU Patrol Roof Rack (HPHD)
Please note the wind deflectors are sold separately.
The Tier One Metalworks Roof Rack (HPHD) is the ultimate slimline solution for the GU Patrol! Designed to be clean, strong, and incredibly versatile. Proudly 100% Australian made and built to withstand harsh touring conditions, this low-profile modular system delivers exceptional strength and durability without unnecessary bulk. After almost two years on the market, our roof rack systems have established themselves as one of Australia's toughest and most versatile slimline mounting systems.
Originally designed for low-profile rooftop tent mounting, this complete roof rack system combines everything you need in one package. Available with your choice of Low Profile Light Duty (LPLD) or High Profile Heavy Duty (HPHD) Crossbars, it can be tailored to suit everything from touring and trade to everyday driving while maintaining the clean, low-profile Tier One look.
Manufactured from premium 304 stainless steel and finished in our signature satin black powder coat, every component is built for maximum corrosion resistance, long-term durability, and a premium finish.
Looking for a different configuration? Every component is available individually, giving you the flexibility to build your ideal setup.
LPLD VS HPHD?
Every Nissan GU Patrol Complete Roof Rack System includes the same Roof Rack Rail Sides and Rear Wing. The only difference is the crossbars you choose and, ultimately, which option best suits your intended setup.
Low-Profile Light-Duty (LPLD)
- Lowest-profile option (Refer to load ratings below)
- Ideal for rooftop tents and everyday touring
- Lightweight 3mm 304 stainless steel construction
- Curved design follows the roofline for the cleanest possible fit
Best suited to customers prioritising a low-profile setup
High-Profile Heavy-Duty (HPHD)
- Highest load capacity (Refer to load ratings below)
- Custom aluminium T-slot extrusion with four-sided M8 T-slots
- Ideal for trade vehicles, heavier touring setups, and accessory mounting
- Greater flexibility for mounting solar panels, recovery boards, awnings, and more
- Best suited to customers requiring maximum versatility and strength
SPECIFICATIONS
- Complete Length: 2400mm (Including rear wing)
- Internal Rail Width (at top of rail): 1135mm (front) - 1120mm (rear)
- External Rail Width (at top of rail): 1265mm (front) - 1250mm (rear)
- Top Of Rail Width: 65mm
- Overall Height: Appx 50mm from the highest point of the roof to the top of the HPHD Crossbars.
- Roof Clearance: Appx 25mm from the highest point of the roof to the bottom of the HPHD Crossbars.
- Material: (See further details & specifications below for details)
- Finish: Satin Black Powder Coat
- Hardware: 304 Stainless Steel
Overall Weight: 38.5kg (Rail sides, rear wing, six crossbars)
Available to purchase in a RAW stainless steel finish. Please contact our team for a quote.
FURTHER DETAILS & SPECIFICATIONS

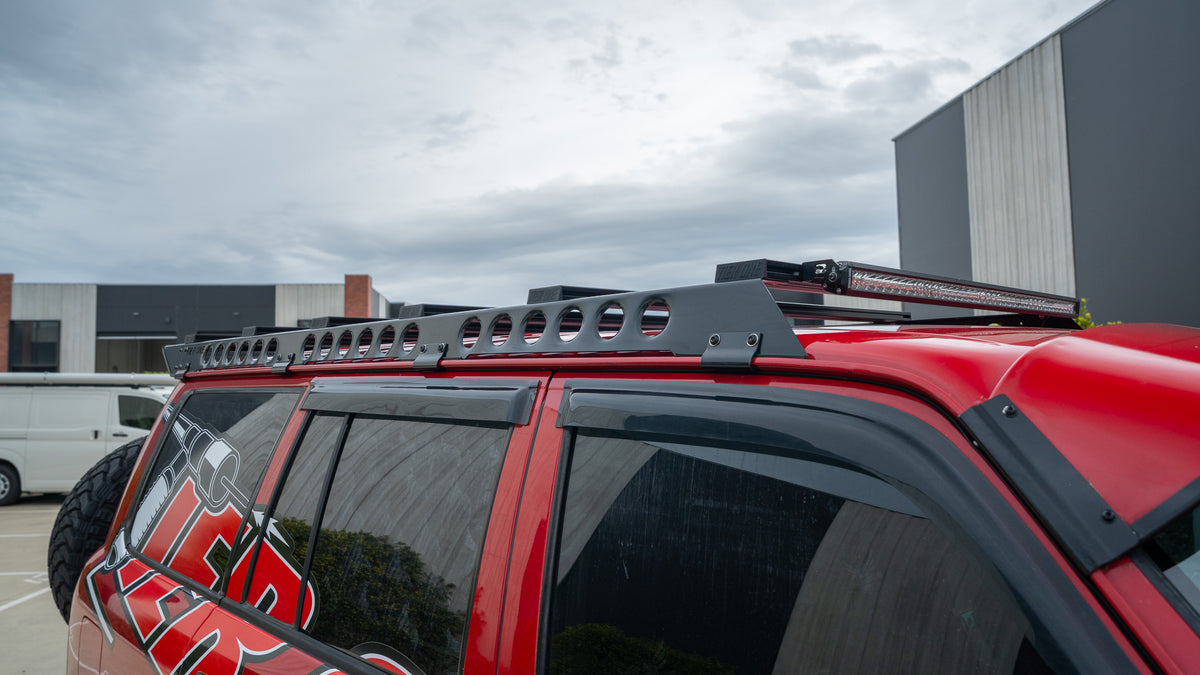

RAIL SIDES
- Suits Nissan GU Patrol Series 1–4
- Clamps directly into the factory gutters
- Manufactured from 3mm 304 stainless steel
- Passenger-side rail features three integrated awning mounting points, compatible with our Rail Mounted Awning Brackets.
- Rail length: 2190mm
Weight: 12.5kg

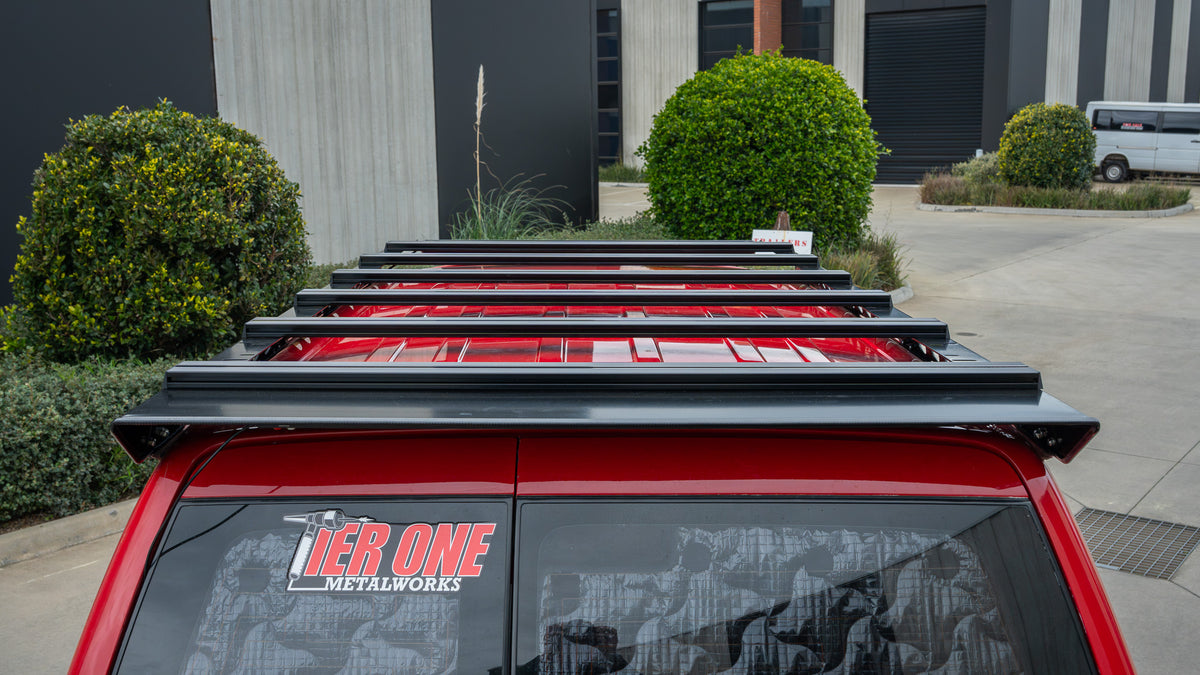

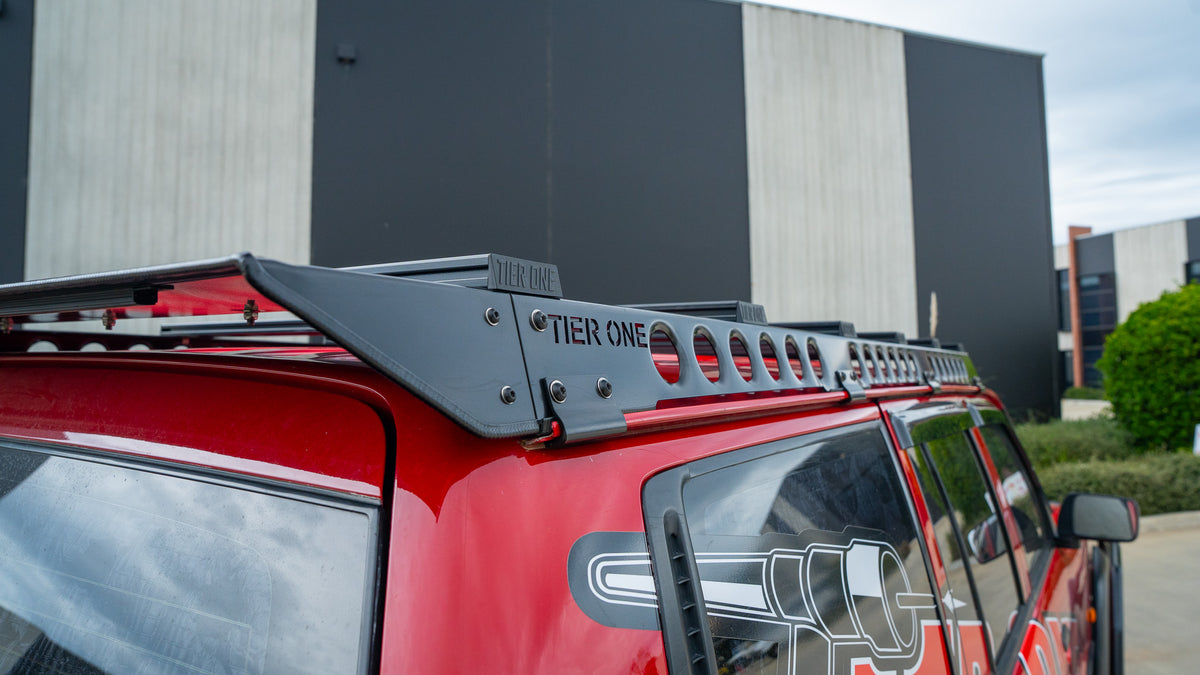

REAR WING
- Helps eliminate the rain gap between your rooftop tent and 270° awning
- Allows compatible 270° awnings to overlap the rear of the vehicle
- Increases rigidity across the rear of the roof rack system
- Folded gutter edge channels water away from your setup
- Additional mounting point for LED lighting and accessories
- Manufactured from 2mm stainless steel
- Weight: 5kg
- Length: 210mm (measured from the end of the rail to the outer edge)
Must be supported by either a crossbar or a directly mounted rooftop tent. One of the included crossbars is pre-tabbed specifically for the Rear Wing
(HPHD) CROSSBARS
(Set of 6 Included)
- Custom-designed 80 × 25mm aluminium extrusion
- Four-sided M8 T-slots for maximum accessory compatibility
- Accepts standard M8 T-slot hardware
- Designed for heavy-duty applications with virtually endless mounting possibilities
- Roof clearance: Appx 25mm
- Total weight (set of 6): 21kg
Need more information? You'll find additional details in the individual product descriptions or simply get in touch with our team—we're happy to help!
FITTING INFORMATION
- For installation instructions and additional information, click the link below to access our dedicated fitting and support page. You can also find installation videos on YouTube and plenty of short how-to videos on Instagram.
- Direct Mount Tent Mounting: This complete roof rack system is designed to be used with crossbars. If you're looking for the lowest possible rooftop tent setup, we recommend purchasing our Roof Rack Rail Sides separately and mounting your tent directly to the rails. Please note that some rooftop tents may require modifications. Need help? Contact our team!
Detailed Installation Instructions available below:
If you're unsure about fitment, compatibility or your setup, get in touch with our team—we're always happy to help.
WHAT'S INCLUDED?
- Nissan GU Rail Sides (Left & Right)
- Nissan GU Rear Wing
- 6 X High Profile Heavy Duty (HPHD) Crossbars
- 8 X Rail Clamps and Rubbers
- 2 X Wing Mounting Plates
- Stainless Steel Mounting Hardware Kit (Including Rubber Pinch weld)
LOAD RATINGS
Load rating applies only when installed with both side rails and six crossbars.
Nissan GU Patrol Load Ratings: | Low-Profile Light-Duty Channel x6: | RHS Tube Heavy Duty Crossbars x6: | High-Profile Heavy-Duty T Channel x6: |
| Manufacturers Dynamic Roof Load Rating: | 100kg | 100kg | 100kg |
| Off-road Dynamic Rating: | 80kg | 90kg | 100kg |
| Static Rating: | 260kg | 270kg | 280kg |
DISCLAIMER
- Tier One Metalworks accepts no liability for any loss, damage, or injury resulting from the incorrect installation, misuse, or overloading of this product.
- Always install and use this product in accordance with the supplied instructions and your vehicle manufacturer's load ratings and recommendations.
