Roof Top Tent Heavy Duty Adjustable Awning Brackets
Please note the fly pole raiser mounts are sold separately.
Tier One Metalworks Adjustable Roof Top Tent Awning Brackets have been designed from the ground up to provide an exceptionally strong and versatile mounting solution for roof top tents.
Unlike many awning brackets on the market that simply bolt directly to the side of the tent, our unique wrap-around end design captures the tent base and distributes loads across a much larger area. This greatly increases rigidity and helps reduce the risk of mounting bolts pulling through the tent base when subjected to heavy loads, corrugations, rough tracks or strong winds.
Manufactured from 3mm 304 stainless steel and powder coated in a durable satin black finish, these brackets are built to withstand Australia's harsh conditions while maintaining a clean, low-profile appearance.
Designed around the popular CSS range of roof top tents, the slotted mounting system offers a high level of adjustability and compatibility with a wide range of roof top tents and awning combinations. Whether you're fitting a 180° awning, 270° awning or a traditional side awning, the adjustable design allows you to achieve the ideal mounting position.
Built for serious touring, these are the ideal solution for anyone wanting a stronger and more secure awning mounting system for their roof top tent.
FEATURES
- Unique wrap-around end brackets for increased strength and load distribution
- Fully adjustable and slotted mounting holes
- Designed around CSS roof top tents
- Australian Designed and Manufactured

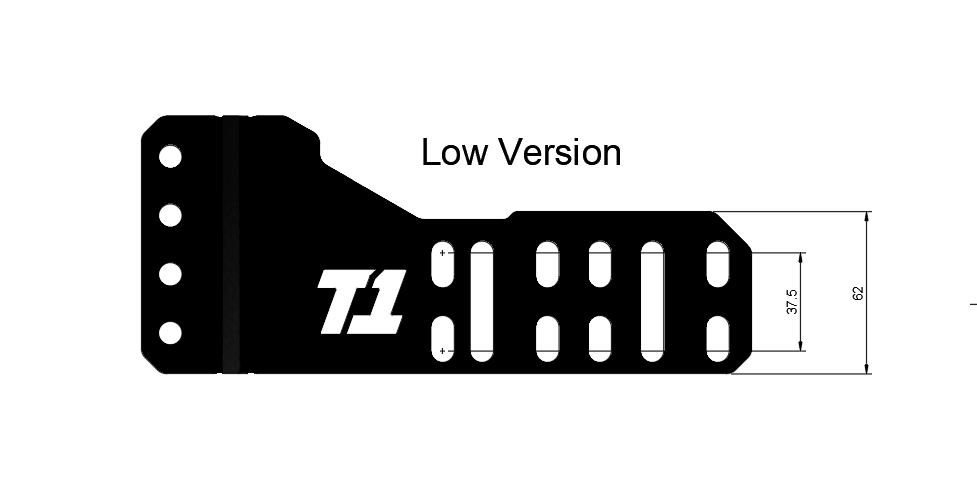

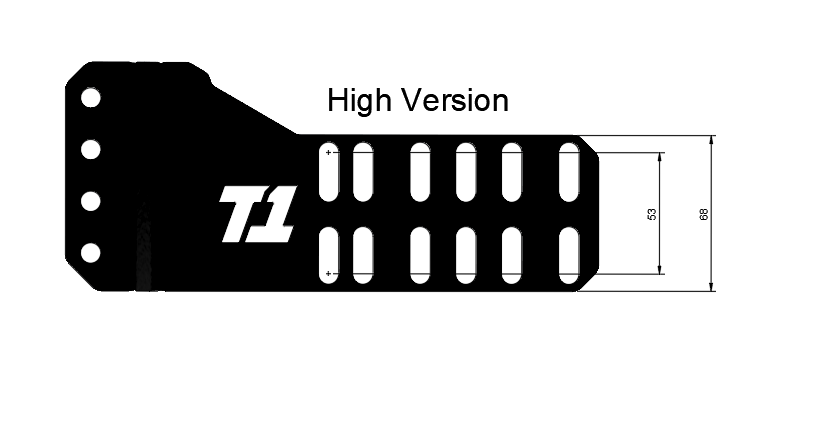

SPECIFICATIONS
- Width: 95mm (bracket facing connecting to awning)
- Height: 195mm
- Depth: 45mm (from tent to bracket face)
- Material: 3mm 304 Stainless Steel
- Finish: Satin Black Powder Coat
FITTING INFORMATION
- Compatible with a wide range of roof top tents and awnings
Detailed Installation Instructions available below:
WHAT'S INCLUDED?
- 3 x Roof Top Tent Adjustable Awning Brackets (X1 corner bracket, X2 standard brackets)
- Stainless Steel Mounting Hardware Kit
DISCLAIMER
Use this product at your own risk. Tier One Metalworks accepts no liability for any loss, damage, or injury resulting from the installation or use of this product.
These brackets are not load-rated. It is the customer's responsibility to ensure the brackets are installed correctly and are compatible with their specific awning and vehicle setup before use.
While these brackets are not officially load-rated, they have been designed to comfortably support the majority of standard side awnings and 270° awnings currently available on the market when installed correctly.
