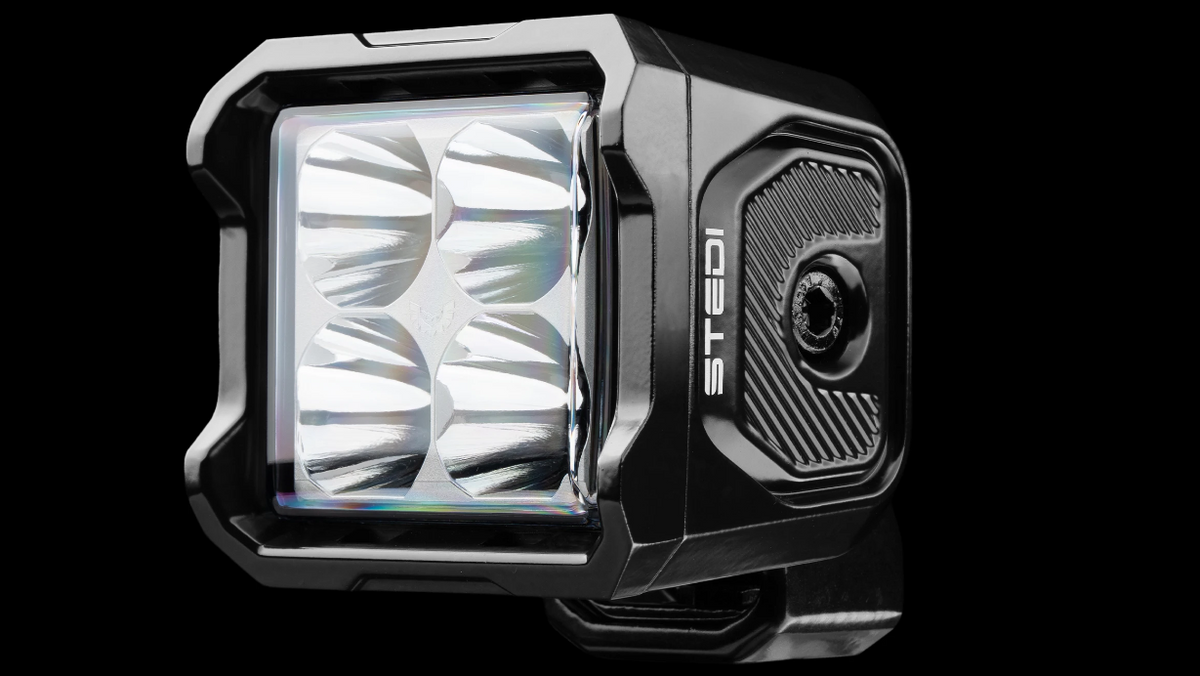

Stedi G4 Black Spot Work Light
Feel the full force of the STEDI™ G4 — Spot. Delivering a powerful concentration of light optimised for beam distance and intensity, the G4 — Spot is a multipurpose auxiliary light that is both IP68 & IP69K and CISPR 25 C3 rated. Flexible mounting options ensure suitability for a range of applications — from worksite and agricultural uses, to front facing motorcycle and ATV lighting. Engineered with advanced CREE XP-L2 LED technology, the G4 — Spot produces a powerful, smooth light beam that reaches over 235 metres in length, while the optimised reflector radiates an immediate zone of 28 metres — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. Pushed to the limit, the STEDI™ G Series sets a new standard in work and task light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP68 & IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
FEATURES
- 4x CREE XP-L2 LEDs
- IP68 & IP69K Rated
- CISPR 25 C3 Certified
- Shock Tested At 30Gs & Vibration Tested At 5Gs Of Force

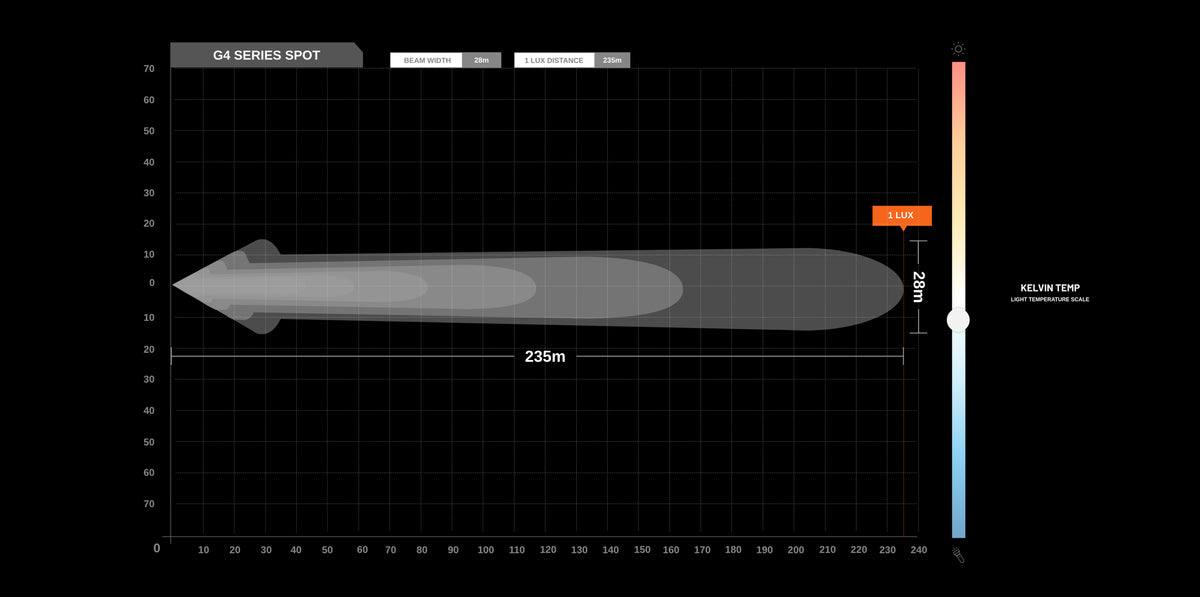

- 1 LUX @ 235m Length
- 1 LUX @ 28m Width
- STEDI™ Cover Included
- Stainless Steel Hardware & Bracket Included
- Premium AkzoNoble™ Powder Coating
SPECIFICATIONS
| LED POWER OUTPUT | 4 x 10w LEDs |
| LUMENS RAW | 4000LM |
| LUMENS TESTED | 3000LM |
| OPERATING VOLTAGE | 12v & 24v Compatibility |
| IP RATING | IP68 & IP69K |
| CISPR RATING | R25 C3 |
| LED | CREE XP-L2 |
| 1 LUX (METRES) | 235m |
| COLOUR TEMPERATURE (CCT) | 5700K |
| MATERIAL | Die Cast Aluminium Housing |
| LENS | Polycarbonate |
| BOLTS AND FITTINGS | Included |
| BEAM TYPE | Spot |
| LIFE SPAN | 50,000 Hours |
| AMP DRAW | 3.2A @ 13.5v |
| WEIGHT | 1.0kg |

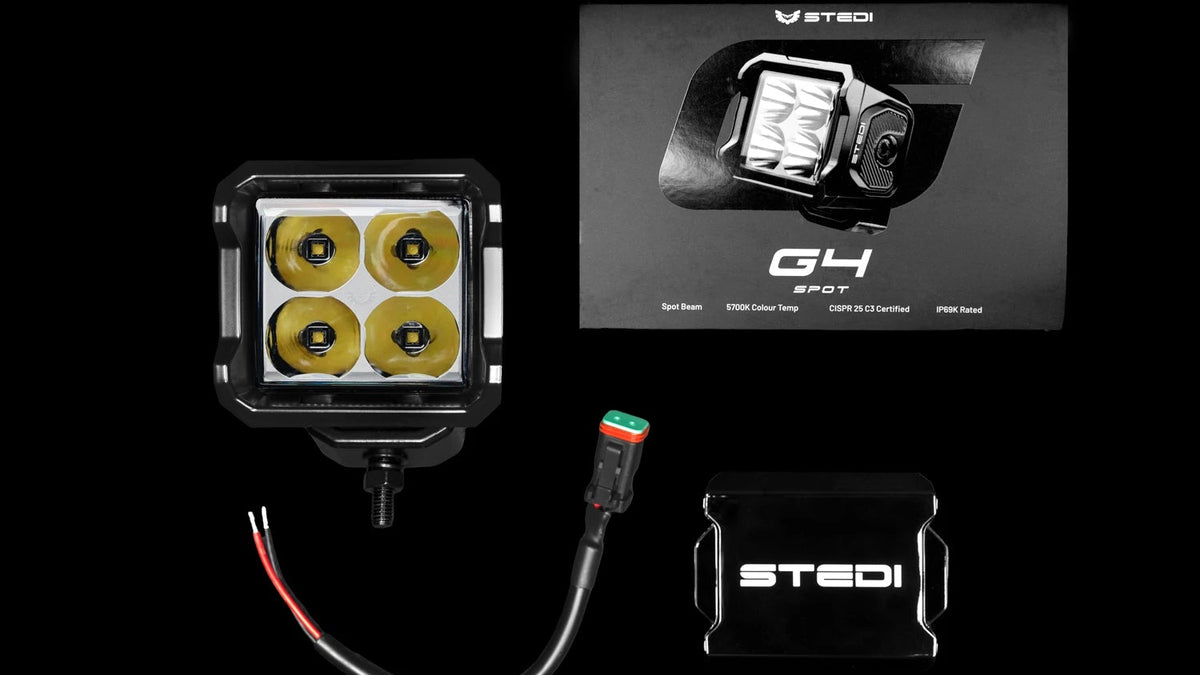

WHAT'S INCLUDED?
- 1 x STEDI™ G4 Spot Light
- 1 x STEDI™ Black Cover
- 1 x Stainless Steel Hardware
- 1 x Stainless Steel Bracket
- 1 x 2 Pin Male Connector
WARRANTY
Please refer to the STEDI website for details.
Disclaimer: This product is supplied by Tier One Metalworks but is manufactured and warranted by a third-party supplier.
